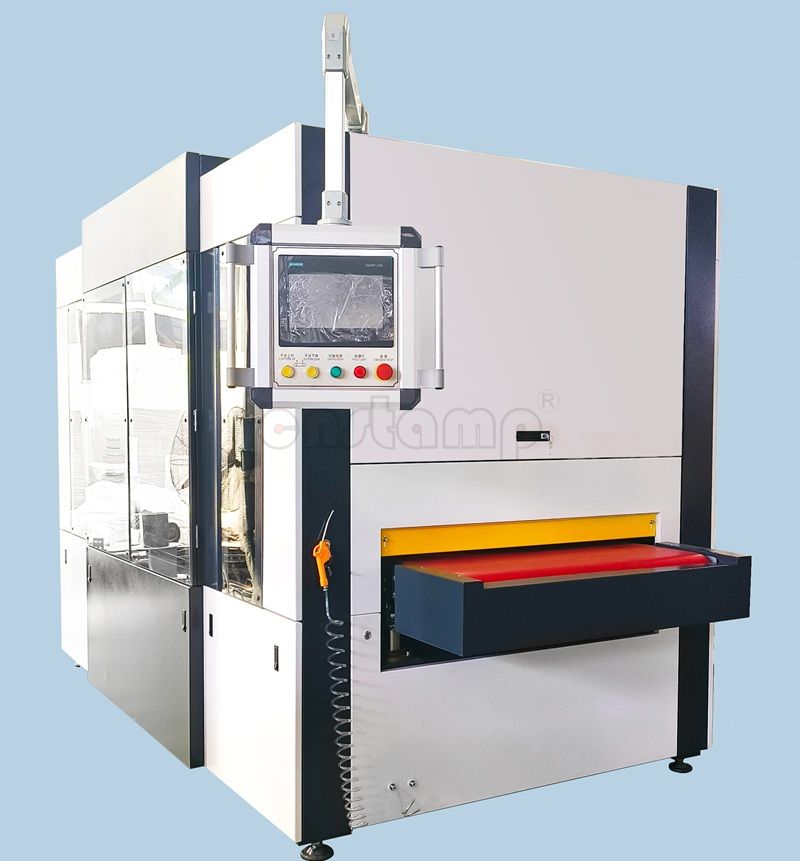

Deburring Machine
Surface drawing, chamfering, slag removal, flanging
This equipment is a combination model of dry abrasive belt and universal roller brush. Mainly used to deal with deburring and chamfering functions;
Workpiece surface burr treatment;
Deburring of workpiece edges and holes;
Parameters
1. Maximum processing width: 1600mm
2. Processing thickness: 0.5-100 mm
3. Minimum processing size: ≥50×50 mm
4. Feeding speed: 0.5-6m/min
5. Roller brush speed: 8-20r/s
6. Revolution speed: 8-12r/s
7. Rated power: about 88KW
8. Abrasive belt size: 2200×1620 mm
9. Sand roller size specifications: Φ300×400 mm
10. Worktable height: 900-980mm
11. Equipment noise: ≤ 85 dB
12. Dust removal efficiency: ≥ 85%
13. Required vacuum air volume: 5000 cubic meters/hour
14. Control system: Siemens PLC CNC
15. Weight: about 7.5 T
16. Chamfer range: R (0.1-1.0)
17. Processing and grinding consumables: abrasive belts and abrasive rollers of various particle sizes

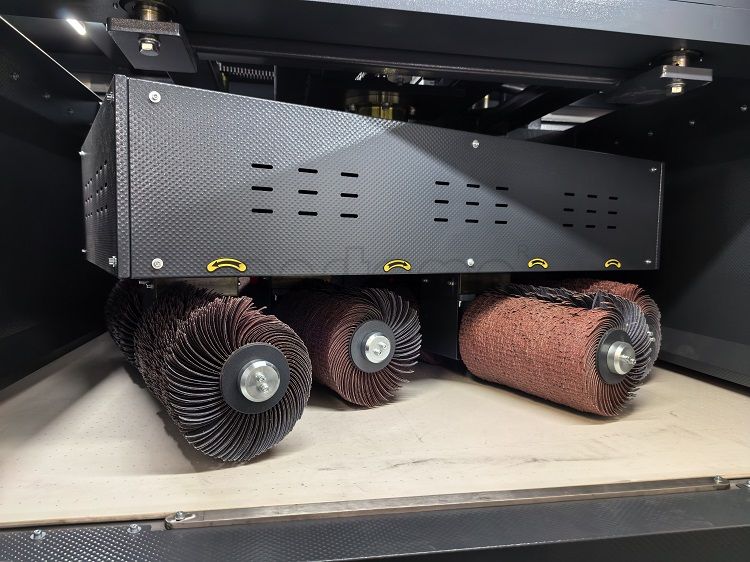

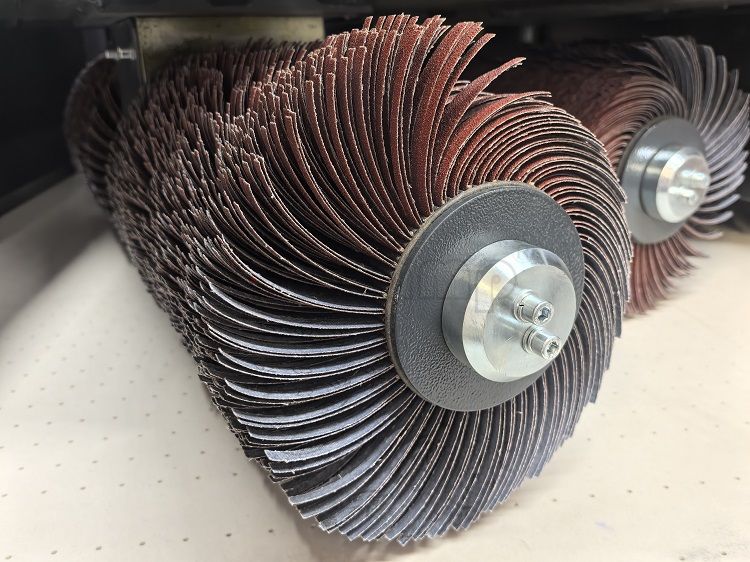

Brush rollers

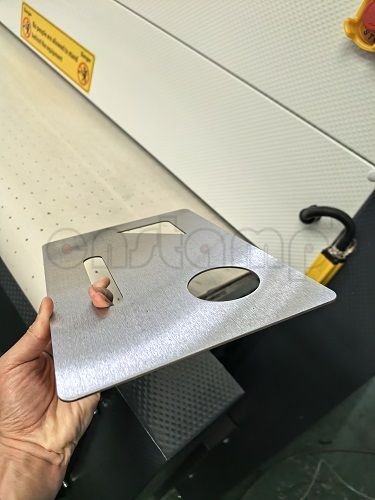

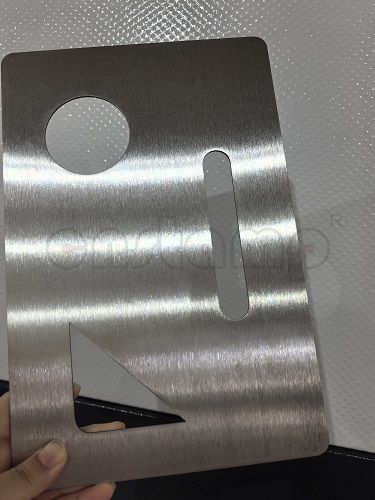

Work piece
