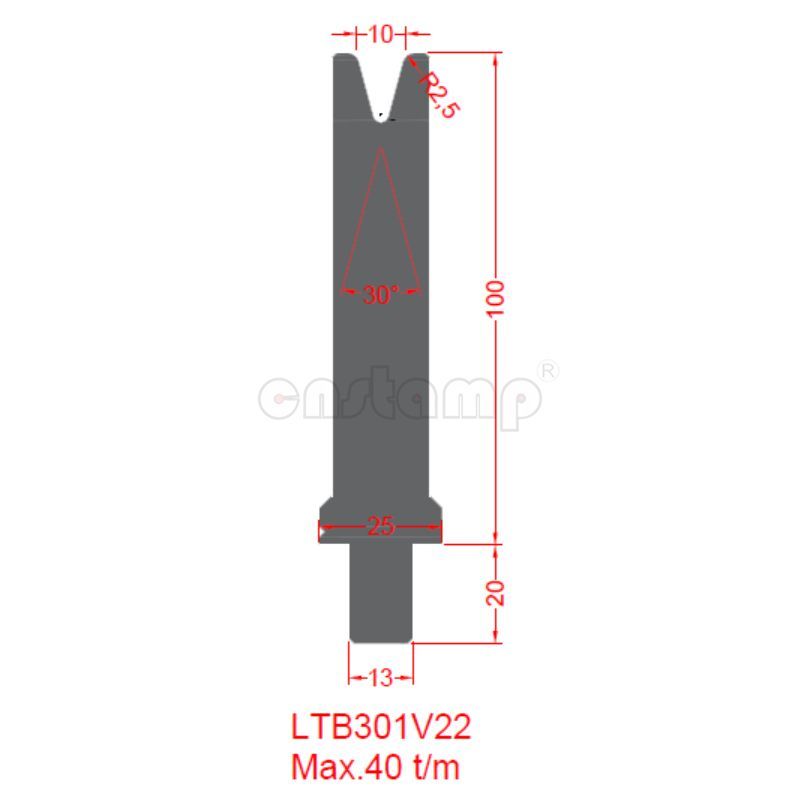

30 degree V10mm H100mm
Material 42CrMo/55SiCr Max. 40t/m
Product Parameters
| No. | LTB301V22 |
| α | 30° |
| V | 10mm |
| Working Height | 100mm |
| Sectionalized | L550mm |
Compatible
Compatible with Trumpf press brakes and press brakes equipped with Wila style clamp system, base size 13X20mm
Tool Lengths:
L500/508/510/515mm full length
L300mm
L200mm
L550mm sectionalized In 10 pieces (25+25+30+35+40+45+50+100+200mm)
