Custom Press Brake Tools for Precision Bending

In the world of sheet metal fabrication, achieving precise bends is essential for product quality, efficiency, and consistency. Off-the-shelf press brake tools often cannot meet unique project requirements. This is where custom press brake tools come into play, offering tailored solutions for complex bending applications.

Why Choose Custom Press Brake Tools?

Custom press brake tooling is designed to match your specific material type, thickness, bend angle, and part geometry. Standard tooling may not provide the accuracy or flexibility required for specialized components, especially in industries like aerospace, automotive, and high-end appliance manufacturing.

Benefits include:

• High Precision Bending: Tailored tooling ensures exact angles and radii, minimizing material waste.

• Improved Efficiency: Custom designs reduce setup times and allow multiple bends in a single operation.

• Versatility: Tools can be optimized for different sheet metals, including aluminum, stainless steel, and high-strength alloys.

• Extended Tool Life: Engineered for durability with high-quality tool steel or carbide materials.

Types of Custom Press Brake Tools

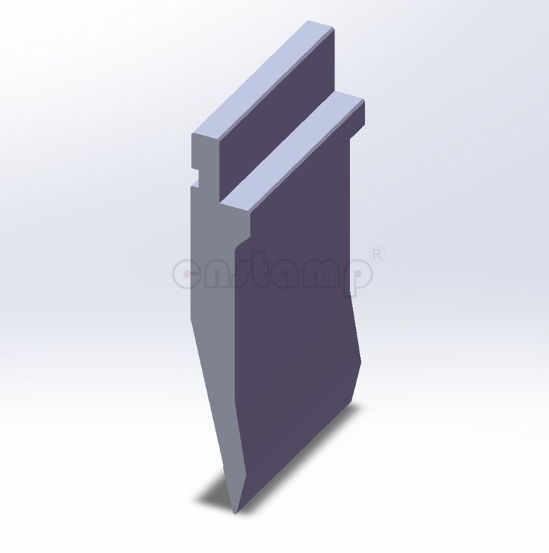

1. Custom Punches

Punches can be designed with specific profiles or radii to match the desired bend and prevent interference with previously formed sections.

2. Custom Dies

Dies can be engineered for standard V-grooves, hemming operations, offset bends, or unique part geometries.

3. Combination Tooling

Custom combination tools allow multiple bends in a single stroke, improving productivity and ensuring consistent quality across complex parts.

4. Specialty Tooling

Specialty solutions include gooseneck punches, U-dies, and air-bending dies, each crafted to solve unique bending challenges.

Factors to Consider for Custom Tooling

1. Material Characteristics: Thickness, hardness, and alloy type influence tooling design.

2. Bend Angle and Radius: Precise calculations prevent cracking or deformation.

3. Press Brake Capacity: Tonnage limits determine the feasibility of tooling size and complexity.

4. Production Volume: High-volume runs may require more durable or coated tooling to maintain performance.

5. Surface Finish Requirements: Smooth, polished surfaces may require specialized coatings to prevent marks.

Rules for Successful Custom Tooling Selection

• Collaborate with Experts: Work with experienced tooling manufacturers for optimal design.

• Verify Compatibility: Ensure punch and die profiles match your press brake machine.

• Plan for Maintenance: Easy-to-maintain designs reduce downtime and preserve accuracy.

• Test and Iterate: Prototyping custom tools ensures proper fit and performance before full production.

Conclusion

Custom press brake tools are essential for achieving precision bending in demanding applications. By choosing tailored punches, dies, and specialty tooling, manufacturers can maximize efficiency, minimize material waste, and maintain the highest quality standards.
