Sep. 14, 2026
In press brake bending, the V-die opening is one of the most influential tooling dimensions. It affects the amount of force required to form the sheet, the resulting inside bend radius, material deformation, springback, and ultimately the consistency of the finished part.
A die opening that is too narrow can increase bending force and place unnecessary stress on the tooling. A die opening that is too wide can reduce forming pressure but may produce a larger inside radius than the part design requires. The relationship becomes even more important when processing different material thicknesses, high-strength steels, stainless steel, or parts with tight dimensional tolerances.
For this reason, selecting a V-die should not be based on material thickness alone. Material properties, bending method, required inside radius, bend angle, flange dimensions, machine capacity, and tooling limitations should all be considered together. Cnstamp's tooling guidance similarly identifies die opening, material thickness, bend radius, tooling geometry, and press brake tonnage as interconnected factors in tooling selection.
The die opening, often called the V-opening or V-width, is the distance across the top of the V-shaped cavity in a press brake lower die.
During air bending, the sheet rests on the two shoulders of the V-die while the punch pushes the material downward. The sheet is plastically deformed around the punch, while the material between the die shoulders forms the bend.
The width of this V-opening determines how the material is supported and how far it must travel during forming.
In practical terms:
A smaller V-opening provides closer support to the workpiece.
A larger V-opening allows the material to span a greater distance between the die shoulders.
A smaller opening generally requires more bending force.
A larger opening generally reduces the required force.
The die opening also influences the natural inside radius produced during air bending.

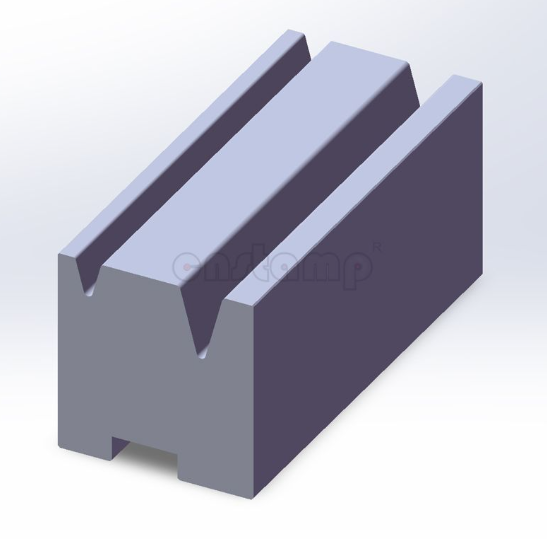

Cnstamp offers dies with different V-openings, including multi-V configurations and application-specific designs, allowing fabricators to select different openings for different materials and bending conditions.
The relationship between die opening and bending performance comes from the geometry of the forming process.
In air bending, the material is not pressed completely against the bottom of the die. Instead, the punch forces the sheet into the V-shaped opening while the two sides of the material rotate around the die shoulders.
Changing the V-opening changes the geometry of that deformation.
A smaller opening means the material is supported closer to the bend line. The forming process becomes more concentrated, which generally increases the required force.
A larger opening spreads the deformation over a wider region. This usually lowers the required bending force, but it also changes the resulting bend radius.
This creates an important trade-off:
Smaller V-opening → higher force and potentially smaller bend radius
Larger V-opening → lower force and potentially larger bend radius
The correct balance depends on the material, thickness, bending method, and required part geometry.
One of the most important reasons to select the correct V-die is controlling bending force.
Press brake tonnage is the force required to deform the material. The actual force depends on several variables, including:
Material tensile strength
Material thickness
Bend length
V-die opening
Bending method
Bend angle
Inside bend radius
Tool geometry
As a general rule, increasing the V-opening reduces the force required for air bending, while decreasing the opening increases the required force.
This is why a fabricator should not automatically choose the smallest available V-die simply because it appears to provide more control.
An undersized opening can increase the load substantially and may exceed the allowable capacity of the machine or tooling.
Cnstamp's published tooling guidance specifically notes that the total bending force must remain within the press brake's rated capacity and that larger V-openings are generally associated with thicker materials and higher-load applications.
For many conventional air-bending applications, manufacturers use empirical tonnage formulas rather than relying on geometry alone.
A simplified form can be expressed as:
Bending force ∝ material strength × thickness² × bend length ÷ V-opening
The exact coefficient depends on the formula, material properties, bending method, and units being used.
This equation is useful for understanding the trend rather than calculating a final production setting:
Increasing thickness has a strong effect on tonnage.
Increasing material strength increases tonnage.
Increasing bend length increases tonnage.
Increasing V-opening generally reduces tonnage.
For actual production, the tooling manufacturer's tonnage chart or validated bending-force calculation should be used rather than relying on a generic equation.
The V-opening also has a major influence on the inside radius in air bending.
As the V-opening becomes wider, the material generally forms over a larger effective radius. A narrower opening generally produces a smaller natural inside radius.
This is particularly important when the engineering drawing specifies a particular bend radius.
For example, suppose two dies are used to bend the same sheet:
Die A has a relatively narrow V-opening.
Die B has a significantly wider V-opening.
Even if the same punch is used, the resulting inside bend radius may be different.
This means that changing the die without changing the CNC program or bend compensation parameters can change the final part geometry.
Cnstamp's product information likewise identifies V-opening as a major factor determining the natural inside bend radius in air bending.
Die opening does not independently determine the final bend angle, but it influences the forming conditions that affect angle consistency.
In air bending, the CNC press brake controls punch depth to achieve the target angle. After the load is released, the material experiences elastic recovery, commonly known as springback.
The amount of springback depends on factors such as:
Material grade
Yield strength
Thickness
Inside radius
Bend angle
Die opening
Bending method
A change in V-opening can therefore change the relationship between punch depth and final bend angle.
If a production line changes from one V-die to another without properly adjusting the bending program, operators may observe:
Different final angles
Increased angle variation
Different bend radii
More setup corrections
Increased scrap during first-piece production
This is one reason why consistent tooling is important for repeat production.
Springback occurs because sheet metal does not remain entirely plastically deformed after the bending force is removed.
Higher-strength materials generally have greater springback tendencies than softer materials. Geometry also affects how much elastic recovery occurs.
The die opening can influence this behavior because it changes the deformation geometry and resulting inside radius.
A wider V-opening generally creates a larger inside radius, while a smaller opening tends to create a tighter radius. Since bend radius and material properties influence springback, changing the die opening can affect the amount of angle compensation required.
This is especially important when bending:
High-strength steel
Stainless steel
Aluminum alloys
Thin sheet with tight angle tolerances
Components requiring repeatable angles across multiple batches
Cnstamp's tooling guidance recommends considering material hardness, thickness, bend radius, bend angle, and tolerance requirements together when selecting tooling.
A commonly cited guideline for mild steel air bending is:
V-opening ≈ 8 × material thickness
For example, a 2 mm mild-steel sheet may commonly be paired with a V-opening around 16 mm.
However, this should be treated as a starting point rather than a universal rule.
Cnstamp's published tooling-selection guidance also gives approximately 8× material thickness as a general guideline for mild steel while noting that adjustments may be required for different alloys and bending requirements.
The actual selection may need to change because of:
A high-strength steel cannot necessarily be treated like mild steel of the same thickness.
Higher-strength materials require greater forming force and may require different tooling geometry to maintain acceptable tool loading and part quality.
As thickness increases, the required bending force rises significantly.
The die opening must therefore be selected together with the press brake's tonnage capacity and the tool's allowable load.
If the drawing specifies a particular inside radius, the natural radius associated with the selected V-opening must be considered.
A longer bend requires more total force than a short bend made from the same material and thickness.
Air bending, bottoming, and coining do not produce the same relationship between die geometry and forming force.
The die-selection strategy therefore needs to match the actual forming process.
Using a V-opening that is too small can create several problems.
The most immediate concern is increased bending force.
If the required force exceeds the machine's capacity, the operation becomes unsafe and may damage the press brake or tooling.
A narrow die concentrates the forming load over a smaller area.
This can increase stress on the die shoulders and punch, especially when processing thick or high-strength materials.
Repeated overload conditions can accelerate wear or contribute to deformation, chipping, or other tooling damage.
A narrow die can produce stronger contact pressure at the die shoulders, which may leave marks on sensitive materials.
If the tooling is operating too close to its load limits, small variations in material properties or thickness can create greater production variability.
A die that is too wide creates a different set of problems.
The most obvious effect is often a larger natural bend radius.
If the design requires a relatively tight radius, the finished component may no longer match the drawing.
A larger V-opening changes the position and deformation geometry of the sheet during bending.
This can affect flange dimensions and bend allowance.
When the selected V-opening is far outside the normal range for the material and application, achieving stable production parameters may become more difficult.
The workpiece must have sufficient flange length to sit properly on the die shoulders.
For parts with very short flanges, a wide V-opening may not provide adequate support.
Therefore, die opening should always be evaluated against the actual part geometry rather than material thickness alone.
Minimum flange length is an often-overlooked consideration in die selection.
During bending, the workpiece must contact the die shoulders properly. If the flange is too short relative to the selected V-opening, the sheet may not be adequately supported.
This can result in:
Unstable positioning
Inconsistent bend angles
Edge deformation
Difficulty achieving repeatable dimensions
Potential interference between the workpiece and tooling
For parts with short flanges, special tooling or a different V-opening may be required.
This is one reason why a tooling supplier should receive the actual part drawing when a component has unusual geometry or tight tolerances.
| Factor | Narrower V-Opening | Wider V-Opening |
|---|---|---|
| Required tonnage | Generally higher | Generally lower |
| Natural inside radius | Generally smaller | Generally larger |
| Tool loading | Higher | Lower |
| Die shoulder pressure | Higher | Lower |
| Thick-material suitability | May require higher tool capacity | Often more suitable |
| Tight bend radius | More favorable | Less favorable |
| Short flange applications | May offer better support | Can require more flange length |
| Springback behavior | Depends on material and geometry | Depends on material and geometry |
| Surface marking risk | Can be higher | Often lower |
| Machine capacity requirement | Higher | Lower |
The table shows general trends rather than absolute rules. Actual bending performance depends on material, tooling geometry, bending method, and machine conditions.
The same die opening should not automatically be used for every material of the same thickness.
Mild steel is often used as the reference material for general air-bending calculations.
The commonly cited 8× thickness guideline is frequently associated with mild-steel applications, but actual production parameters should still be validated.
Stainless steel generally has different strength and springback characteristics from mild steel.
As a result, the same thickness may require different force and process settings.
Aluminum alloys can have different forming behavior depending on alloy and temper.
Surface marking and cracking considerations may also affect tooling selection.
High-strength steels can impose significantly higher loads than conventional mild steel.
For these applications, tooling strength, allowable load, machine tonnage, and suitable V-opening become particularly important.
Cnstamp specifically notes that harder materials such as stainless steel and high-strength alloys may require larger die openings and stronger punches to avoid excessive tool wear or deformation.
Selecting a V-opening based only on a theoretical bending radius is not enough.
The die itself has a maximum allowable load.
The press brake also has a maximum tonnage.
The punch has its own load limitations.
All three need to be considered together.
For example, a thick high-strength plate may theoretically be bendable using a certain V-opening, but the selected punch or die may not be rated for the resulting force.
For heavy-duty applications, the tooling specification should therefore include allowable tonnage per meter or the manufacturer's applicable load rating.
Cnstamp's punch product information, for example, lists maximum load capacities for specific tooling models, demonstrating why tool geometry and allowable load must be evaluated together.
The effect of V-opening also depends on the bending method.
Air bending is the most flexible method for general production because the same V-die can often produce multiple bend angles through different punch depths.
Here, V-opening has a particularly strong influence on the natural inside radius and bending force.
In bottoming, the material is pressed more closely against the die profile.
The tooling geometry and material contact conditions differ from air bending, so force and tooling selection should be calculated accordingly.
Coining involves much higher localized forming pressure and is used for specific applications requiring highly controlled geometry.
It should not be treated as simply a higher-force version of air bending.
The correct tooling and machine capacity must be selected specifically for the forming method.
A practical selection process can follow these steps.
Record:
Material grade
Tensile strength
Yield strength where relevant
Thickness
Surface requirements
Determine:
Bend angle
Inside radius
Bend length
Minimum flange length
Part tolerance
Identify whether the process uses:
Air bending
Bottoming
Coining
Another specialized forming method
Use an appropriate bending-force formula, tooling manufacturer's chart, or validated production data.
Do not rely solely on material thickness.
Confirm that:
Required force is below machine capacity.
Punch load is within its rating.
Die load is within its rating.
Tool length and loading conditions are appropriate.
Make sure the selected opening works with:
Flange dimensions
Part depth
Previously formed sections
Required bend radius
Clearance around the punch and die
For precision production, the first part should be checked for:
Bend angle
Inside radius
Flange dimensions
Overall part dimensions
Surface condition
If necessary, adjust the CNC bending program or tooling combination before beginning full production.
Thickness is important, but it is only one parameter.
Two materials with identical thickness can require different tooling because their strength and forming behavior differ.
A smaller V is not automatically better.
It can increase tonnage, tooling stress, and surface pressure.
If the drawing specifies a particular radius, the natural radius generated by the selected V-opening must be considered.
Even if a particular die can theoretically produce the required bend, the press brake must have sufficient capacity.
Changing the V-opening can change the bending geometry and therefore the relationship between punch depth and final angle.
The machine may have sufficient tonnage while the specific punch or die does not have sufficient allowable load.
This distinction is particularly important in heavy-duty bending.
For high-volume or repeat production, consistency is as important as initial tooling selection.
If the same part is produced using different V-openings between batches, the resulting bend radius, forming force, and angle compensation may change.
Standardizing die openings for recurring part families can help reduce:
Setup time
First-piece adjustments
Angle variation
Operator dependence
Scrap
Tooling changes
Cnstamp's tooling range includes multi-V dies designed to provide different V-openings within a single tooling configuration, which can be useful for production environments processing different material thicknesses.
Standard V-openings cover many sheet metal applications, but custom tooling can become useful when standard dies cannot satisfy the combination of material, geometry, radius, and production requirements.
Custom tooling may be appropriate for:
Unusual bend radii
Special profiles
Short flanges
Large-radius bending
Thick plate
High-strength materials
Special surface requirements
Complex production geometries
Cnstamp provides both standard and custom press brake tooling, including application-specific dies and specialized configurations for complex and heavy-duty bending.
The V-die opening is much more than a dimension used to match sheet thickness. It is a key variable connecting bending force, inside radius, springback, tooling load, machine capacity, and final part accuracy.
A practical approach is to start with an established guideline—such as approximately 8× material thickness for many mild-steel air-bending applications—but then adjust the selection according to the actual material, required radius, bend length, flange geometry, bending method, and equipment limitations.
The goal is not to choose the smallest or largest possible die opening. The goal is to select an opening that provides a controlled balance between bending accuracy, required tonnage, tooling life, machine capacity, and production consistency.
For manufacturers purchasing or specifying press brake tooling, providing the material grade, thickness, bend length, target radius, bend angle, machine tonnage, and part drawing gives the tooling manufacturer the information needed to recommend a suitable V-die configuration.
Related Products
Committed to advancing sheet metal fabrication worldwide, we empower manufacturers through precision engineering and intelligent automation.
Get customized sheet metal processing solutions
Tell us your processing requirements (materials/processes/capacity), and experienced engineers will match you with a combination of high-precision molds and CNC equipment.
Navigation
Navigation
Contact Us
Tel.: +86 255 726 8550
+86 255 726 8551
E-mail: cnstamp@cnstamp.net
Add.: Mingjue Industrial Zone, Shiqiu, Lishui, Nanjing City, Jiangsu China 211223
Send Us A Message
Send Us A Message
