Oct. 26, 2026
In sheet metal fabrication, selecting the right press brake tooling is essential for achieving accurate bend angles, consistent inside radii, and reliable production quality. Among the many factors that influence tooling selection, material thickness is one of the most important. It directly affects the required V-die opening, punch geometry, bending force, minimum flange length, and overall forming performance.
Choosing tooling based on material thickness alone, however, is not always sufficient. Material type, tensile strength, bend radius requirements, part geometry, and press brake capacity must also be considered. Understanding how these factors interact helps manufacturers minimize defects, improve efficiency, and extend tooling service life.
Material thickness determines how the sheet behaves when force is applied by the press brake punch. As thickness increases, the material generally requires a larger V-die opening and greater bending force to achieve a comparable bend.
Thickness also influences the geometry of the finished part. An unsuitable punch or die can produce excessive deformation, surface marks, inconsistent bend angles, or even material cracking.
The main tooling considerations affected by material thickness include:
V-die opening: Determines the effective span of the material during air bending and strongly influences the inside bend radius.
Punch nose radius: Affects contact conditions and the achievable bend geometry.
Bending force: Increases with material thickness and depends on material strength and tooling geometry.
Minimum flange length: Must be sufficient for the sheet to remain properly supported by the die shoulders.
Tooling strength: Punches and dies must withstand the loads generated during bending.
Bend accuracy: Tooling selection influences springback compensation, dimensional consistency, and repeatability.
Selecting appropriate tooling at the beginning of a job reduces setup adjustments and helps maintain stable production results.
The V-die opening is one of the most important parameters in press brake air bending. It influences the inside bend radius, required tonnage, and minimum flange length.
For many conventional air-bending applications, a common starting guideline is to select a V-die opening approximately six to eight times the material thickness:
V = 6t to 8t
Where:
V = V-die opening
t = material thickness
This range is a preliminary guideline, not a universal requirement. Different materials, bend radii, tooling systems, and production conditions may call for different ratios.
For example, when bending 3 mm mild steel, an initial V-die opening between 18 mm and 24 mm may be appropriate for evaluation.
A wider opening generally produces a larger inside radius and requires less bending force than a narrower opening for the same material and thickness. However, it may also increase the minimum flange length.
The following table illustrates commonly used starting ranges for conventional air bending of mild steel. Actual requirements should be confirmed against tooling manufacturer recommendations and production conditions.
| Material thickness | Typical V-die opening range |
|---|---|
| 1 mm | 6–8 mm |
| 1.5 mm | 9–12 mm |
| 2 mm | 12–16 mm |
| 3 mm | 18–24 mm |
| 4 mm | 24–32 mm |
| 5 mm | 30–40 mm |
| 6 mm | 36–48 mm |
| 8 mm | 48–64 mm |
These values are starting estimates for tooling selection, not guaranteed specifications. High-strength steel, stainless steel, aluminum alloys, and applications requiring unusually small bend radii may require different openings.

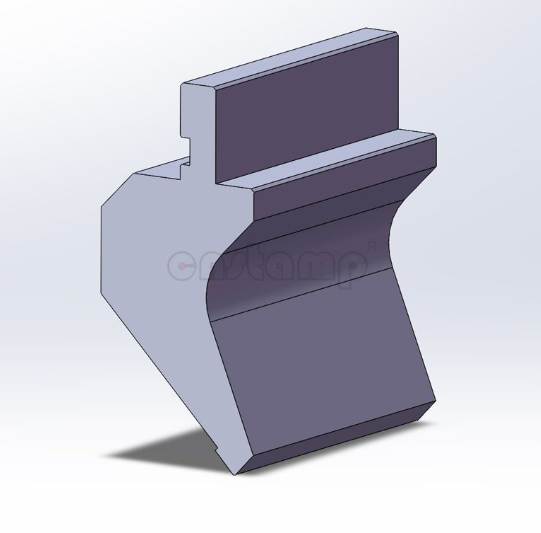

The punch must be suitable for the material thickness, required bend geometry, and intended bending method.
A punch with an unsuitable nose radius or insufficient load capacity can affect the final bend radius, surface finish, and dimensional accuracy.
The punch nose radius influences the contact between the punch and the sheet. In air bending, the inside bend radius is generally governed by the V-die opening and material properties rather than being an exact copy of the punch nose radius.
For relatively thin materials, a smaller punch nose radius may be suitable for tighter bend geometries. For thicker materials, a larger nose radius may be beneficial, depending on the required finished radius and material ductility.
However, the punch nose radius should not be selected solely according to thickness. It must also accommodate the minimum permissible bend radius, material properties, and tooling limitations.
Thicker materials generally require higher bending forces. The selected punch must therefore have sufficient load capacity and appropriate geometry for the application.
For parts with deep channels, narrow returns, or complex profiles, the punch shape and height may be just as important as its nose radius. Gooseneck punches, for example, can provide clearance for certain return-flange geometries.
Before production, verify the punch's rated load per unit length and compatibility with the press brake clamping system.
Bending force is a critical consideration when selecting press brake tooling. As material thickness increases, the force required for air bending generally rises rapidly.
For a given material, die opening, and bending length, bending force is approximately proportional to the square of material thickness. Material tensile strength and V-die opening also significantly affect the required tonnage.
A commonly used simplified relationship for air bending is:
F ∝ Rm × L × t² / V
Where:
F = approximate bending force
Rm = material tensile strength
L = bending length
t = material thickness
V = V-die opening
The exact calculation depends on the units, tooling geometry, and coefficient used by the manufacturer. This proportional relationship is intended to explain the main variables, not to replace a validated tonnage calculation.
For example, increasing thickness from 3 mm to 6 mm can increase the required bending force by approximately four times if other relevant conditions remain unchanged. In practice, the change may differ because the V-die opening, material strength, and process conditions may also change.
If the required bending force exceeds the punch or die rating, the tooling may deform, crack, or fail. Excessive loads can also damage the press brake or compromise operator safety.
Always check:
The press brake's available tonnage across the required bending length.
The punch and die load ratings.
The required bending force for the specific material and V-die opening.
Any concentrated loads caused by short or unevenly distributed bends.
A wider V-die opening can reduce the required force, but the resulting inside radius and flange geometry must still meet the part specifications.
The inside bend radius is another important factor in tooling selection. In air bending, the V-die opening has a strong influence on the radius produced in the finished part.
For many conventional mild-steel applications, a preliminary estimate is:
Ri ≈ V / 6
Where:
Ri = inside bend radius
V = V-die opening
For example, a V-die opening of 24 mm may produce an estimated inside radius of approximately 4 mm under suitable conditions.
This is only a rule of thumb. The actual radius depends on material properties, thickness, punch geometry, die shoulder radius, and the bending process.
As material thickness increases, a wider V-die opening is often selected. This generally results in a larger inside radius. If the drawing requires a small radius in a thick material, the fabricator must evaluate whether the selected tooling can achieve that geometry without excessive force or material damage.
A small radius should never be pursued simply by choosing the narrowest available die. The minimum permissible radius depends on the material's ductility, strength, thickness, and grain direction.
The minimum flange length is the shortest flange dimension that can be formed reliably with a particular V-die opening and tooling arrangement.
Material thickness affects flange length indirectly because thicker sheets typically require wider V-die openings. A wider opening increases the distance between the die shoulders, which can increase the minimum flange dimension.
If a flange is too short, the material may not remain properly supported during bending. This can lead to slipping, inconsistent angles, deformation, or an unusable part.
The minimum flange length depends on several factors:
V-die opening and shoulder geometry.
Material thickness and strength.
Required bend angle and inside radius.
Die design and available tooling configurations.
Manufacturer-specific tooling recommendations.
When a drawing includes very short flanges, verify the minimum flange requirements before choosing a die. A narrower die or specialized tooling may be necessary, but the resulting bending force and material limitations must also be checked.
Two sheets with identical thicknesses may require different tooling because their mechanical properties differ.
Mild steel is widely used in fabrication and generally offers predictable air-bending behavior. Standard V-die selection guidelines are often developed around common mild-steel grades.
Stainless steel often requires greater bending force than mild steel of the same thickness and may exhibit more pronounced springback. Tooling selection should account for its strength, ductility, and surface-finish requirements.
Aluminum alloys vary significantly in strength and ductility. Some grades can crack when bent to a radius that would be acceptable for mild steel. The alloy, temper, grain direction, and minimum bend radius should be checked before selecting tooling.
High-strength steel can require substantially higher bending forces and may exhibit different springback behavior. A wider V-die opening may be appropriate in some applications, but the resulting radius must remain within design limits.
The key principle is that material thickness provides the starting point for tool selection, while material properties determine whether that selection is appropriate.
Several common mistakes can reduce bending quality and increase production costs.
Selecting the V-die opening based on thickness alone: A standard ratio may not suit every material or required bend radius.
Ignoring machine and tooling capacity: Thick materials can generate forces that exceed the rated capacity of the punch, die, or press brake.
Choosing an unsuitable punch nose radius: The punch geometry must be compatible with the intended radius, material properties, and bending method.
Overlooking minimum flange length: The selected V-die opening may not support the required flange dimensions.
Failing to account for springback: Different materials can produce different final angles even when the same tooling and penetration settings are used.
Skipping test bends: Estimated relationships cannot guarantee the final radius or angle. Sample bends help validate the tooling choice before full production.
Avoiding these mistakes improves consistency and reduces unnecessary tooling changes, scrap, and machine downtime.
A structured selection process helps ensure that the tooling matches the job requirements.
Confirm material specifications. Identify the thickness, grade, tensile strength, and relevant material condition.
Determine the required bend geometry. Review the inside radius, bend angle, flange length, and dimensional tolerances.
Choose an initial V-die opening. Use established guidelines as a starting point, then verify the choice against the material and required geometry.
Select a compatible punch. Check nose radius, shape, height, clearance, and load capacity.
Calculate bending force. Confirm that the press brake and tooling can safely withstand the expected load.
Check flange and clearance requirements. Ensure the part can be formed without interference or loss of support.
Perform a test bend. Measure the actual angle, inside radius, and critical dimensions.
Document the setup. Record the tooling combination and validated process settings for repeat production.
Following this process helps manufacturers balance bending accuracy, tooling life, and production efficiency.
Material thickness plays a central role in press brake tool selection because it influences the V-die opening, punch requirements, bending force, inside radius, and minimum flange length. As thickness increases, manufacturers generally need wider die openings and higher load capacity, although the correct choice depends on material properties and part geometry.
The most reliable approach is to use thickness-based guidelines for initial selection, then verify the tooling against the material grade, required bend radius, flange dimensions, and machine capacity.
By combining appropriate tooling selection with test bends and consistent process control, sheet metal fabricators can improve dimensional accuracy, minimize defects, protect their equipment, and achieve more reliable production results.
