How to Choose Amada Style Press Brake Tooling

Amada style press brake tooling is widely used in sheet metal fabrication due to its precision, durability, and compatibility with Amada CNC press brakes. Choosing the correct tooling ensures accurate bends, reduces scrap, and improves productivity. This guide outlines the key considerations when selecting Amada style press brake tooling.

1. Know Your Material and Thickness

The type and thickness of the sheet metal directly influence tooling selection:

• Thin Sheets: Require sharp punches and appropriately sized dies to prevent deformation or tearing.

• Thicker or High-Strength Materials: Need robust, hardened tooling to handle increased tonnage without excessive wear.

Matching tooling to material ensures consistent bends and extends tool life.

2. Consider Machine Capacity

Amada style press brakes have specific tonnage and stroke limits. Tooling must align with the machine’s capabilities to prevent overload:

• Smaller V-dies for light materials reduce required tonnage.

• Larger dies or reinforced punches support thicker materials for accurate bending.

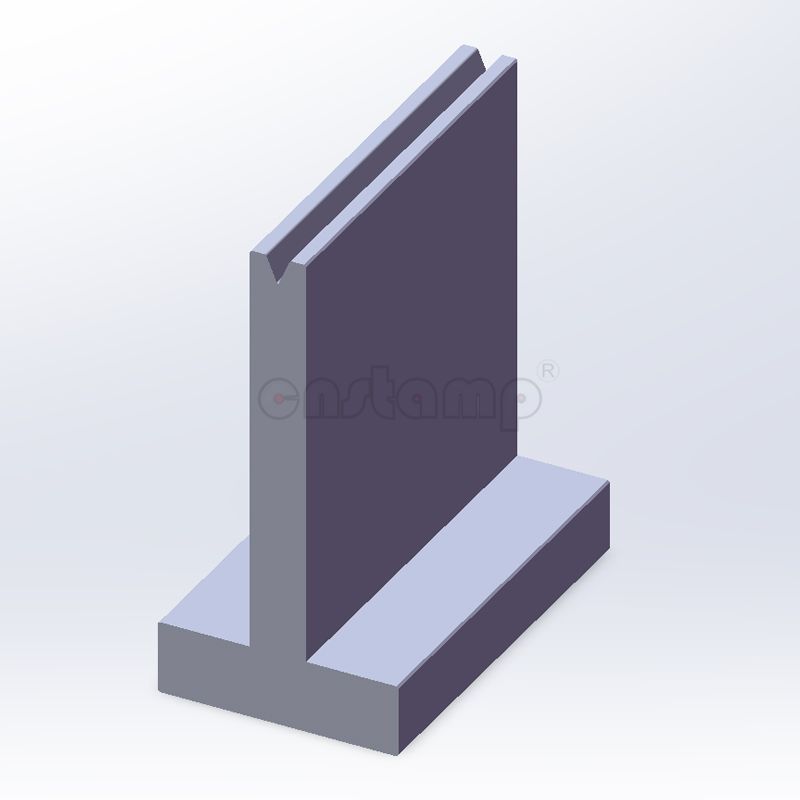

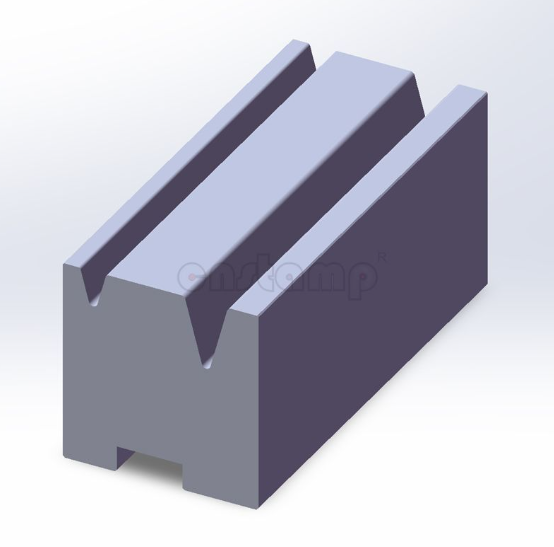

3. Select the Right Die Opening

Die width affects bend quality and springback:

• General Guideline: Die opening ≈ 8 × material thickness for mild steel.

• Adjust die width based on material type, bend radius, and desired angles.

Proper die selection ensures precision and reduces rework.

4. Match Tooling to Bend Angle and Part Design

• Air Bending: Uses standard Amada style punches and dies, suitable for variable angles.

• Bottoming or Coining: Requires matched punches and dies for exact angles.

• Complex Shapes: U-bends, channels, or custom profiles may require specialized tooling.

5. Choose Quality Materials and Coatings

High-quality materials improve durability and bending accuracy:

• Tool Steel: Provides hardness and wear resistance.

• Hardened Steel or Carbide Tips: Suitable for high-volume or abrasive applications.

• Coatings: Nitride or chrome coatings reduce friction and protect against corrosion.

6. Verify Tooling Compatibility

Ensure the Amada style tooling fits your press brake model. Compatibility guarantees safe operation, precise bends, and long-term performance.

7. Maintain Your Tooling

Regular inspection, cleaning, and proper storage maintain bending accuracy and extend tool life. Quick setup and alignment reduce downtime and scrap.

Conclusion

Choosing Amada style press brake tooling requires careful consideration of material, machine capacity, die width, and part design. Using high-quality, compatible tooling ensures precision, improves productivity, and prolongs the life of both the tools and the press brake. CNStamp offers
