The press brake punch is one of the most important components in sheet metal bending. Even when the press brake has sufficient tonnage and accuracy, using the wrong punch profile can cause workpiece interference, incorrect bend radii, unstable angles, premature tool wear, or unnecessary setup time.
For buyers sourcing press brake tooling, punch selection should therefore be based on the actual part geometry, material, bending angle, required radius, machine interface, and production volume—not simply on the punch angle.
Cnstamp manufactures standard and custom press brake punches for Amada/Promecam, Trumpf, LVD, Bystronic, EHT, Weinbrenner, and other press brake systems, including straight punches, gooseneck punches, acute-angle punches, radius punches, and application-specific tooling.
A standard straight punch is usually the first choice for conventional air bending and bottom bending.
Cnstamp supplies common 88° and 90° punches for general sheet metal fabrication. These profiles are suitable for jobs where the workpiece does not interfere with the punch body during bending.
Typical applications include:
Simple 90° bends
Panels and covers
Brackets
Open channels
General fabricated sheet metal parts
For these jobs, the buyer should mainly confirm the punch angle, tip radius, tool height, bending length, and maximum load.
A standard punch is usually preferable when it can produce the part correctly because it is easier to replace, segment, and reuse across different jobs.
Workpiece clearance becomes more important when producing boxes, channels, or components with several consecutive bends.
After one flange has already been formed, it may collide with a straight punch during the next bend. A gooseneck press brake punch provides additional clearance around the previously formed flange.
Cnstamp specifically offers gooseneck punches for forming boxes, channels, deep bends, and other geometries where workpiece interference would make a straight punch impractical.
For example, its KP8817 is an 88° H90 mm gooseneck upper punch manufactured in 42CrMo or 55SiCr, with several tip-radius options and sectionalized configurations available.
When selecting a gooseneck punch, provide the complete component drawing rather than only the bend angle. The supplier needs to check flange depth, return bend dimensions, punch throat clearance, and bending sequence.
An acute-angle punch is used where the required geometry is sharper than a conventional 90° bend or where the bending process needs to compensate for material springback.
Cnstamp supplies acute-angle punches together with matching acute-angle dies for precision bending applications.
They may be considered for:
Acute-angle parts
Pre-bending before hemming
Springback compensation
Sharp profiles
Special forming operations
The required tool angle should not automatically be assumed to equal the finished part angle. Material type, thickness, bending method, and springback all influence the actual tooling combination.
For this reason, buyers should provide both the required finished angle and the material specification when requesting tooling.
Not every component requires a sharp bend.
Structural parts, architectural panels, enclosures, and thicker plate may require a controlled larger inside radius. In these cases, a radius punch can form the required profile without concentrating excessive deformation at a small punch tip.
Cnstamp supplies radius tooling as part of its press brake tooling range and also manufactures custom radius profiles when standard tooling cannot achieve the required geometry.
When ordering radius punches, specify:
Material
Thickness
Required inside radius
Bend angle
Bend length
Forming method

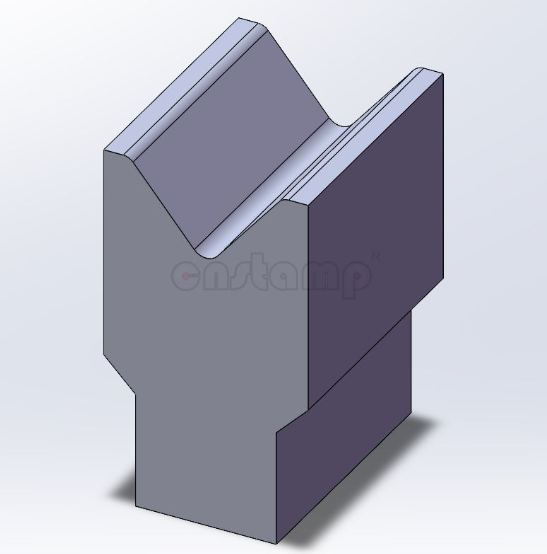

The punch radius should be evaluated together with the die opening because both influence the final bend.
Punch height is sometimes overlooked during tooling selection.
Two punches may have the same angle and tip radius but perform differently when forming deep boxes or tall channels. A taller punch can provide additional clearance between the press brake beam, tooling, and workpiece.
However, tool height also affects loading and machine configuration, so selecting the tallest possible punch is not automatically the best solution.
Cnstamp offers punches in different heights and geometries for different press brake systems. Its tooling catalogs include both compact standard punches and taller special profiles for more complicated forming operations.
For deep parts, the complete cross-section of the workpiece should be checked against the punch geometry before ordering.
Every press brake punch has a maximum allowable load.
For instance, different Cnstamp punch models are rated for different tonnage levels; the KP8817 gooseneck punch is listed with a maximum capacity of 60 t/m.
The actual required bending force depends on factors such as:
Material tensile strength
Plate thickness
Bend length
V-die opening
Bending method
Required radius
Using tooling above its rated load can damage both the punch and the machine and may create a safety risk.
Heavy plate bending therefore requires tooling specifically designed for higher loads rather than simply using standard sheet metal tooling.
Cnstamp also manufactures large multi-V dies and special tooling for tandem press brakes used in heavy-industry applications such as mining equipment and thick-plate fabrication.
Punch geometry is only useful if the tool can actually be mounted correctly.
Different press brake brands use different tooling standards and tang configurations. Cnstamp organizes its tooling into systems compatible with Amada/Promecam, Trumpf, LVD, Bystronic, EHT, Weinbrenner, as well as many other press brake brands.
For example, its Bystronic-type tooling is manufactured for machines using compatible Bystronic/Beyeler systems and can be supplied in different tool lengths, profiles, radii, and V-die combinations.
Before ordering, provide:
Press brake manufacturer
Machine model
Existing tooling type
Clamping system
Tooling drawing if available
This is especially important when replacing tooling on an older or modified machine.
Press brake punches can be supplied as full-length tools or as segmented sets.
Segmented tooling allows operators to combine different pieces to match the required bending length. It can also make tooling easier to handle when producing boxes or narrow components.
Cnstamp's segmented tooling includes multiple short and long sections that can be combined for different part widths. Its Bystronic-type range, for example, includes segmented configurations with small increments alongside longer tool sections.
Sectionalized tooling is particularly useful when:
Production includes many different part widths
Box bending requires gaps between tools
Operators frequently change setups
Long one-piece tools are difficult to handle
For repetitive long bends, however, a full-length tool may still be preferable depending on the machine and production process.
Tool geometry determines whether the bend can be formed, but material and heat treatment influence how long the tooling can maintain that geometry.
Cnstamp uses alloy tool steels such as 42CrMo, while specific ranges also list materials such as 1.2312, 1.2379, and D2 or equivalent. Its manufacturing process includes CNC machining, grinding, polishing, heat treatment, and dimensional inspection.
For high-volume production, wear resistance is especially important because gradual deterioration of the punch tip can influence bend angle, radius, and repeatability.
Regular cleaning and inspection are also necessary. Cnstamp recommends keeping tooling surfaces free from debris and checking punches and dies for wear during use.
To reduce quotation errors and avoid receiving a tool that fits the machine but not the workpiece, provide:
Press brake brand and model
Tooling/clamping standard
Material type
Material thickness
Workpiece drawing
Required finished bend angle
Inside bend radius
Bend length
Minimum flange dimension
Production quantity
Maximum bending tonnage
Existing tooling drawing, if replacing a tool
For complex components, sending the complete 2D or 3D part drawing is particularly valuable because the manufacturer can assess interference and bending sequence before recommending a punch profile.
There is no single press brake punch suitable for every bending application.
A straight punch may be ideal for general fabrication, while a gooseneck punch is needed for box and deep-channel clearance. Acute-angle punches support sharper forming operations, radius punches create larger internal radii, and custom tooling becomes necessary when standard profiles cannot reproduce the required part geometry.
Cnstamp provides standard and custom press brake tooling for major machine systems, with different punch angles, heights, radii, segmented lengths, materials, and load capacities available.
For sheet metal fabricators, the most reliable selection process is to evaluate the press brake, tooling interface, material, part geometry, bending sequence, and required production output together. This approach helps reduce trial-and-error setup, avoid workpiece interference, and improve consistency across repeated bending operations.
