Inside Radius vs. V-Die Opening: Understanding the Relationship in Air Bending

In sheet metal fabrication, achieving accurate and consistent bend angles requires more than selecting the correct press brake and punch. One of the most important factors influencing bending results is the relationship between the inside bend radius and the V-die opening. Understanding how these two parameters interact helps operators select the right tooling, improve dimensional accuracy, reduce material defects, and maintain consistent production quality.

In air bending, the inside radius is not determined solely by the punch radius. Instead, it is strongly influenced by the width of the V-die opening, the material properties, and the bending process itself. This relationship is essential for anyone looking to optimize press brake performance.

1. What Is the Inside Bend Radius?

The inside bend radius, often called the inside radius or bend radius, is the radius of the curved surface on the inside of a sheet metal bend.

It affects several important aspects of a formed component, including:

• Dimensional accuracy: The inside radius influences bend allowance, bend deduction, and flat pattern calculations.

• Material integrity: An excessively small radius can increase the risk of cracking, particularly in hard or low-ductility materials.

• Structural performance: Bend geometry affects stress distribution and the mechanical behavior of the finished part.

• Appearance: A consistent inside radius helps maintain a uniform appearance across multiple bends.

The achievable inside radius depends on the material type, thickness, tensile strength, ductility, grain direction, and selected tooling.

In air bending, the punch pushes the sheet into the V-shaped die without forcing it to conform completely to the bottom of the die. The sheet contacts the punch tip and the two shoulders of the V-die, allowing the bend to form through controlled penetration.

Because the sheet is not fully constrained by the die profile, the resulting inside radius can differ significantly from the punch nose radius.

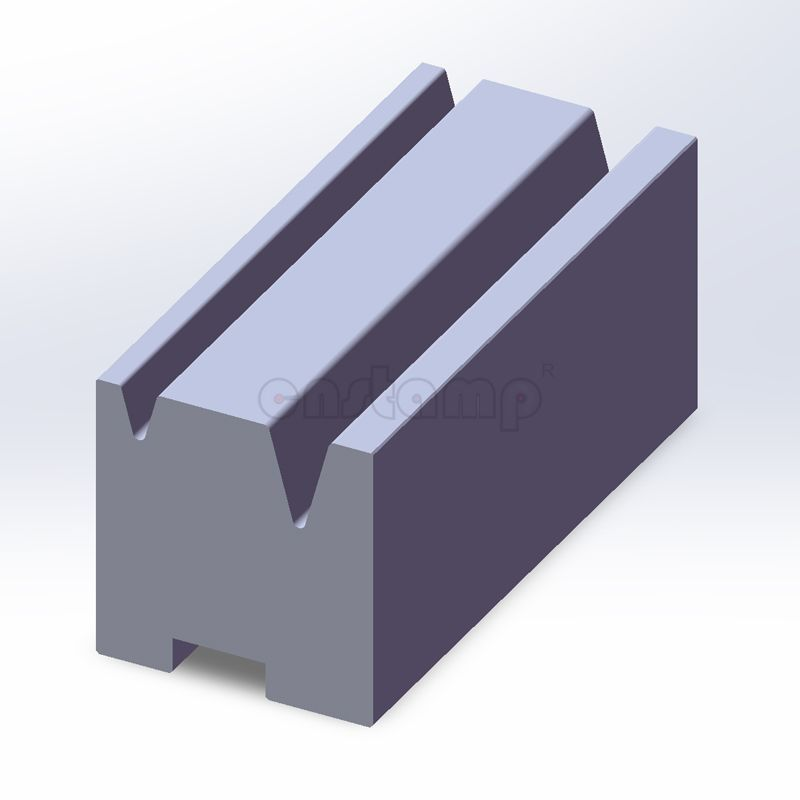

2. What Is the V-Die Opening?

The V-die opening is the distance between the two upper edges or shoulders of a V-shaped die. It is commonly designated as V and is one of the primary tooling dimensions used in press brake air bending.

The V-die opening affects how the material stretches and curves during bending. A wider opening generally produces a larger inside bend radius, while a narrower opening generally produces a smaller radius.

V-die openings must be selected according to the material thickness, material strength, desired bend geometry, minimum flange length, and available press brake capacity.

For example, a V-die opening of 16 mm may be suitable for certain applications involving 2 mm sheet metal, while thicker or higher-strength materials may require a wider opening. The appropriate selection depends on the actual material and process requirements.

Choosing the wrong V-die opening can lead to excessive bending force, inconsistent radii, surface damage, or insufficient flange support.

3. The Relationship Between Inside Radius and V-Die Opening

In conventional air bending, the inside bend radius is strongly correlated with the V-die opening. For many common materials and standard tooling configurations, a practical estimating relationship is:

Inside radius ≈ V-die opening × material-dependent factor

For mild steel, a commonly used preliminary estimate is:

Ri ≈ V / 6

Where:

• Ri = inside bend radius

• V = V-die opening

This ratio is a practical rule of thumb rather than a universal formula. Depending on the material, tooling geometry, thickness, and bending conditions, the actual inside radius may be closer to V/6, V/5, or another value.

For example, if the V-die opening is 18 mm, the estimated inside radius using the V/6 rule is:

Ri ≈ 18 / 6 = 3 mm

This estimate is useful during initial tooling selection and process planning. However, actual results should be verified through bending trials, manufacturer recommendations, or established production data.

Why Does the V-Die Opening Affect the Inside Radius?

During air bending, the sheet spans the V-die opening and deforms under the force applied by the punch. The opening determines the effective span of the material between the die shoulders.

A wider V-die creates a larger unsupported span, generally resulting in a larger inside radius. A narrower V-die reduces the span and typically produces a tighter radius.

However, the relationship is not perfectly linear under all conditions. Material strength, thickness, punch geometry, die shoulder radius, and penetration depth can all influence the final result.

The key principle is that the V-die opening is usually the primary tooling parameter for estimating the inside radius in air bending, while the punch nose radius and material properties remain important secondary factors.

4. How Material Thickness Influences V-Die Selection

Material thickness is one of the first factors to consider when selecting a V-die opening.

For many conventional air-bending applications, a starting point is to select a V-die opening approximately six to eight times the material thickness. Some applications use different ratios depending on material strength, thickness, and required bend geometry.

A general starting range is:

V ≈ 6t to 8t

Where:

• V = V-die opening

• t = material thickness

For example, when bending 3 mm mild steel, an initial V-die opening between 18 mm and 24 mm may be appropriate for evaluation.

Using the V/6 estimating rule, these openings correspond to estimated inside radii of approximately 3 mm and 4 mm, respectively.

These values are starting estimates, not guaranteed results. The best opening should be selected based on the required radius, material characteristics, press brake capacity, and tooling manufacturer's recommendations.

What Happens When the V-Die Is Too Narrow?

A V-die opening that is too narrow for the application can create several problems:

• Increased bending force and higher press brake load.

• Greater risk of material cracking, especially in high-strength or low-ductility materials.

• Potential surface marking or deformation near the die shoulders.

• Reduced suitability for thick materials or parts with demanding flange dimensions.

• Increased tooling stress and potential premature wear.

A narrower opening may be necessary when a smaller radius is required, but the decision must account for the machine's capacity and the material's bending limits.

What Happens When the V-Die Is Too Wide?

A wider V-die generally reduces the required bending force for a given material and thickness, but it also tends to increase the inside radius.

Potential consequences include:

• An inside radius larger than the design specification.

• Longer minimum flange requirements.

• Changes to bend allowance and flat pattern dimensions.

• Greater difficulty maintaining the intended geometry in certain narrow or complex parts.

• Increased sensitivity to tooling setup and material variation.

Selecting a wider die simply to reduce tonnage may therefore compromise dimensional accuracy if the resulting radius is not considered during part design.

5. Inside Radius, Punch Radius, and V-Die Opening: What Is the Difference?

These three parameters are related, but they are not interchangeable.

Inside radius (Ri): The actual radius formed on the inside surface of the finished bend.

Punch nose radius (Rp): The radius at the tip of the press brake punch. It influences contact conditions and the resulting bend geometry, particularly when the punch radius is relatively large compared with the naturally formed radius.

V-die opening (V): The distance between the die shoulders. In air bending, it strongly influences the effective span of the material and the resulting inside radius.

In many standard air-bending operations, the inside radius is primarily governed by the V-die opening and material properties rather than being an exact copy of the punch nose radius.

However, when a punch has a relatively large nose radius, or when the operation approaches bottom bending rather than true air bending, the punch geometry can exert greater influence on the resulting radius.

This distinction is important because selecting a punch with a smaller nose radius does not necessarily guarantee a smaller inside radius if the V-die opening remains unchanged.

6. How Springback Affects the Final Bend Radius

Springback occurs when elastic stresses within the material cause it to partially recover after the bending force is removed.

Although springback is most commonly discussed in relation to the final bend angle, it can also affect the resulting bend geometry.

Materials with higher yield strength generally exhibit greater springback under comparable conditions. Stainless steel, high-strength steel, and some aluminum alloys may therefore behave differently from mild steel when bent using the same tooling.

The final bend angle and inside radius can vary with material strength, thickness, grain direction, punch penetration, and tooling geometry.

To compensate for springback, operators may need to adjust punch penetration or bending angle and validate the resulting radius through test bends.

It is important to distinguish between two related effects: springback changes the shape after unloading, while the V-die opening establishes the primary geometric conditions under which the bend forms. Both must be considered when accurate dimensions are required.

7. Practical Example: Selecting a V-Die Opening

Consider an application involving 2 mm mild steel sheet with a target inside radius of approximately 2 mm.

Using the preliminary relationship:

Ri ≈ V / 6

Rearranging the equation gives:

V ≈ 6Ri

Substituting the target radius:

V ≈ 6 × 2 = 12 mm

A 12 mm V-die opening is therefore a reasonable starting point for a trial bend.

Before production, the operator should verify that the selected tooling is suitable for the material thickness, that the minimum flange length can be achieved, and that the required bending force is within the press brake's capacity.

A test bend should then be measured to determine the actual inside radius and bend angle. If the measured radius is too large or too small, the tooling selection or process settings may need to be adjusted.

This example illustrates how the relationship between inside radius and V-die opening can simplify initial tooling selection without replacing practical verification.

8. Best Practices for Achieving a Consistent Inside Radius

To maintain repeatable bending results, fabricators should follow several important practices.

Match the V-Die Opening to the Material

Use material thickness and strength as the starting point for selecting the V-die opening. Avoid relying on a single ratio for every material and application.

Check the Required Inside Radius

Determine whether the drawing specifies an exact inside radius or allows a reasonable tolerance. The required radius should guide tooling selection rather than being treated as an incidental outcome.

Consider the Punch Nose Radius

Confirm that the punch geometry is compatible with the desired bend and that the tooling is appropriate for the material and bending method.

Verify Machine Capacity

Calculate the expected bending force using the tooling manufacturer's recommended method. Ensure that the press brake, punch, and die can safely withstand the required load.

Measure Test Bends

Use sample bends to validate the actual inside radius, bend angle, and flange dimensions before running a full production batch.

Maintain Tooling Consistency

Worn, damaged, or mismatched tooling can introduce variation. Regular inspection and consistent setup procedures help maintain stable bending results.

Update Flat Pattern Calculations

Because the inside radius affects bend allowance and bend deduction, changes to the V-die opening may require updates to flat pattern calculations. Confirm that the CAD model and production settings reflect the actual bending process.

9. Common Misconceptions About Inside Radius and V-Die Opening

Several misconceptions can lead to poor tooling decisions.

Misconception 1: The inside radius always equals the punch nose radius.

In air bending, the resulting radius is strongly influenced by the V-die opening and material properties. The punch radius does not automatically determine the final inside radius.

Misconception 2: A fixed V-to-thickness ratio works for every material.

Different materials have different strengths, ductility, and springback characteristics. A ratio that works well for mild steel may not be appropriate for stainless steel or high-strength steel.

Misconception 3: A smaller V-die opening always improves accuracy.

A narrower opening may produce a smaller radius, but it also increases bending force and may increase the risk of material damage or tooling overload.

Misconception 4: The estimated radius is the guaranteed production radius.

Rules of thumb are useful for initial selection, but actual results depend on material variation, tooling condition, press brake settings, and bending technique.

Understanding these distinctions helps operators make better tooling decisions and reduces unnecessary trial and error.

Conclusion

The relationship between inside bend radius and V-die opening is a fundamental consideration in press brake air bending. In many conventional applications, the inside radius can be estimated using a material-dependent factor multiplied by the V-die opening, with the commonly used Ri ≈ V/6 relationship serving as an initial guideline for mild steel.

However, no single ratio applies universally. Material properties, thickness, punch nose radius, die geometry, springback, and machine capacity all influence the final result.

By selecting the V-die opening according to the application, validating the actual radius through test bends, and maintaining consistent tooling and process settings, manufacturers can improve bend quality, reduce defects, and achieve more reliable production results.

For press brake operators, tooling engineers, and sheet metal fabricators, understanding this relationship is an essential step toward more accurate and efficient air-bending operations.
