When selecting a press brake punch, manufacturers often focus on the punch angle, tip radius, tooling standard, and maximum load. One dimension that can receive less attention is punch height.
Punch height affects much more than the overall size of the tooling. In the right application, it determines how much clearance is available between the punch, the press brake, and the workpiece. It can influence whether a deep box or channel can be formed at all, whether previously bent flanges interfere with the tooling, and whether the selected punch can be installed and used safely on the machine.
Two punches can have the same angle and tip radius but different heights and therefore behave very differently when forming deep or geometrically complex components.
For general bending, a standard-height punch may be sufficient. For deep boxes, channels, tall flanges, or parts with multiple bends, however, punch height needs to be evaluated together with the complete workpiece geometry and bending sequence.
Cnstamp's current press brake tooling range includes punches with different heights and profiles, including standard, gooseneck, acute-angle, and application-specific designs. Its product range includes examples such as H67 mm, H90 mm, H105 mm, H145 mm, and substantially taller punches for specialized applications.
Punch height is the vertical dimension of the upper press brake tool, measured according to the applicable tooling standard and manufacturer's specification.
It is important to distinguish punch height from other dimensions such as:
Overall punch width
Tip radius
Punch angle
Blade or tip thickness
Shank dimensions
Clamping dimensions
Working depth or throat geometry
The exact reference points used to specify height can vary between tooling systems, so the manufacturer's drawing should always be used when comparing tools.
Cnstamp's product listings identify punch height directly in model specifications. For example, its catalog includes 90° punches with H86 mm, H105 mm, and other heights, while its gooseneck range includes H90 mm and H145 mm configurations.
This is why “a 90° punch” is not a complete tooling specification. Two 90° punches may have substantially different heights and profiles and may therefore be suitable for different part geometries.
Punch height becomes especially important when the workpiece extends upward or outward around the punch during forming.
This commonly occurs with:
Deep boxes
U-channels
Tall side walls
Return flanges
Multiple consecutive bends
Enclosures
Cabinet components
Structural profiles
Parts with limited access around the bend
During the first bend, the workpiece may have plenty of clearance.
After one or more bends have already been formed, however, the geometry of the part changes. A previously formed flange can move toward the punch body during the next operation.
This is where punch profile and height become important.
A punch with insufficient clearance may allow the tool to contact the existing flange before the required bend is completed.
The result can be:
Workpiece interference
Incomplete bending
Surface damage
Distortion
Tool collision
Additional setup operations
The need for a different bending sequence
Cnstamp specifically identifies workpiece interference as an important consideration when selecting punch profiles for boxes, channels, and deep bends.
One common misconception is that a taller punch automatically means the machine can make a deeper bend.
That is not necessarily the case.
Punch height is one component of the available forming geometry.
The actual achievable bending depth depends on the relationship between:
Punch height
Punch profile
Throat or offset geometry
Die height
V-opening
Press brake daylight
Machine throat depth
Workpiece dimensions
Flange height
Bending sequence
A taller punch may provide additional clearance in one direction while creating a different machine-setup constraint elsewhere.
Therefore, “maximum bending depth” should not be inferred from punch height alone.
For complex parts, the complete cross-section should be evaluated before tooling is selected. Cnstamp makes the same recommendation for deep components, noting that the workpiece geometry needs to be checked against the punch profile rather than selecting a tool based only on angle.
For conventional sheet metal work, a standard straight punch is often sufficient.
Typical applications include:
Flat panels
Brackets
Covers
Simple channels
Basic 90° bends
Parts without previously formed flanges near the tooling
In these cases, punch height may not be the primary limiting factor.
The fabricator will usually focus more heavily on:
Punch angle
Tip radius
Die opening
Material thickness
Required bend angle
Bending force
Machine compatibility
Cnstamp's current tooling range includes standard 88° and 90° punches for common bending operations.
However, even in general applications, the punch height should still be checked against the machine's tooling interface and available daylight.
A taller punch can become useful when the geometry of the part requires additional clearance around the tool.
Examples include parts with:
Deep side walls
Tall flanges
Large vertical dimensions
Multiple bends close together
Large return sections
Deep channels
The purpose is not simply to use the tallest possible punch.
Instead, the punch should provide the required working clearance while remaining compatible with the press brake and appropriate for the expected loading conditions.
A taller punch can be particularly useful when the standard straight punch body would interfere with an existing flange.
However, if the interference is caused by the shape of the punch body rather than simply its height, increasing height alone may not solve the problem.
This distinction leads to an important tooling principle:
Clearance is determined by punch geometry, not height alone.
For deep boxes and channels, a gooseneck punch is often more relevant than simply choosing a taller straight punch.

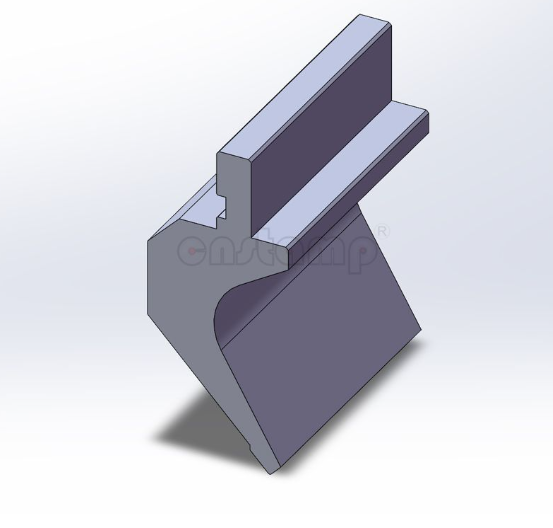

A gooseneck punch has a recessed or offset profile that creates additional space around the workpiece.
This allows a previously formed flange to pass around the punch body during another bending operation.
Consider a box-shaped component.
After the first flange is bent, the second bend may bring the existing wall close to the upper tool. With a conventional straight punch, the wall may collide with the tool body.
A gooseneck punch creates a clearance zone around that wall.
Cnstamp specifically offers gooseneck punches for boxes, channels, deep bends, and other applications where a standard straight punch may cause interference.
Therefore, when evaluating a deep component, the question should not simply be:
“How tall should the punch be?”
It should be:
“What punch geometry provides enough clearance for the entire part throughout the bending sequence?”
Clearance needs to be considered in three dimensions.
The tool must have enough available space within the machine's working envelope.
This includes the relationship between the upper tool, lower die, workpiece, and press brake beam.
The previously formed flange or side wall must have enough room to pass beside the punch.
This is particularly important for box and channel bending.
A part may fit correctly during the first bend but interfere during the third or fourth bend.
Therefore, clearance should be evaluated across the entire bending sequence, not only the individual bend shown on a flat drawing.
This is one reason complete 2D or 3D part drawings are valuable when ordering specialized tooling. Cnstamp recommends providing the complete component drawing for complex punch applications so that flange depth, return dimensions, throat clearance, and bending sequence can be evaluated.
Deep box bending is one of the clearest examples of why punch height matters.
Suppose a sheet metal blank must be formed into a box with relatively tall walls.
The first bend may be straightforward.
After the first side wall is formed, however, that wall becomes part of the geometry surrounding the next bend.
If the upper punch is too wide or lacks sufficient offset, the existing wall can collide with the punch before the second bend reaches the required angle.
A suitable punch may need:
Greater height
A gooseneck profile
Appropriate throat clearance
A suitable tip radius
Correct tooling orientation
The correct solution depends on the exact box dimensions.
For particularly deep boxes, the bending sequence may need to be planned together with tooling selection.
U-channels present a similar challenge.
When a channel has relatively deep side walls, the existing wall can approach the punch body during subsequent bends.
A standard straight punch may therefore work for a shallow channel but become unsuitable as the channel depth increases.
A gooseneck or specially offset punch can provide additional clearance.
The important variables include:
Channel width
Channel depth
Wall thickness
Bend radius
Flange length
Bend sequence
Punch throat geometry
Die opening
This means a punch cannot be selected correctly from the channel's material thickness alone.
Multiple-bend parts create another important clearance issue.
Consider a component requiring four bends in sequence.
The first bend changes the geometry.
The second bend changes it again.
By the third or fourth operation, the previously formed sections may surround the active bend area.
A tool that works for the first operation may therefore be unsuitable for later operations.
This is why tooling selection should be performed together with bend-sequence planning.
A manufacturer evaluating a complex part should determine:
Which bend is formed first?
Which surfaces remain flat during each operation?
Where are the previously formed flanges located?
Can those flanges pass around the punch?
Is there enough space for the operator or automation system?
Can the part be rotated without collision?
Does the selected punch provide sufficient clearance throughout the operation?
The press brake itself also places limits on tooling selection.
Daylight refers broadly to the available opening between the upper and lower beam/tooling positions when the machine is open.
The selected tooling, workpiece, and required forming position must fit within the machine's available working range.
A very tall punch can consume more of the available vertical space than a shorter tool.
This does not mean that a tall punch is undesirable.
It means that the tool must be considered as part of the complete machine-tool-workpiece system.
Before ordering a punch with a substantially different height, verify:
Machine model
Maximum daylight
Stroke
Clamping system
Tool mounting dimensions
Upper and lower tool heights
Required forming depth
Workpiece dimensions
Cnstamp supplies tooling for multiple press brake systems, including Amada/Promecam, Trumpf, LVD, Bystronic, EHT, and Weinbrenner standards, making machine compatibility an important part of the selection process.
A punch must not only provide sufficient workpiece clearance; it must also fit the press brake's clamping system.
Different press brake tooling systems use different interfaces and dimensions.
A punch may have the correct angle and apparent height but still be unsuitable because:
The shank does not match the holder.
The clamping dimensions are incorrect.
The tool cannot be securely installed.
The tool height changes the working position.
The machine's automatic clamping system requires a different interface.
Cnstamp organizes its press brake tooling by several machine-compatible systems, including Type A for Amada/Promecam, Type T for Trumpf, Type L for LVD, Type B for Bystronic, Type E for EHT, and Type W for Weinbrenner.
This is why a tooling inquiry should include the press brake brand and model rather than simply requesting a “90° H100 punch.”
Punch height can also influence the relationship between the machine's reference position and the working tip.
When replacing an existing punch with one of a different height, the machine setup may need to account for the changed tool geometry.
For CNC press brakes, this can affect:
Tool setup
Programmed positions
Bend depth
Collision calculations
Tool library data
Automatic tool recognition
The exact effect depends on the press brake control system and tooling configuration.
For repeat production, consistent tool dimensions help reduce setup uncertainty.
If a replacement punch has substantially different dimensions from the original, the tooling data in the machine should be verified before production.
No.
This is one of the most important points when selecting press brake punches.
A taller punch does not automatically provide more clearance around the workpiece.
Imagine two punches:
Punch A: H100 mm, straight profile
Punch B: H90 mm, gooseneck profile
Even though Punch A is taller, Punch B may provide substantially more usable clearance for a deep box because its throat geometry moves the punch body away from the previously formed flange.
Therefore, comparing punch height without looking at the complete cross-section can lead to incorrect tooling selection.
For complex components, profile geometry is often more important than absolute height.
Punch height should also be considered together with the punch tip radius.
The tip radius influences the contact between the punch and sheet, while punch height and profile influence clearance around the workpiece.
For example, a large-radius punch may be required for a component with a large inside bend radius.
But if the component also has a deep flange, the overall punch profile may need to provide additional clearance.
Cnstamp's punch-selection guidance recommends evaluating punch radius together with die opening because both influence the final bend.
Thus, a complete tooling specification might include:
Punch height
Punch angle
Tip radius
Profile
Tooling standard
Maximum load
Segment length
Material and heat treatment
Tool height should not be considered separately from tooling strength.
A taller or specialized punch may have a different cross-sectional geometry from a standard punch.
The allowable load must therefore be checked for the specific tool.
The required bending force depends on variables such as:
Material strength
Material thickness
Bend length
V-die opening
Bend radius
Bending method
The punch and die must both be capable of handling the resulting load.
Cnstamp lists maximum load ratings for individual punch models. For example, its current product information identifies different capacities for different punch designs, illustrating why a tooling model should be evaluated by its actual specification rather than its height alone.
A buyer may specify:
90° press brake punch
But this leaves many important questions unanswered.
The required height, tip radius, profile, tooling interface, load capacity, and workpiece clearance still need to be established.
Maximum height is not the same as maximum performance.
A tall tool may create unnecessary machine constraints or still fail to provide the required lateral clearance.
A flat blank may appear to have enough space.
The formed part can tell a very different story.
Clearance should be checked after every relevant bending operation.
A punch can be geometrically suitable for the part but incompatible with the press brake.
A replacement punch with different dimensions may require updated tooling data or setup parameters.
If the punch body interferes with a previously formed flange, simply increasing height may not solve the problem.
A gooseneck or custom profile may be more appropriate.
| Feature | Standard Straight Punch | Gooseneck Punch |
|---|---|---|
| General bending | Suitable | Suitable where profile permits |
| Simple 90° bends | Common choice | Usually unnecessary |
| Deep boxes | May cause interference | Better clearance |
| Deep channels | Application-dependent | Often advantageous |
| Previously formed flanges | Limited clearance | Increased clearance |
| Tool complexity | Lower | Higher |
| Typical use | General fabrication | Complex/deep geometries |
| Customization potential | Standard options widely available | Often available in specialized profiles |
The correct choice depends on the actual part geometry rather than the name of the tool.
Cnstamp's current product range includes both standard punches and gooseneck punches for different bending applications.
When specifying a punch for a new part, the following process can reduce trial and error.
Collect:
Overall part dimensions
Material thickness
Flange heights
Channel or box depth
Bend radii
Bend angles
Minimum flange lengths
Determine the order in which the bends will be made.
This is essential for parts with multiple bends.
For each operation, check whether:
Existing flanges hit the punch.
The punch body contacts the part.
The workpiece can be positioned correctly.
The part can be rotated.
The operator or automation system has sufficient access.
Choose among:
Standard straight punch
Gooseneck punch
Acute-angle punch
Radius punch
Custom punch
Once the required profile is known, select a height that provides the necessary working clearance without creating machine compatibility problems.
Confirm:
Press brake brand
Machine model
Clamping system
Tool interface
Available daylight
Stroke
Tool mounting dimensions
Make sure the punch's allowable load is appropriate for the bending operation.
For complex components, a tooling drawing or simulation can help verify the relationship between the punch, die, and workpiece before manufacturing begins.
For standard replacement tooling, basic machine and tool information may be enough.
For custom or complex tooling, provide as much of the following as possible:
Press brake manufacturer
Machine model
Tooling standard
Clamping system
Existing punch dimensions
Desired punch angle
Required tip radius
Material grade
Material thickness
Bend angle
Bend radius
Bend length
Flange height
Box or channel depth
Complete part drawing
Bending sequence if available
Required production quantity
A complete 2D or 3D drawing is particularly useful when clearance is the main concern.
Cnstamp's current guidance specifically recommends complete component information for complex punch applications so that the manufacturer can evaluate flange depth, return dimensions, throat clearance, and bending sequence.
Press brake punch height is not simply a catalog dimension. It is part of the geometric relationship between the machine, punch, die, and workpiece.
For simple sheet metal bends, a standard-height punch may provide everything required. As part geometry becomes deeper or more complex, however, punch height and profile become increasingly important.
The key considerations are:
Punch height determines part of the available working geometry.
Punch profile determines how the tool interacts with previously formed sections.
Gooseneck geometry can provide clearance that a taller straight punch cannot.
Machine daylight and clamping dimensions limit which punch configurations can be used.
Tool load capacity must match the bending force.
Bending sequence must be considered before selecting tooling for multi-bend components.
For manufacturers specifying press brake tooling, the most reliable approach is therefore to select the punch around the complete part geometry, rather than choosing a tool from punch angle or height alone.
When deep boxes, channels, tall flanges, or multiple consecutive bends are involved, providing the tooling supplier with a complete part drawing can help identify the required punch profile, height, and clearance before production begins.
Related Products
Committed to advancing sheet metal fabrication worldwide, we empower manufacturers through precision engineering and intelligent automation.
Get customized sheet metal processing solutions
Tell us your processing requirements (materials/processes/capacity), and experienced engineers will match you with a combination of high-precision molds and CNC equipment.
Navigation
Navigation
Contact Us
Tel.: +86 255 726 8550
+86 255 726 8551
E-mail: cnstamp@cnstamp.net
Add.: Mingjue Industrial Zone, Shiqiu, Lishui, Nanjing City, Jiangsu China 211223
Send Us A Message
Send Us A Message
