Press Brake Tooling Selection: Types & Rules to Follow

Selecting the right press brake tooling is essential for achieving precision, efficiency, and safety in sheet metal bending. With so many options available, understanding the types of press brake tools and the rules for choosing them is critical for manufacturers, fabricators, and engineers.

Types of Press Brake Tooling

Press brake tooling comes in various shapes, sizes, and materials. Each type is designed for specific bending applications:

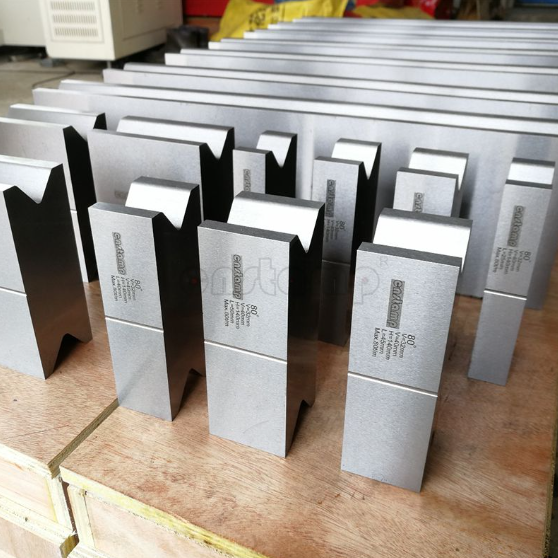

1. V-Dies

V-dies are the most common press brake tools. They consist of a V-shaped groove where the sheet metal is bent.

• Standard V-Dies: Suitable for general bending tasks.

• Narrow V-Dies: Offer tighter bend radii for thinner sheets.

• Wide V-Dies: Best for thicker or heavier sheets, reducing deformation.

2. Punches

Punches are upper press brake tools that work with corresponding dies. They are classified based on their profile:

• Acute Angle Punches: Create sharp bends.

• Radius Punches: Produce rounded bends for improved material flow.

• Specialty Punches: Customized shapes for complex bending operations.

3. Combination Tooling

Combination tooling allows multiple bend operations in a single press brake pass, reducing setup time and improving efficiency.

4. Specialty Dies

Specialty dies, such as hem dies, offset dies, and gooseneck dies, are designed for intricate bending tasks or avoiding interference with previously bent parts.

Key Factors to Consider When Selecting Press Brake Tooling

Choosing the right tooling involves more than matching a punch to a die. Consider these key factors:

Material Thickness and Type

The thickness and type of sheet metal (steel, aluminum, stainless steel) determine the die opening and punch angle needed for precise bends.

Bend Angle and Radius

Ensure that the punch and die are compatible with the desired bend angle and internal radius. Using the wrong tooling can cause cracks, springback, or poor edge quality.

Press Brake Capacity

The tonnage of the press brake limits the size and thickness of the material you can bend. Always verify that the tooling matches your machine’s capacity.

Tooling Material and Coating

High-quality tool steel or carbide tooling improves durability and wear resistance. Coatings like TiN (Titanium Nitride) can reduce friction and extend tool life.

Safety and Maintenance

Proper tooling selection reduces the risk of accidents and ensures smoother operation. Regular inspection and maintenance prevent tool damage and bending errors.

Rules to Follow for Efficient Press Brake Tooling Use

1. Match the Die Width to Sheet Thickness – The die opening should generally be 6–10 times the material thickness.

2. Avoid Overloading the Press Brake – Check tonnage requirements to prevent equipment damage.

3. Use Proper Backgauge Settings – Accurate positioning ensures repeatable and precise bends.

4. Select the Correct Punch Angle – Standard angles are 30°, 45°, 60°, and 90°, depending on bend requirements.

5. Invest in High-Quality Tooling – Durable materials reduce downtime and improve bending consistency.

6. Keep Tooling Clean and Lubricated – Prevents scratches and maintains accurate bends.

Conclusion

Selecting the correct press brake tooling is crucial for precision, productivity, and safety in metal fabrication. Understanding the types of punches and dies, considering material characteristics, and following proper selection rules ensures high-quality results every time.
