Standard vs Custom Press Brake Tooling: How to Choose for Your Bending Application

Choosing the right press brake tooling is not only about matching a punch and die to a press brake. Material thickness, bend angle, inside radius, part geometry, bending length, tonnage and machine clamping system all influence tooling selection. For sheet metal fabricators, the decision often comes down to whether a standard punch-and-die combination can handle the job or whether custom tooling is required.

Cnstamp specializes in press brake tooling for a wide range of machine systems, including tooling compatible with Amada/Promecam, Trumpf, LVD, Bystronic, EHT and Weinbrenner press brakes. Its product range includes punches, dies and application-specific tooling for both general sheet metal work and heavy-duty bending.

When Is Standard Press Brake Tooling the Better Choice?

Standard tooling is usually the first option for common bending operations such as 90-degree bends, channels, boxes and general sheet metal components.

It is particularly suitable when:

• Part geometry is relatively simple

• Bend angles and radii are conventional

• Production changes frequently between different parts

• Standard V-die openings can accommodate the required material thickness

• Fast tooling replacement is important

• The same tooling will be used across multiple production jobs

Using standardized tooling also makes replacement and inventory management easier. Fabricators running machines from established press brake brands can select tooling according to the corresponding clamping and tooling system rather than developing a new tool for each part.

Cnstamp organizes its press brake tooling around major machine types, with dedicated punch and die ranges for Amada, Trumpf, LVD, Bystronic, EHT and Weinbrenner systems.

When Should You Consider Custom Press Brake Tooling?

Standard punches and dies cannot solve every bending problem. A custom tool becomes more valuable when the part geometry creates interference or when the required bend cannot be produced reliably with conventional tooling.

Typical situations include:

Deep U-shaped parts.
A conventional straight punch may collide with the workpiece during the second or subsequent bend. A gooseneck or specially designed punch can provide the clearance needed to complete the part.

Large-radius bending.
Heavy plate, architectural components and structural fabrication may require a larger bending radius than standard tooling can provide.

Special profiles.
Channels, offsets, Z-bends, hems and unusual formed sections may require dedicated punch-and-die combinations to reduce multiple bending operations.

Heavy plate applications.
Mining machinery, construction equipment and other heavy-industry parts can require long tools, wide V openings and significantly higher load capacity.

For example, Cnstamp supplies specialized LVD-style tooling for deep U-shaped bending and large multi-V dies intended for tandem press brakes used in thick-plate fabrication. Its large multi-V dies can be manufactured in lengths up to 6000 mm with V openings covering approximately V30 to V240, depending on the application.

Match the Tooling to Your Press Brake System

Tool compatibility should be checked before evaluating the bending geometry.

Different press brakes use different tooling and clamping interfaces. A punch designed for one system cannot automatically be installed on another machine without confirming the tooling standard, tang geometry, clamping method and dimensions.

Cnstamp supplies press brake tooling compatible with machines including Amada, Trumpf, LVD, Bystronic, Safan Darley, EHT, Weinbrenner, Yawei, JFY, Baykal, Durma, Ermaksan, MVD, Accurpress and other press brake systems.

When requesting tooling, buyers should therefore provide the press brake brand and model or a drawing of the existing tooling interface.

Consider Material Thickness and V-Die Opening Together

The die opening has a direct influence on bending force, inside radius and the ability to form the material without damaging either the part or the tooling.

A V opening that is too narrow can require excessive tonnage and increase tooling stress. An opening that is too large may produce an inside radius or flange condition that does not match the drawing.

Before selecting a die, fabricators should identify:

• Material type

• Material thickness

• Required inside bend radius

• Bend angle

• Minimum flange length

• Bending method

• Available press brake tonnage

These parameters should be evaluated together rather than selecting a die only by material thickness.

Do Not Ignore Tool Height and Workpiece Clearance

Tool height is especially important for boxes, deep channels and components containing previously formed flanges.

A standard straight punch may successfully make the first bend but interfere with the workpiece during later bending steps. A taller punch, gooseneck punch or customized profile may provide the required clearance.

Cnstamp's catalog includes multiple punch geometries and heights, including straight and gooseneck configurations for different bending requirements.

For complex components, supplying the complete part drawing is more useful than providing only the required bend angle.

Tooling for Heavy-Duty and Tandem Press Brake Applications

Heavy plate bending creates a different set of requirements from conventional sheet metal fabrication.

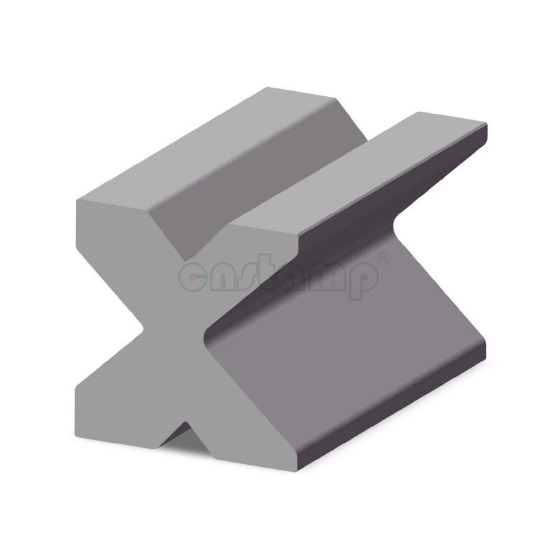

Long structural components may be formed using tandem press brakes, where tooling alignment, section consistency and load capacity become particularly important. Large multi-V dies can provide several die openings within one tooling body, allowing operators to change bending conditions without replacing an entire long die set.

Cnstamp highlights large multi-V tooling for heavy-industry applications such as mining equipment and thick-plate bending.

For these projects, buyers should provide not only material thickness and bend length but also maximum tonnage, machine configuration and the range of plate thicknesses expected in production.

What Information Should You Send to a Press Brake Tooling Manufacturer?

A useful tooling quotation begins with complete bending information. Ideally, provide:

• Press brake brand and model

• Tooling/clamping system

• Workpiece drawing

• Material type

• Material thickness

• Bend angle

• Inside radius

• Bending length

• Minimum flange dimensions

• Required quantity

• Current tooling drawings, if replacing existing tools

• Any collision or forming problems with the existing setup

Cnstamp positions its service around matching tooling and CNC sheet metal equipment to the customer's material, process and production requirements. In addition to press brake tooling, the company supplies turret punch tooling and sheet metal machinery such as press brakes and deburring equipment.

Standard Tooling or Custom Tooling?

The best choice depends on the actual bending task.

Use standard press brake tooling when the component can be produced efficiently with conventional punches and dies and production flexibility is important.

Consider custom press brake tooling when the part involves deep profiles, unusual geometry, restricted clearance, special radii, heavy plate or a forming operation that would otherwise require several separate bending steps.

Rather than selecting tooling only from a catalog, evaluate the machine, material, part drawing, bend sequence and required production output together. For difficult bending applications, sending the complete workpiece drawing to the tooling manufacturer can help determine whether an existing standard tool is sufficient or a customized punch-and-die solution will provide a more reliable result.
