The Rules of Press Brake Tool Selection

Selecting the right press brake tooling is essential for achieving accurate, efficient, and safe metal bending operations. The performance of your press brake depends not only on the machine itself but also on the compatibility, quality, and suitability of the tooling. Understanding the key rules for press brake tool selection can save time, reduce waste, and extend the life of both tools and machines.

1. Consider Material Type and Thickness

The first step in selecting press brake tooling is to assess the material you will bend. Different metals, such as steel, aluminum, or stainless steel, have varying tensile strengths and elasticity. Tooling must be strong enough to withstand these forces without deforming. Additionally, the material thickness directly affects the tooling choice:

• Thin materials require sharp, precise dies to prevent tearing or deformation.

• Thick materials demand robust, reinforced tools to handle higher tonnage and maintain bend accuracy.

2. Match the Tooling to the Press Brake Tonnage

Every press brake has a maximum tonnage rating, which determines the force it can apply. Tooling must be selected in accordance with this capacity to avoid overloading the machine:

• Use smaller V-dies for thinner materials, reducing required tonnage.

• Larger V-dies or heavier punches are suitable for thicker or stronger metals, ensuring the bend is complete without damaging the tooling.

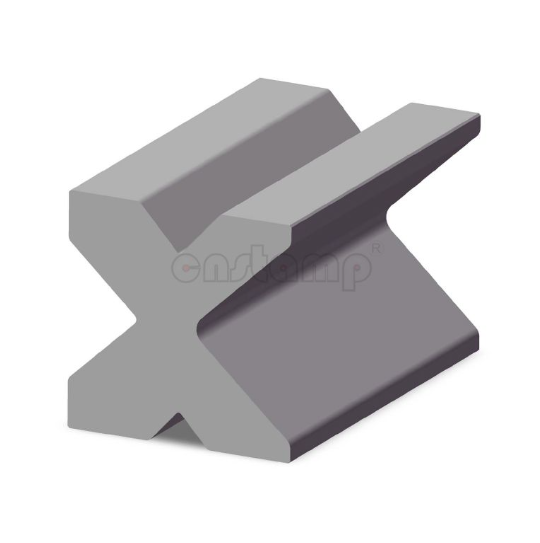

3. Select the Correct Die Opening

The die opening, or V-width, is crucial in achieving precise bends. A general guideline is:

• Die opening ≈ 8 × material thickness for mild steel

• Adjustments may be needed for different alloys or desired bend angles

A correctly sized die minimizes springback, improves bend consistency, and prevents tool damage.

4. Choose Tooling Based on Bend Angle and Part Design

Different bend angles and geometries require specific punch and die types:

• Air bending: Uses standard V-dies and allows flexibility for multiple angles.

• Bottoming or coining: Requires accurately matched punch and die profiles for precise angles and minimal springback.

• Special profiles: U-bends, channel bends, or complex shapes may require custom tooling to ensure accuracy and reduce stress on the workpiece.

5. Consider Tooling Material and Coating

High-quality tooling materials and coatings increase durability and reduce wear:

• Tool steel: Offers excellent hardness and long life.

• Hardened steel or carbide tips: Suitable for abrasive or high-volume applications.

• Surface coatings: Nitride or chrome coatings reduce friction and prevent corrosion.

6. Ensure Tooling Compatibility

Not all press brake tooling fits every machine. Verify compatibility with your press brake’s brand and model, including punch retention systems and die seating. Using incompatible tools can compromise safety and reduce bending precision.

7. Factor in Productivity and Maintenance

The right tooling reduces setup time and downtime. Features such as quick-change punches, standardized die sizes, or modular tooling systems improve workflow efficiency. Regular inspection and maintenance prolong tool life and maintain consistent bending quality.

Conclusion

Press brake tooling selection is a combination of art and engineering. By carefully considering material type, thickness, tonnage, die size, part design, tooling quality, and machine compatibility, manufacturers can achieve accurate bends, minimize scrap, and extend the service life of both tools and machines. Following these rules ensures that your press brake performs at its best, every bend, every time.
