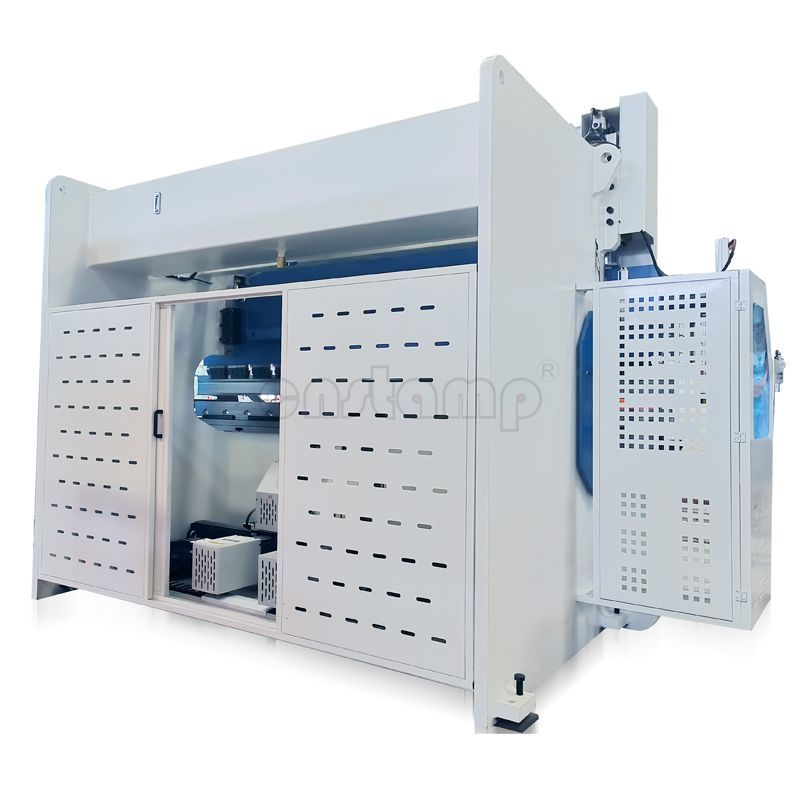

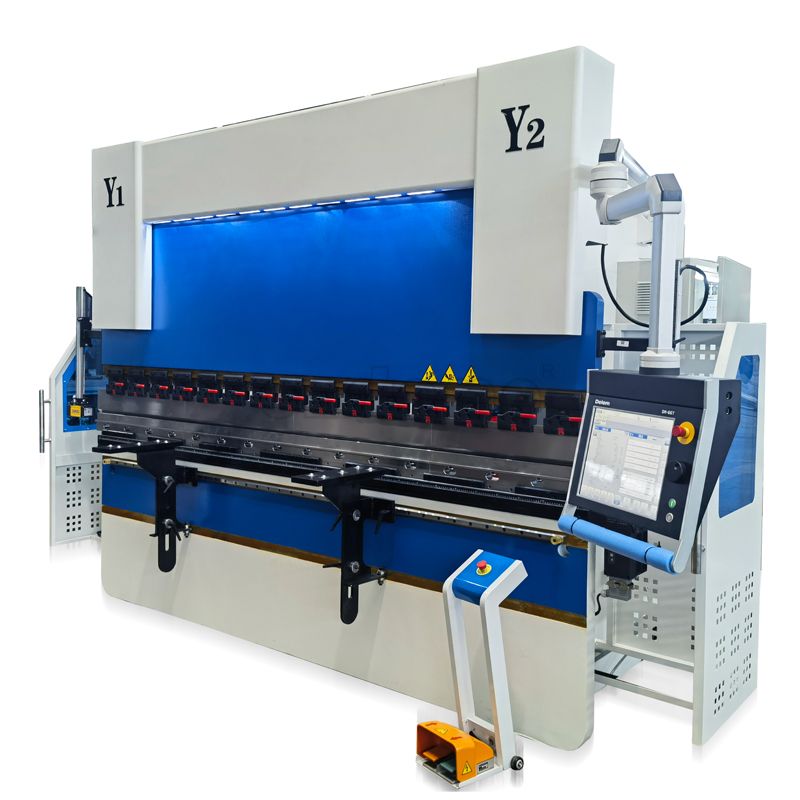

High-end Customization CNC Press brake
No. | Name | Parameter |
1 | Nominal force | 1000 KN |
2 | Worktable length | 3200mm |
3 | Worktable height | 800mm |
4 | Distance between vertical | 2600mm |
5 | Stroke | 200mm |
6 | Equipping die height | 450mm |
7 | Throat depth | 400mm |
8 | Control axes 4+1 Axes | Y1, Y2, X1, X2, Z1, Z2, R1, R2+V |
Parameters
Name | Parameter | Unit | ||
1 | Nominal force | 1000 | KN | |
2 | Worktable length | 3200 | mm | |
3 | Worktable height | 800 | mm | |
4 | Distance between vertical | 2600 | mm | |
5 | Stroke | 200 | mm | |
6 | Equipping die height | 450 | mm | |
7 | Throat depth | 400 | mm | |
8 | Control axes 4+1 Axes | Y1, Y2, X1, X2, Z1, Z2, R1, R2+V | ||
9 | Y axis working speed | Quick down | 120 | mm/s |
Working | 10 | mm/s | ||
Return | 110 | mm/s | ||
10 | Y axis repeat position accuracy | ±0.01 | mm | |
11 | Main servo motor | Power | 7.5 | KW |
Brand | ESTUN | |||
Speed | 1446r/min | |||
12 | Work piece Precision | Straightness | 0.3 | mm/m |
Angle | ±30’ | /m | ||
13
| Back gauge X axis | Stroke | 600 | mm |
Max. speed | 200 | mm/s | ||
Repeat position accuracy | ±0.02 | mm | ||
14 | Back gauge R axis | Stroke | 180 | mm |
Max. speed | 150 | mm/s | ||
Repeat position accuracy | ±0.5 | mm | ||
15 |
Dimension (Approximate) | Length | 3800 | mm |
Width | 1700 | mm | ||
Height | 2580 | mm | ||
16 | Weight(Approximate) | 8500 | Kg | |

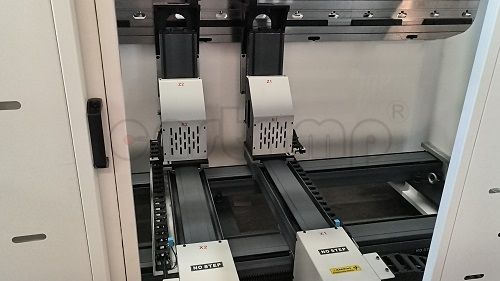

6 axes Backgauge
