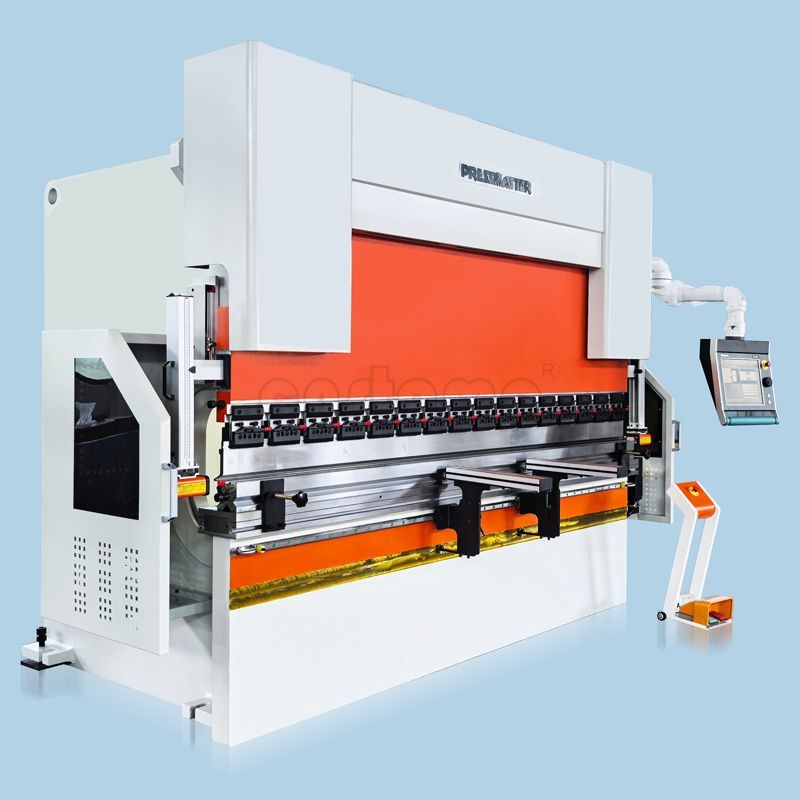

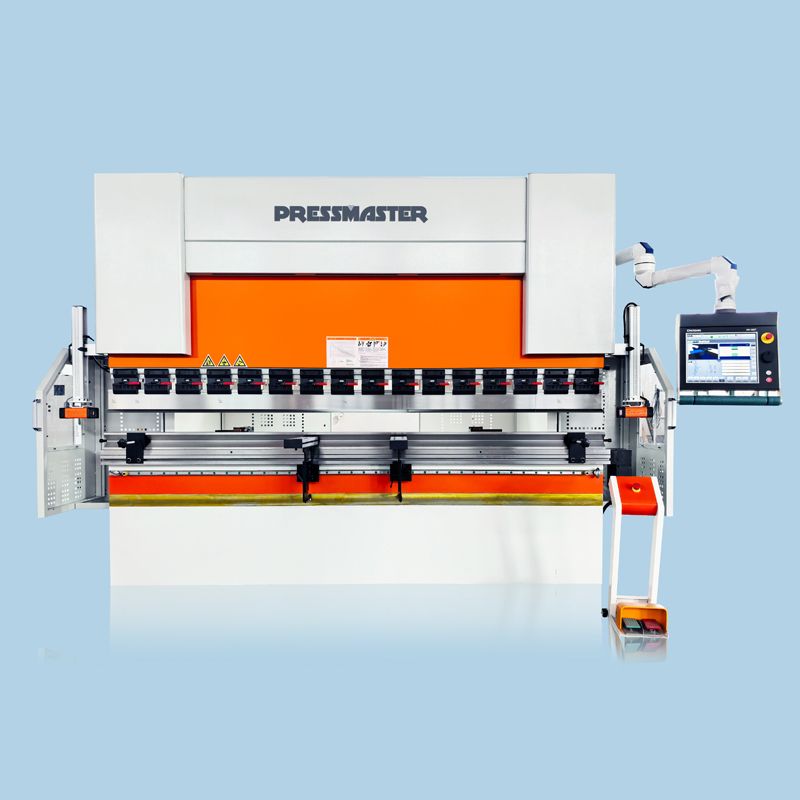

High-end customization CNC press brake
No. | Name | Parameter |
1 | Nominal force | 1600 KN |
2 | Worktable length | 3200mm |
3 | Worktable height | 850mm |
4 | Distance between vertical | 2700mm |
5 | Stroke | 200mm |
6 | Equipping die height | 475mm |
7 | Throat depth | 400mm |
8 | Control axes 8+1Axes | Y1, Y2, X1,X2, R1, R2, Z1, Z2+V |
Parameters
Name | Parameter | Unit | ||
1 | Nominal force | 1600 | KN | |
2 | Worktable length | 3200 | mm | |
3 | Worktable height | 850 | mm | |
4 | Distance between vertical | 2700 | mm | |
5 | Stroke | 200 | mm | |
6 | Equipping die height | 475 | mm | |
7 | Throat depth | 400 | mm | |
8 | Control axes 8+1Axes | Y1, Y2, X1,X2, R1, R2, Z1, Z2+V | ||
9 | Y axis working speed | Quick down | 160 | mm/s |
Working | 10 | mm/s | ||
Return | 150 | mm/s | ||
10 | Y axis repeat position accuracy | ±0.01 | mm | |
11 | Main servo motor | Power | 18 | KW |
Brand | INOVANCE | |||
Speed | 1500r/min | |||
12 | Work piece Precision | Straightness | 0.3 | mm/m |
Angle | ±30’ | /m | ||
13
| Back gauge X axis | Stroke | 600 | mm |
Max. speed | 200 | mm/s | ||
Repeat position accuracy | ±0.02 | mm | ||
14 | Back gauge R axis | Stroke | 200 | mm |
Max. speed | 150 | mm/s | ||
Repeat position accuracy | ±0.05 | mm | ||
15 | Dimension (Approximate) | Length | 4000 | mm |
Width | 1900 | mm | ||
Height | 2600 | mm | ||
16 | Weight(Approximate) | 11000 | Kg | |

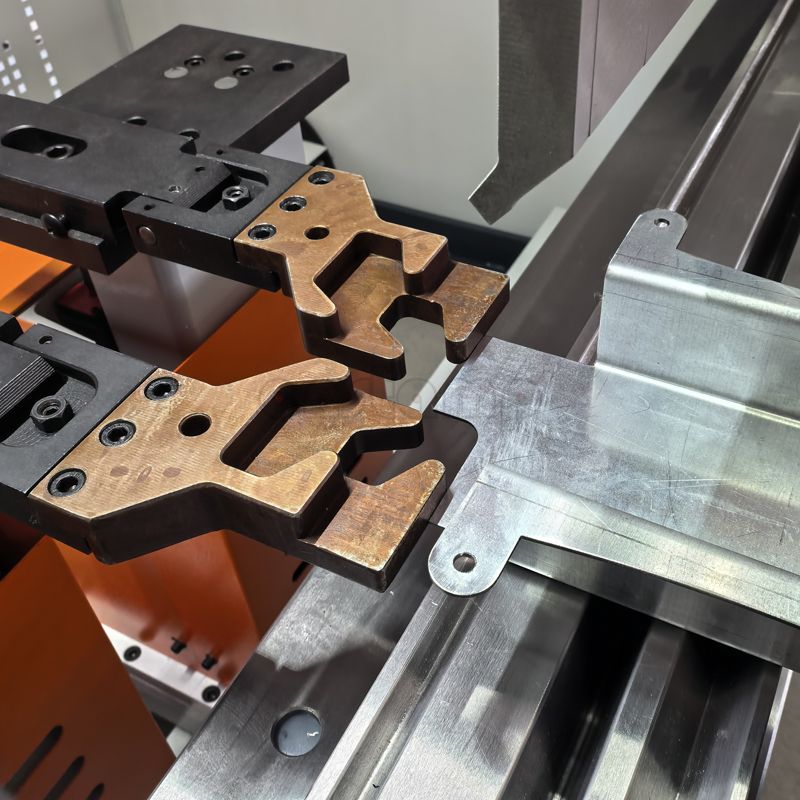

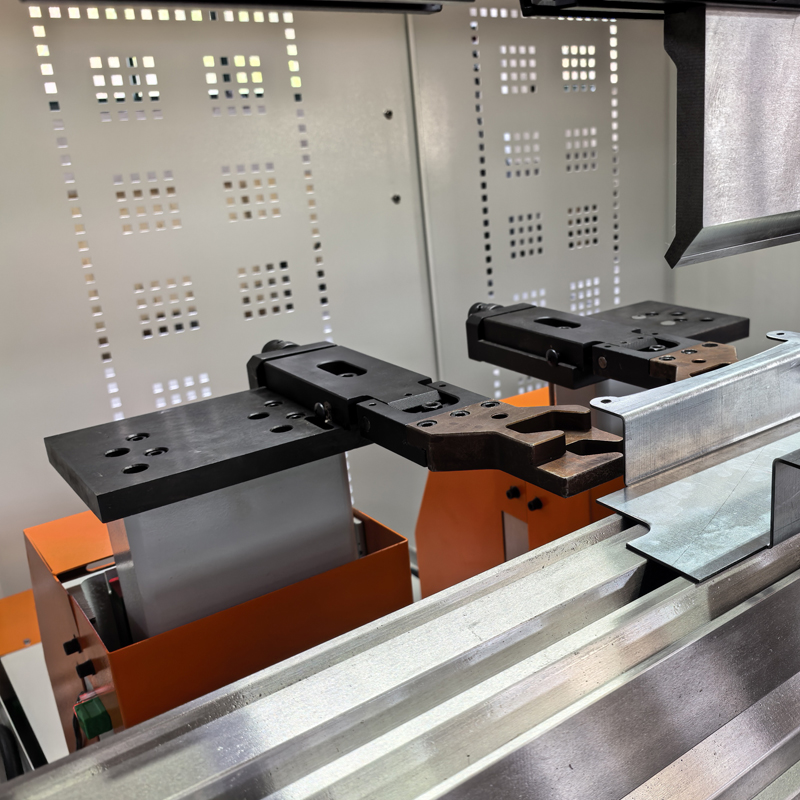

6 axes Backgauge
CNC Controller

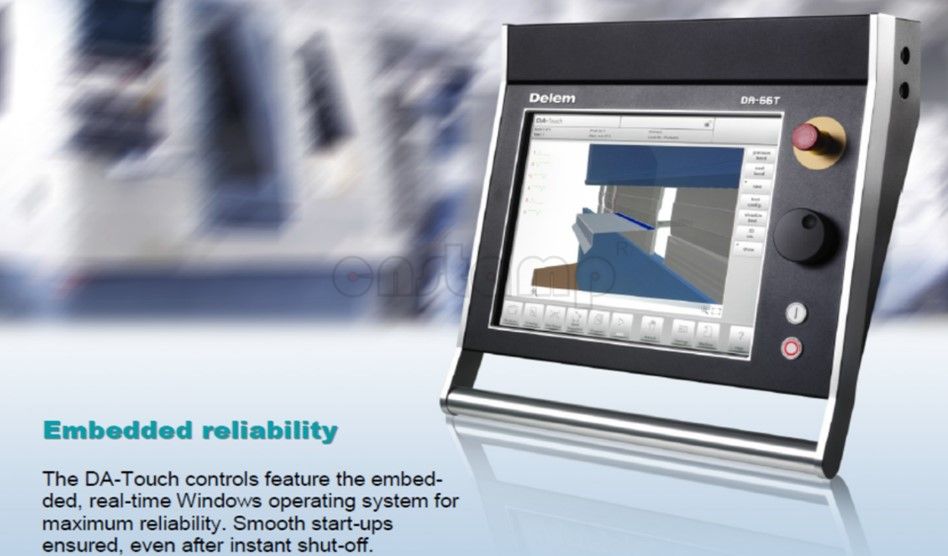

DA-66T Standard configuration
- Colour LCD display
- 17" TFT, high brightness
- 1280 x 1024 pixels, 32 bit colour
- Full touch screen control (IR-touch) - Storage capacity 1 GB
- 3D graphics acceleration
- Standard Windows® networking
- Emergency switch
- Integrated OEM-panel
- USB flash memory drive
- Profile-TL offline software

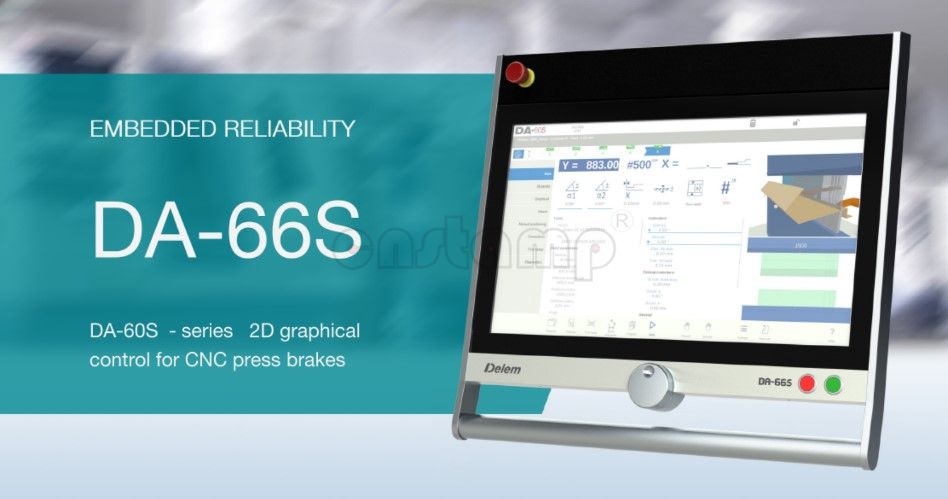

DA-66S Standard configuration
- Colour LCD display
- 24" TFT, high brightness
- 1920 x 1080 pixels, 32 bit colour
- Full touch screen control
- Storage capacity 4GB
- 3D graphics acceleration
- Network connectivity
- Emergency switch
- Integrated OEM-panel
- USB flash memory drive
- Profile-S2D offline software
