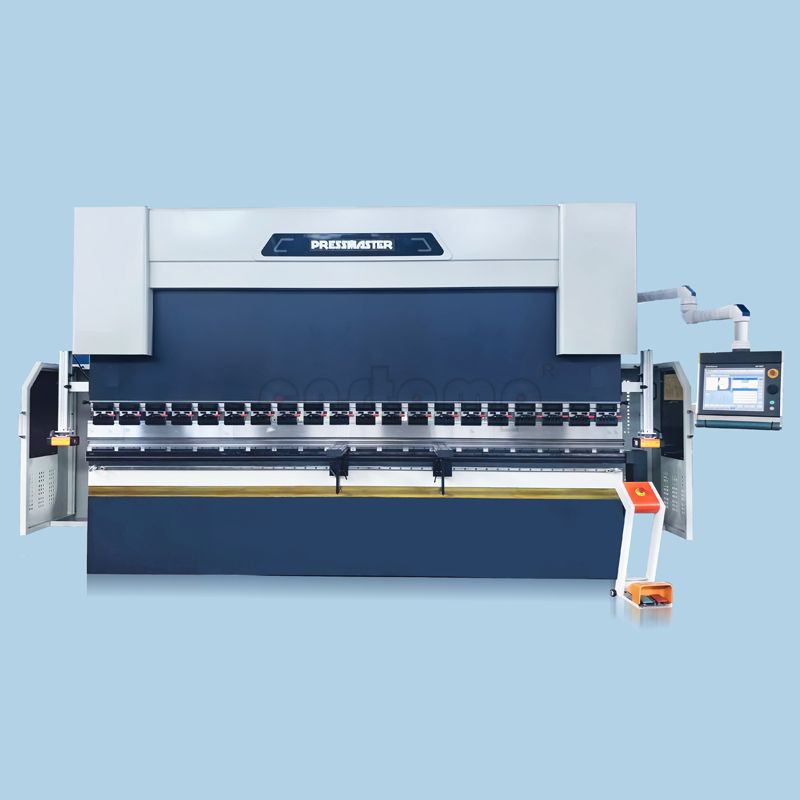

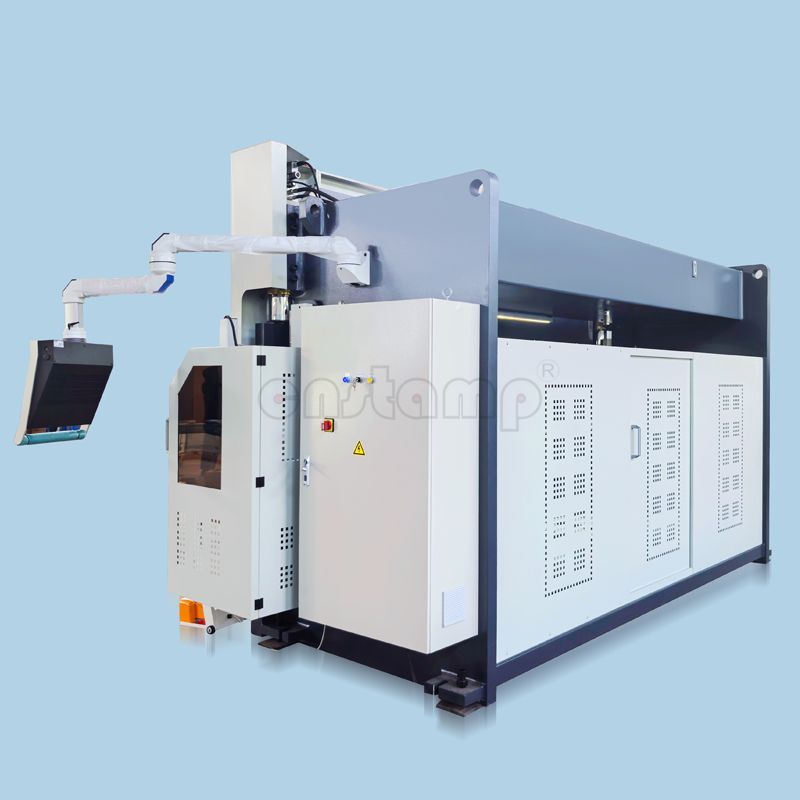

Parameters
Name | Parameter | Unit | ||
1 | Nominal force | 1750 | KN | |
2 | Worktable length | 4000 | mm | |
3 | Worktable height | 850 | mm | |
4 | Distance between vertical | 3600 | mm | |
5 | Stroke | 200 | mm | |
6 | Equipping die height | 500 | mm | |
7 | Throat depth | 450 | mm | |
8 | Control axes 8+1 Axes | Y1, Y2, X1, X2, R1, R2, Z1,Z2+V | ||
9 | Y axis working speed | Quick down | 180 | mm/s |
Working | 10 | mm/s | ||
Return | 150 | mm/s | ||
10 | Y axis repeat position accuracy | ±0.01 | mm | |
11 | Main servo motor | Power | 18 | KW |
Brand | INOVANCE | |||
Speed | 1446r/min | |||
12 | Work piece Precision | Straightness | 0.3 | mm/m |
Angle | ±30’ | /m | ||
13
| Back gauge X axis | Stroke | 600 | mm |
Max. speed | 200 | mm/s | ||
Repeat position accuracy | ±0.02 | mm | ||
14 | Back gauge R axis | Stroke | 200 | mm |
Max. speed | 150 | mm/s | ||
Repeat position accuracy | ±0.05 | mm | ||
15 | Dimension (Approximate) | Length | 4800 | mm |
Width | 1650 | mm | ||
Height | 2600 | mm | ||
16 | Weight(Approximate) | 11000 | Kg | |
6 axes backgauge

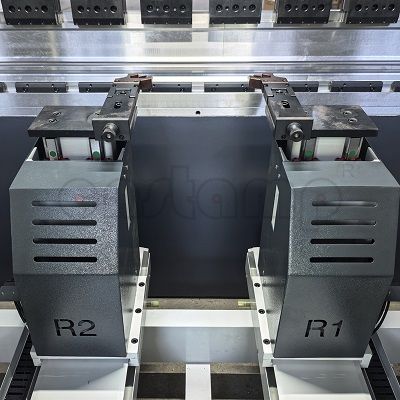

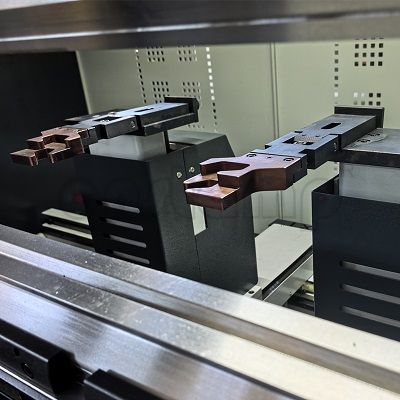

Heavy-duty type back gauge system. Multi-Axis CNC Control: Enables complex positioning X1, X2,Y1, Y2,Z1, Z2, R1,R2+V,(8+1 axes) for intricate bends.
CNC Controller

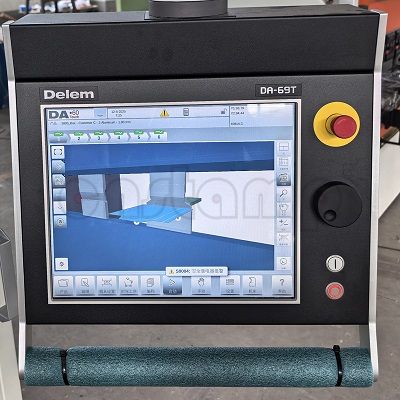

The DA-69T offers 2D as well as 3D programming that includes automatic bend sequence calculation and collision detection. Full 3D machine set-up with multiple tool stations giving true feedback on the product feasibility and handling.
Highly effective control algorithms optimise the machine cycle and minimise set-up time. This makes using press brakes easier, more efficient and more versatile then ever
DA-66T Standard configuration
- Colour LCD display
- 17" TFT, high brightness
- 1280 x 1024 pixels, 32 bit colour
- Full touch screen control (IR-touch) - Storage capacity 2 GB
- 3D graphics acceleration
- Standard Windows® networking
- Emergency switch
- Integrated OEM-panel
- USB flash memory drive
- Profile-T3D offline software

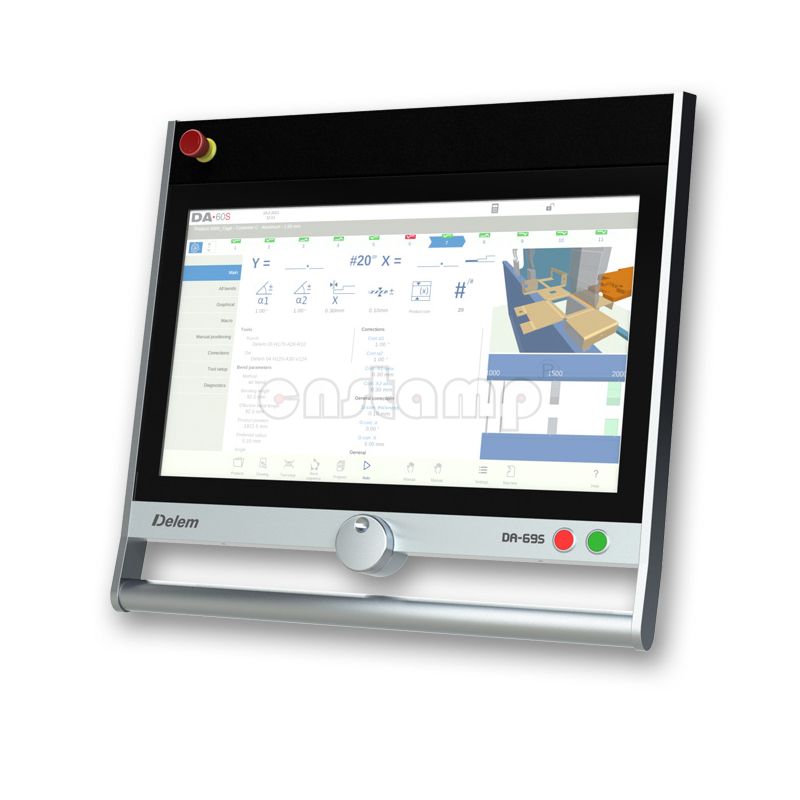

| DA-69S | |
|---|---|
| Standard | |
| Display | Color LCD display |
| Type | 24" TFT, high brightness |
| Resolution | 1920 x 1080 pixels, 32 bit colour |
| Touch sensor | Industrial PCT touch screen control |
| Backlight | LED |
| Storage capacity | 4 GB |
| Product and tools memory | 3 GB |
| Characteristics | 3D graphics acceleration |
| Networking | Standard Windows® networking |
| Safety system | Emergency switch |
| OEM machine functions | Integrated OEM-panel |
| Exchangeable memory | USB flash memory drive |
| Offline software | Profile-S3D |
| Options | |
