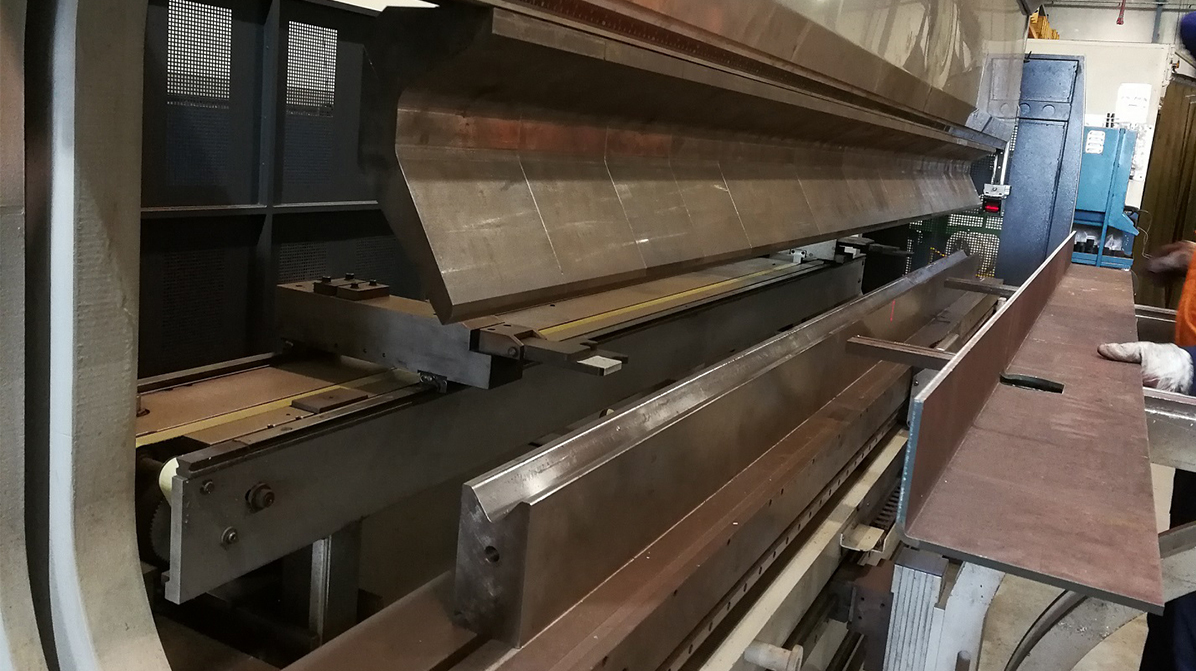

Lvd style press brake tooling-Special designed Big gooseneck punch used on deep U-shape bending for mining equipment.

The large arc design is designed for deep U-shaped (opening height > 150mm) and narrow margin bending requirements. The large curved upper punch can be designed in a segmented combination with lower dies of different opening vees to complete multiple bending processes.

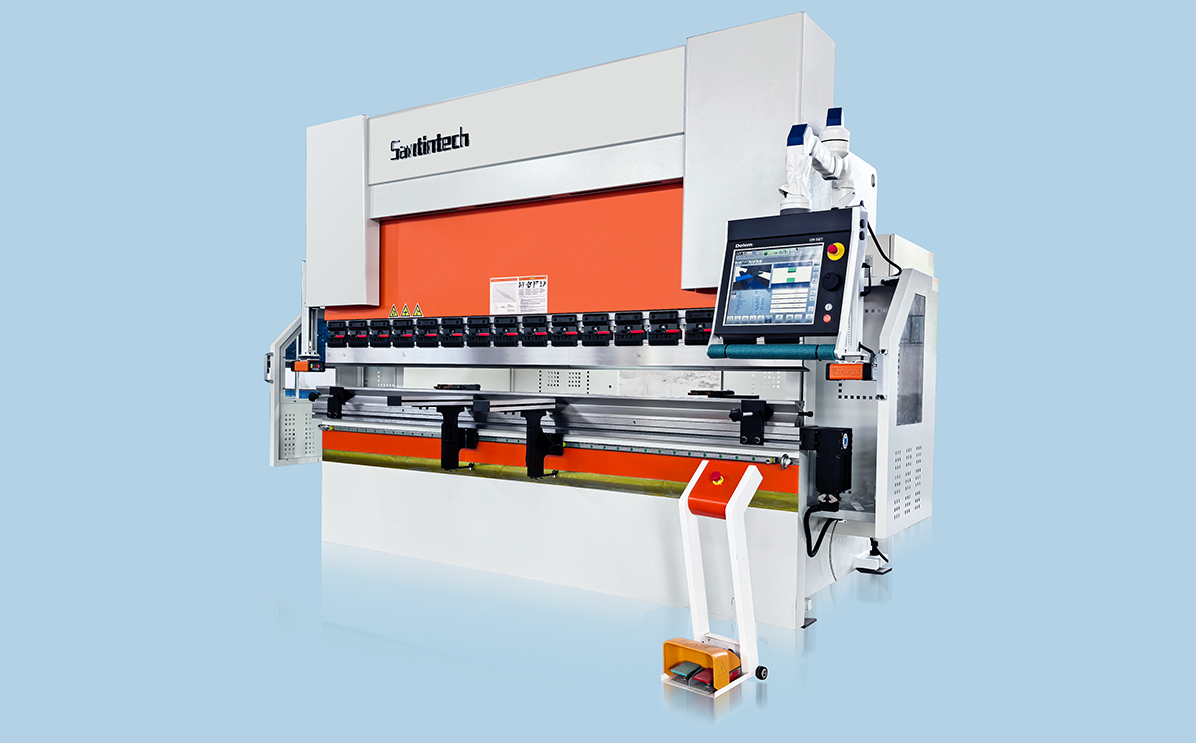

A press brake machine (also known as a brake press and sheet metal bending machine) is a metalworking machine used to bend sheet metal or plate material into specific angles and shapes. It operates by clamping the workpiece between a matching set of tools (a punch and a die) and applying controlled force to create precise bends. Here’s a detailed breakdown of its key features and functions:

With Key Components like

1. Frame: The rigid structure that supports the machine, often C-shaped or straight-sided.

2. Ram (Upper Beam)**: Moves vertically to apply force, carrying the punch (upper tool).

3. Worktable: Holds the dies (lower tool) and remains stationary during bending.

4. Back Gauge: A programmable system that positions the workpiece for accurate bend placement.

5. Control System: Modern machines use CNC (Computer Numerical Control) to automate bend sequences, angle adjustments, and force calculations.

How It Works

- The workpiece is placed on the die, and the ram descends, pressing the punch into the material.

- The material bends around the die’s V-shaped opening, forming a predetermined angle (e.g., 90°, U-shapes, or complex geometries).

- Bending force (tonnage) depends on material thickness, tensile strength, and bend length.

Applications

- Fabricating metal components for industries like aerospace, automotive, construction, and HVAC.

- Creating bends in sheet metal for enclosures, brackets, chassis, and structural parts.

- Compatible with materials ranging from thin aluminum sheets to thick steel plates (up to 100+ mm, depending on machine capacity).

Advantages

- High precision (±0.1° ±0.02mm accuracy with CNC systems).

- Flexibility through interchangeable tools (e.g., specialized punches/dies for radii, hemming, or U-bends).

- Ability to handle complex multi-bend geometries.
