26 degree H196mm
Material 42CrMo/55SiCr Max. 80t/m
Product Parameters

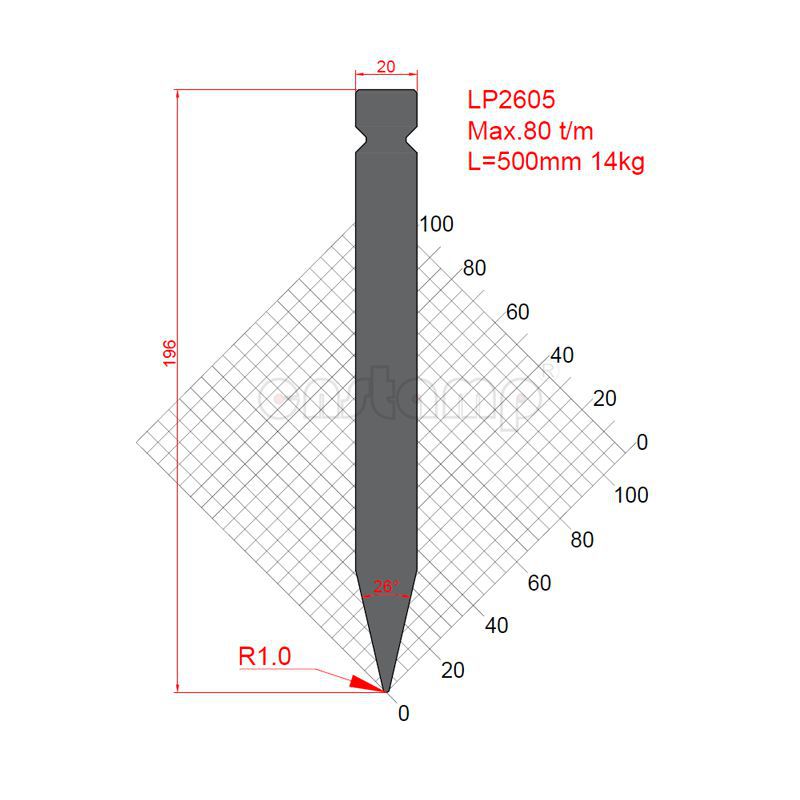

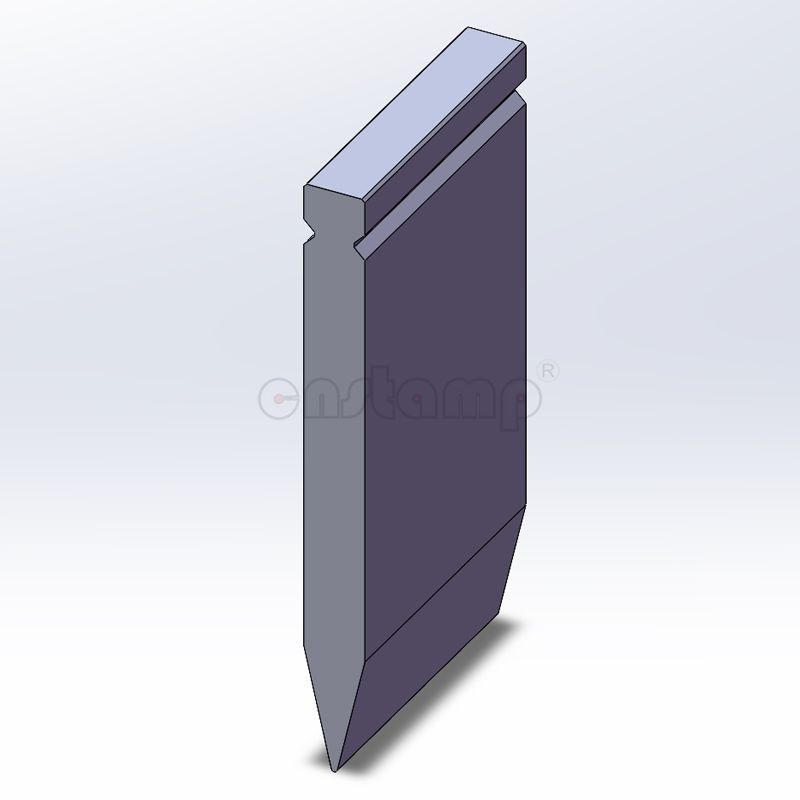

| No. | LP2605 |
| α | 26° |
| Radius | 1.0/3.0 |
| Working Height | 196mm |
| Sectionalized | L550mm |
Compatible
Compatible with LVD press brakes and press brakes equipped with Wila style clamp system
Tool Lengths:

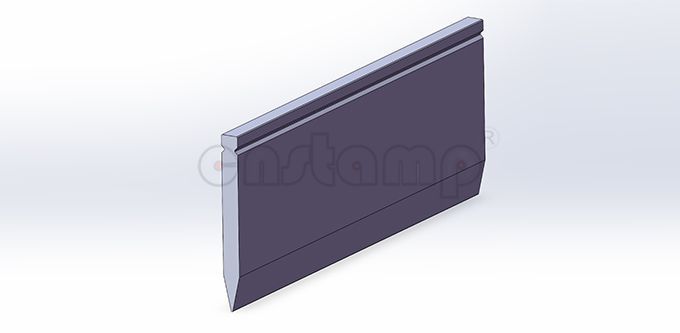

L500/508/510/515mm full length

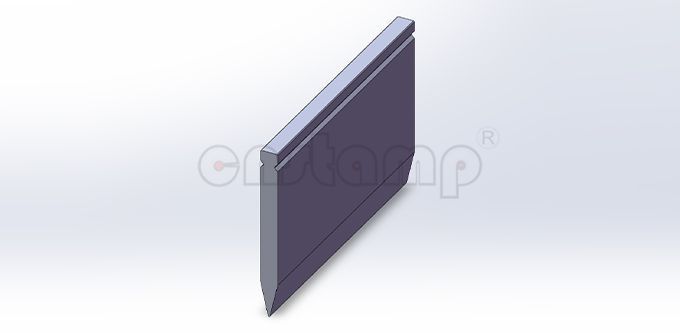

L300mm

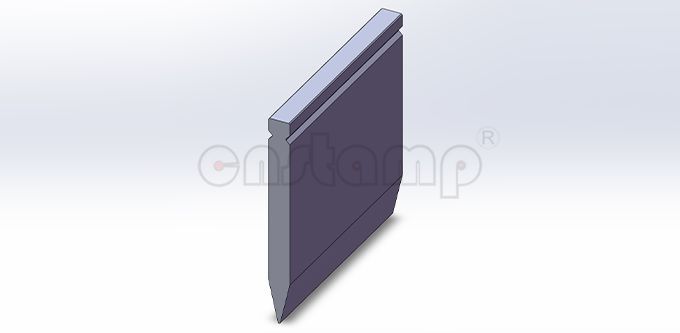

L200mm

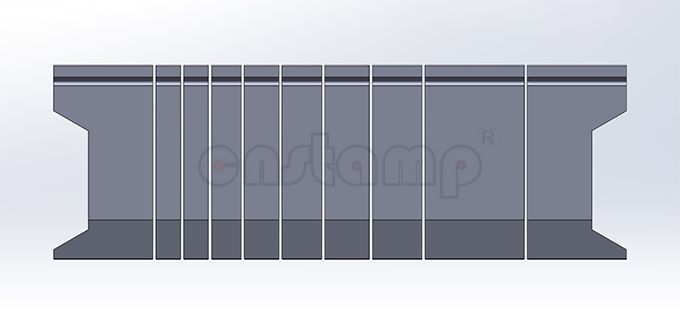

L550mm sectionalized In 10 pieces (100mm left horn+25+25+30+35+40+45+50+100+100mm right horn)
