How To Choose Turret Punch Tooling

Turret punch tooling is essential for high-precision sheet metal fabrication. Choosing the right tools ensures accurate hole punching, consistent part quality, and efficient production. This guide outlines the key factors to consider when selecting turret punch tooling.

1. Identify Material Type and Thickness

Different metals require different tooling considerations:

• Thin Sheets: Use sharp punches and appropriately sized dies to prevent deformation or tearing.

• Thick or High-Strength Metals: Require reinforced or hardened tooling to handle higher punching forces without premature wear.

Selecting tooling based on material and thickness ensures accuracy and prolongs tool life.

2. Match Tooling to Machine Capacity

Every turret punch machine has a maximum punching force:

• Lighter materials and smaller holes require less force, allowing use of standard tooling.

• Heavier materials and larger holes need robust tooling capable of withstanding higher loads.

Correct matching prevents machine overload and improves part quality.

3. Choose the Right Tool Shape and Size

The type of punch and die affects the shape, size, and quality of holes:

• Standard Punches: Ideal for round, square, or rectangular holes.

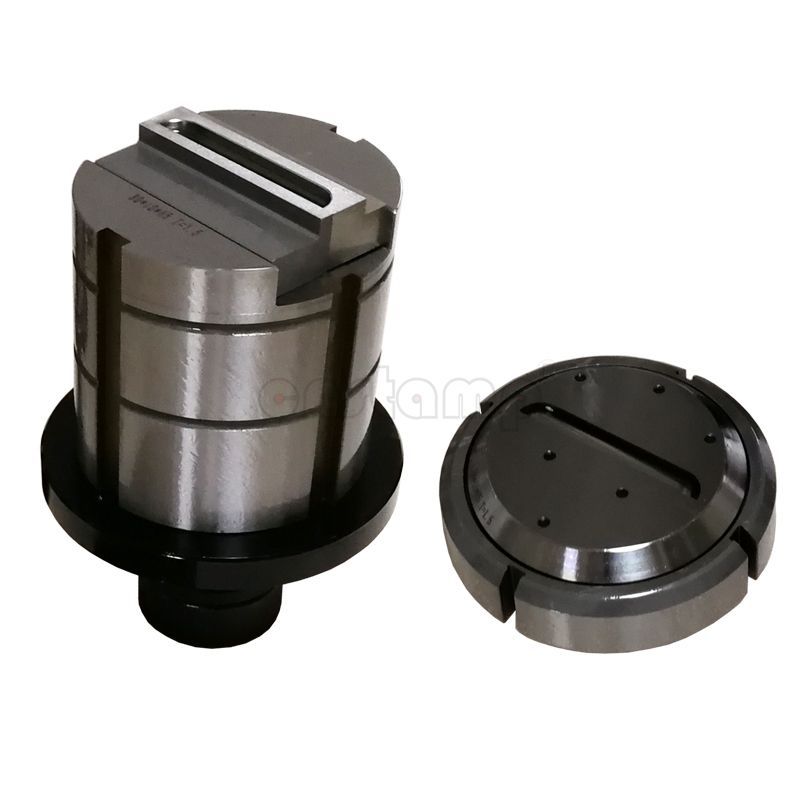

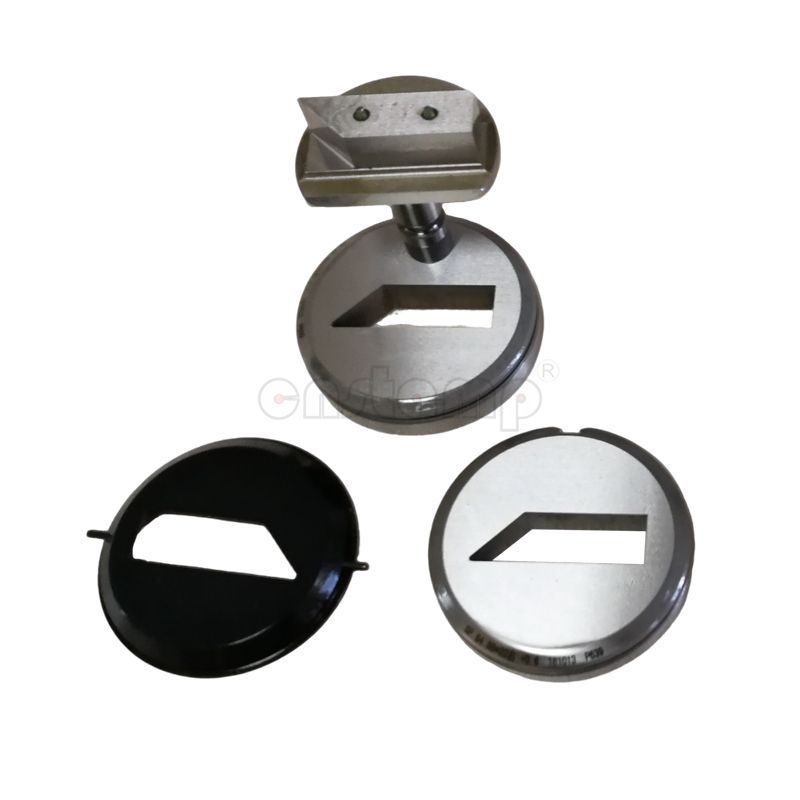

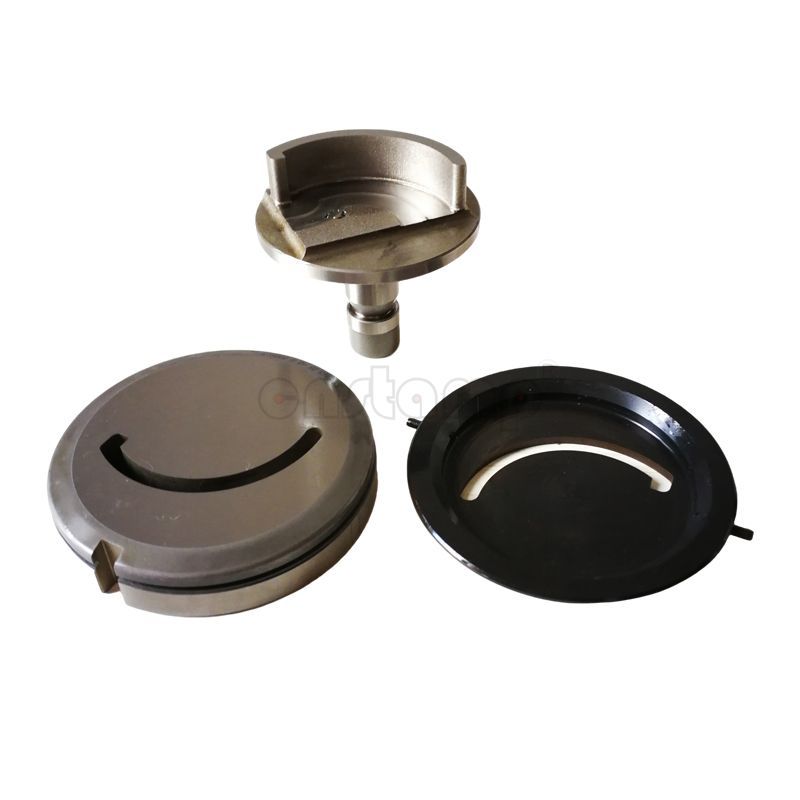

• Forming and Specialty Tools: For embossing, notching, or complex shapes.

Selecting the correct punch and die ensures accurate and clean cuts.

4. Consider Tool Material and Coating

High-quality materials and coatings extend tool life and maintain precision:

• Tool Steel: Offers hardness and durability.

• Hardened or Coated Tips: Reduce wear in high-volume or abrasive applications.

• Surface Treatments (Nitride/Chrome): Lower friction and protect against corrosion.

5. Tooling Compatibility

Ensure that the tooling fits your turret punch model. Proper compatibility guarantees:

• Correct alignment and safe operation.

• Consistent punching quality.

• Longer service life for both the tools and the machine.

6. Maintenance and Longevity

Regular cleaning, inspection, and proper storage maintain performance and reduce downtime:

• Lubricate punches as needed.

• Check for wear or damage before production runs.

• Store tools safely to prevent deformation.
