Turret Press Tooling: Precision Solutions for Manufacturing

Turret press tooling plays a crucial role in modern sheet metal fabrication, providing high-precision punching and forming for a wide range of industrial applications. The right tooling ensures efficiency, accuracy, and consistent quality in high-volume production environments. Understanding the key factors in selecting turret press tooling helps manufacturers optimize their operations and reduce downtime.

1. Tooling Types and Functions

Turret presses use a variety of tooling types to handle different operations:

• Standard Punches and Dies: Ideal for general-purpose punching of holes, slots, and shapes in sheet metal.

• Forming Tools: Designed for bending, embossing, or lancing metal sheets during the punching process.

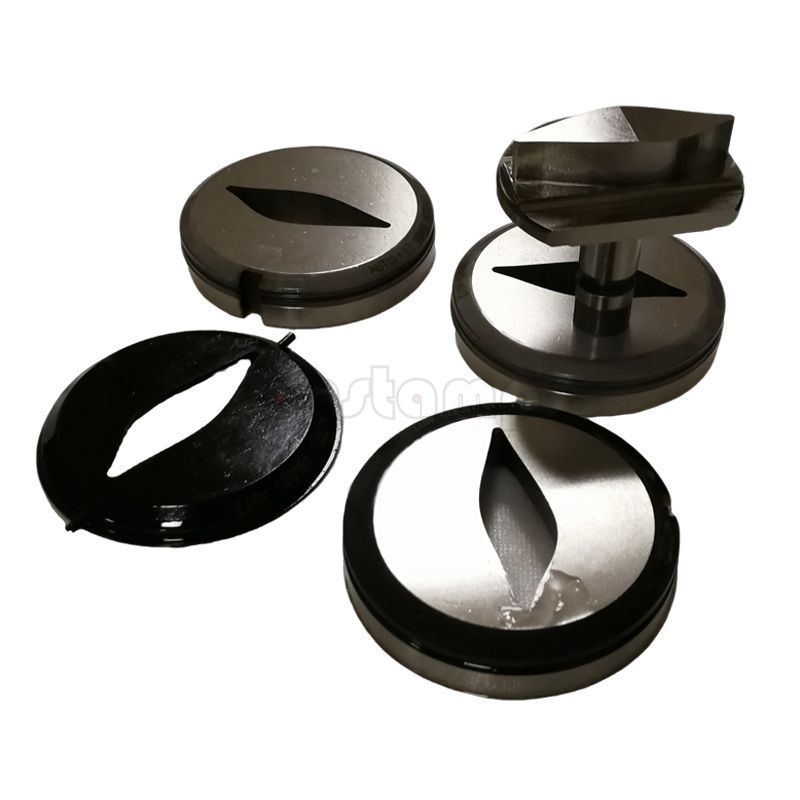

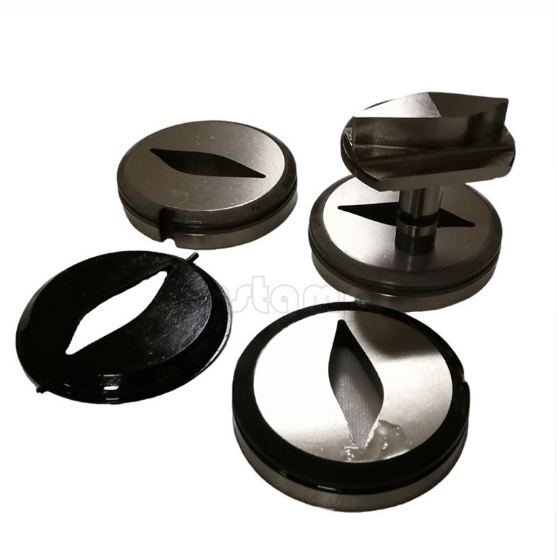

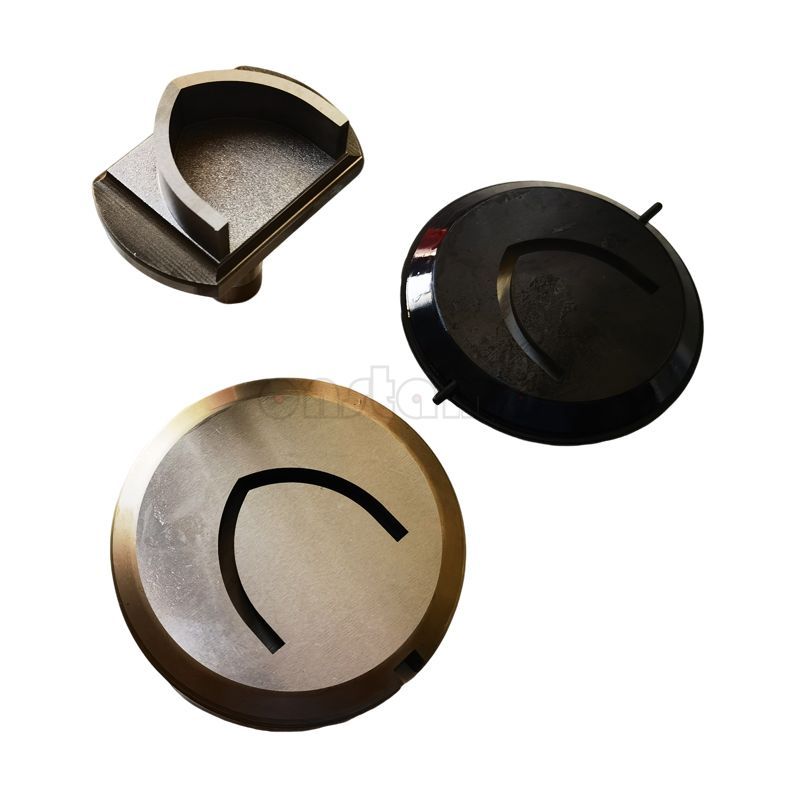

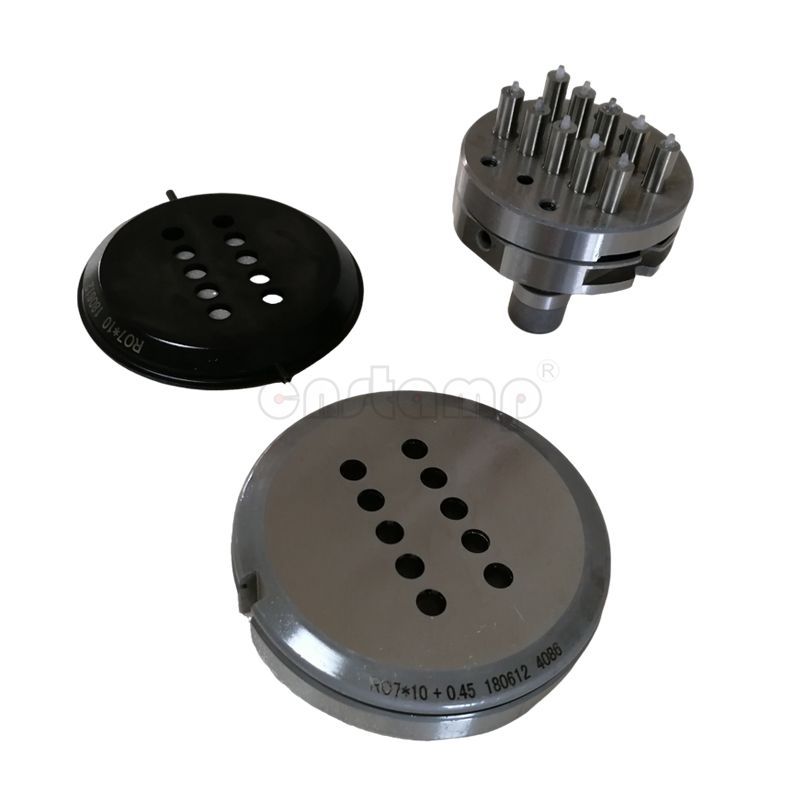

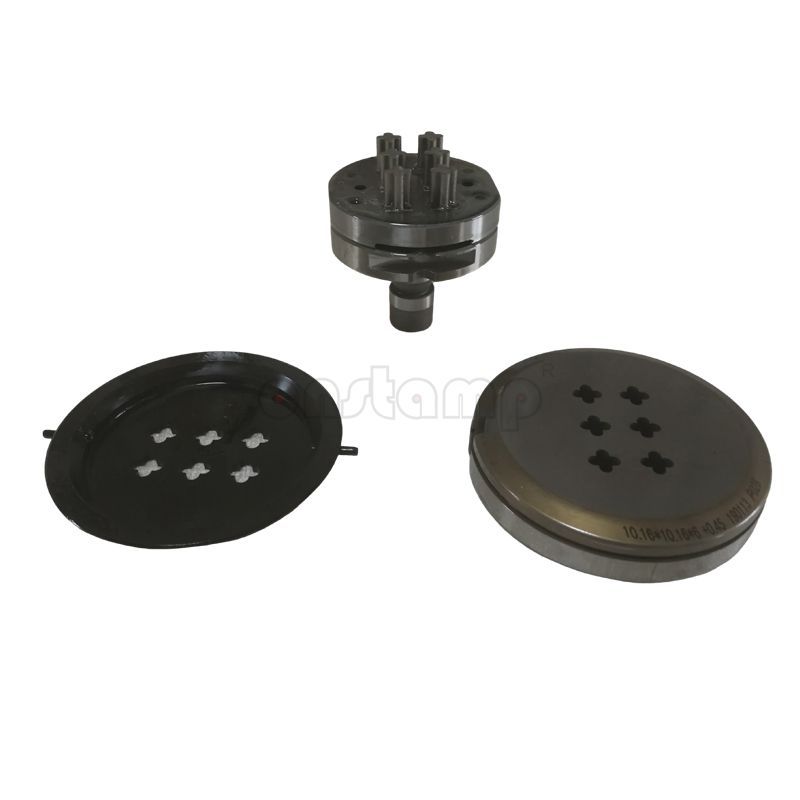

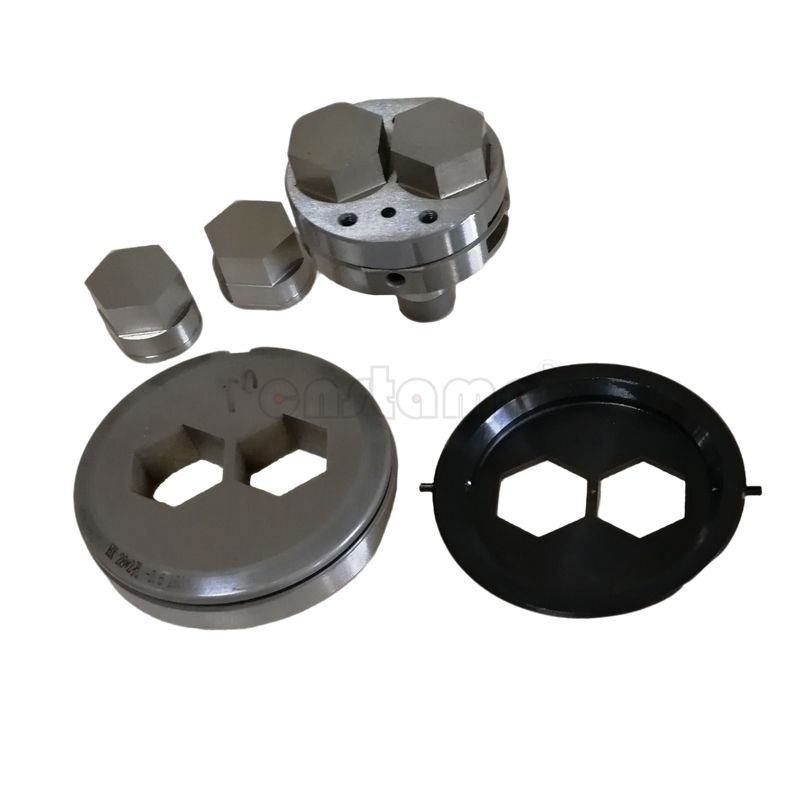

• Specialty Tools: Include notching, nibbling, or multi-functional tools for complex geometries.

Selecting the right combination of tools ensures precision and minimizes scrap material.

2. Material Compatibility

Tooling must match the type and thickness of the material being processed:

• Thin Sheet Metals: Require sharp punches and appropriately sized dies to prevent deformation.

• Thicker or High-Strength Materials: Demand hardened tooling capable of withstanding higher forces without premature wear.

Proper matching extends tool life and maintains consistent part quality.

3. Tooling Precision and Tolerance

High-precision turret press tooling ensures accurate hole placement, consistent dimensions, and smooth edges. Tooling with tight tolerances reduces rework and improves assembly fit for downstream processes. Precision is particularly critical in industries such as electronics, automotive, and aerospace.

4. Durability and Material Quality

The performance of turret press tooling depends on the quality of materials and manufacturing processes:

• Tool Steel: Offers excellent hardness, wear resistance, and durability for extended service life.

• Hardened or Coated Tools: Nitride or chrome coatings reduce friction, prevent corrosion, and maintain sharpness.

Investing in durable tooling reduces machine downtime and improves overall production efficiency.

5. Quick-Change and Modular Systems

Modern turret press tooling often incorporates quick-change or modular designs. These systems allow rapid tool replacement, reducing setup time and increasing production flexibility. Modular tooling also enables customization for specific parts, enhancing efficiency in multi-product manufacturing environments.

6. Maintenance and Safety Considerations

Regular inspection, cleaning, and maintenance are essential for ensuring consistent performance and safety. Proper alignment, lubrication, and storage of turret press tools prevent damage and extend service life, while reducing the risk of machine downtime or workplace accidents.

Conclusion

Turret press tooling is a cornerstone of high-precision metal fabrication. By choosing tooling that matches material properties, production requirements, and machine capabilities, manufacturers can achieve superior accuracy, reduce scrap, and maximize efficiency. Investing in high-quality, durable, and modular tooling ensures reliable performance across a wide range of manufacturing applications.
