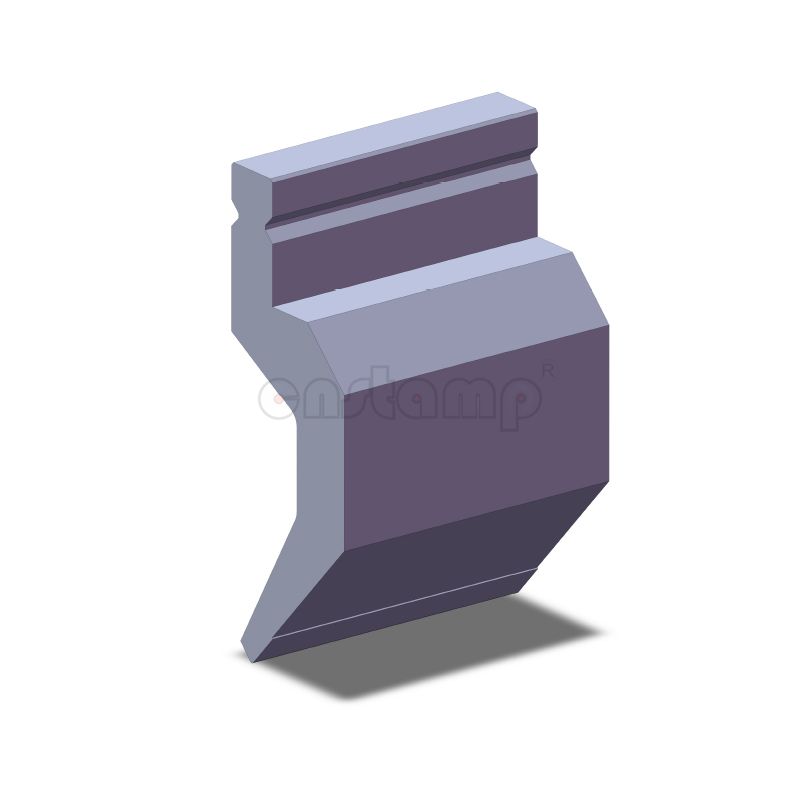

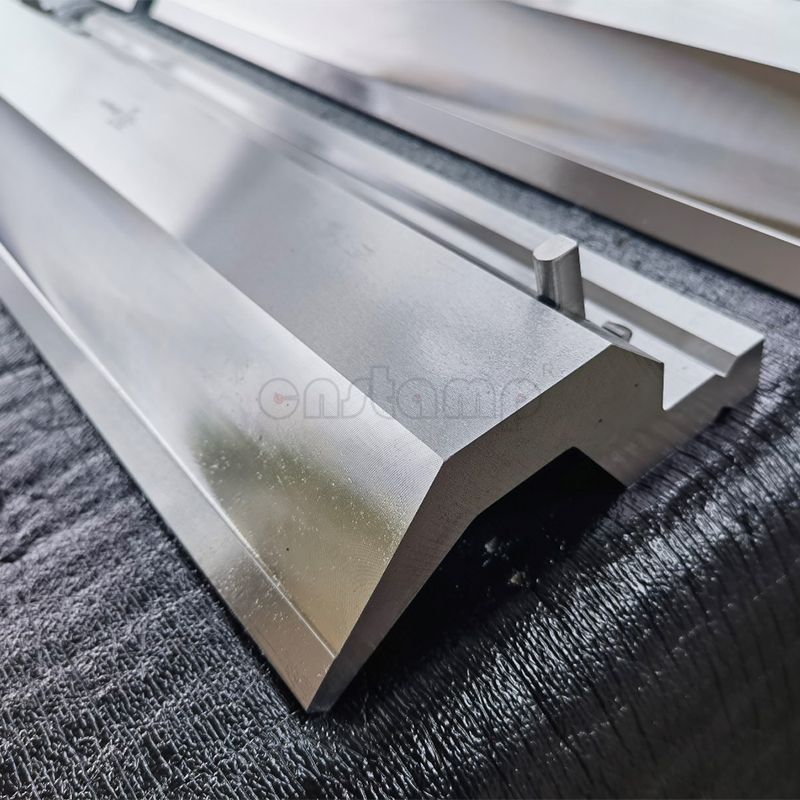

86 degree H117mm Trumpf style press brake punch
Material 42CrMo/55SiCr Max. 80t/m

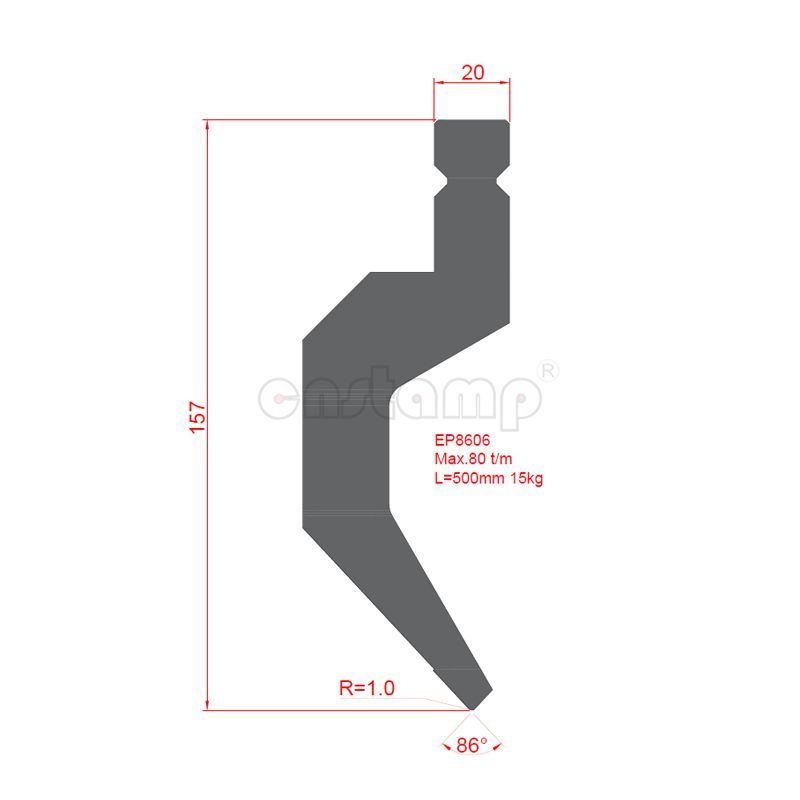

Product Parameters
| No. | EP8606 | |
| α | 86° | |
| Radius | 1.0 | |
| Working Height | 117mm | |
| Sectionalized | L550mm | EP8606S |
Compatible
Compatible with Trumpf press brakes and press brakes equipped with Wila style clamp system
Tool Lengths:

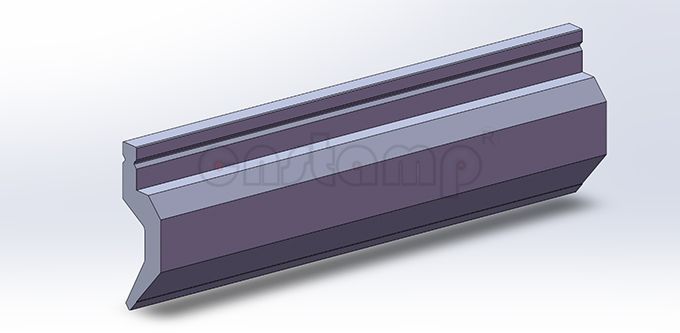

L500/508/510/515mm full length

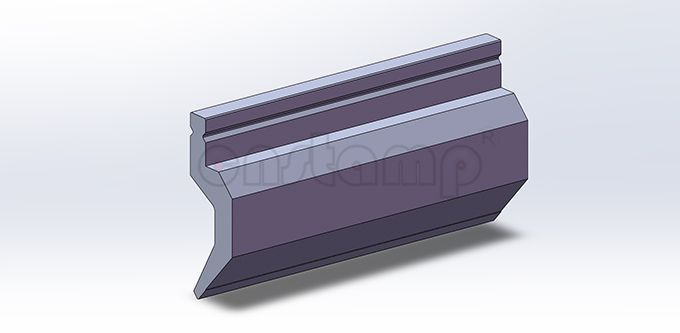

L300mm

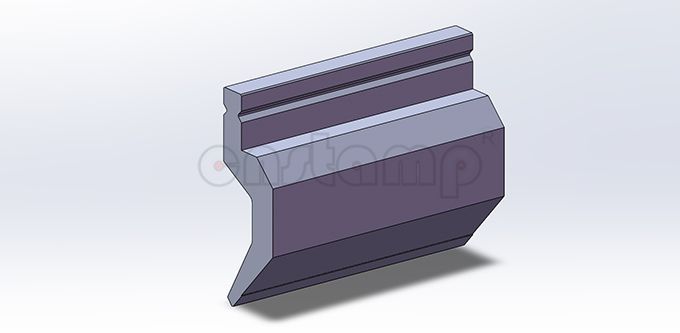

L200mm

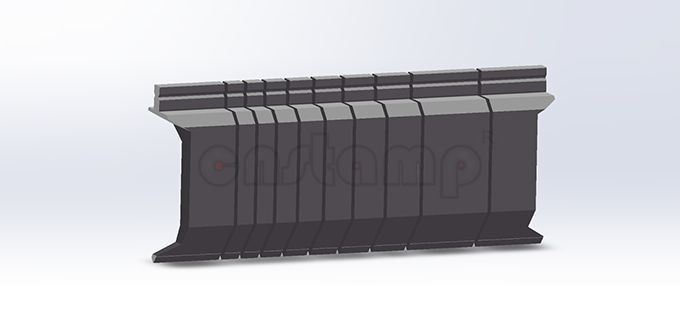

L835mm sectionalized In 10 pieces (100mm left horn+25+25+30+35+40+45+50+100+100mm right horn)
