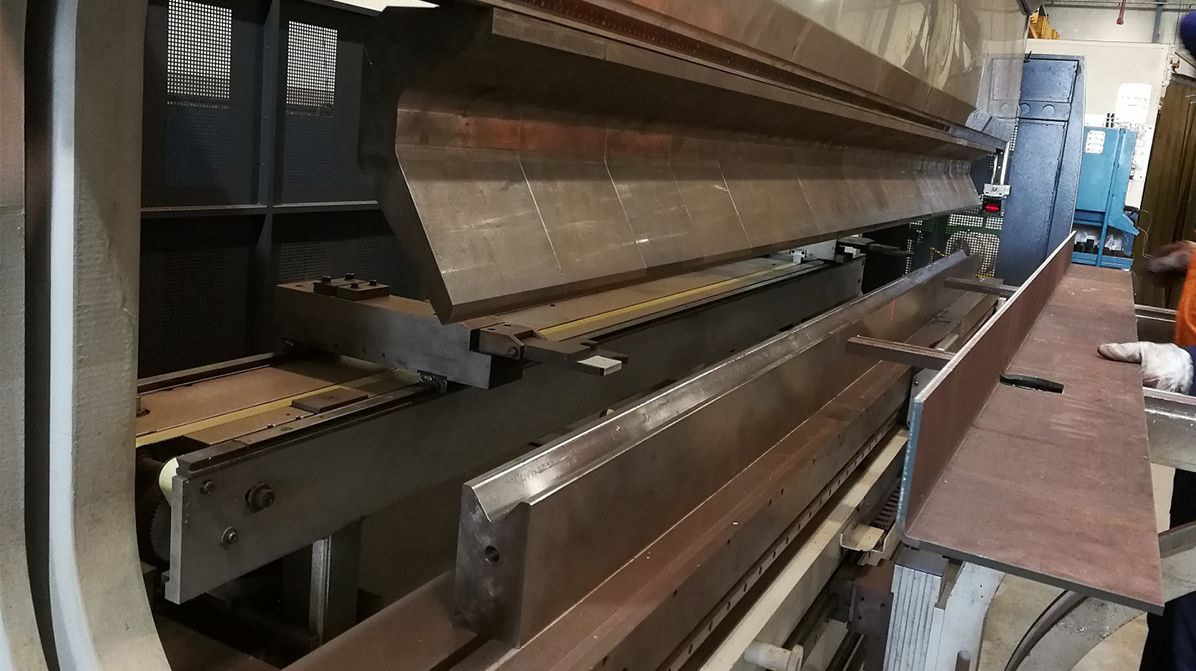

LVD Press Brake Tooling

Compatible with press brakes: LVD, Trumpf, Darley, Safan and NSCL. Cnstamp provides a complete range of LVD-type press brake tooling, engineered for accurate bending and stable performance in sheet metal fabrication. Our tooling follows established standards for LVD systems, so punches and dies fit reliably in LVD press brakes and perform consistently in production. Whether for standard parts or custom requirements, our tooling supports precise bend angles and long service life.

Material and Hardening Process

The base material for our LVD-type tooling is high-quality alloy steel (such as 42CrMo), chosen for strength and ability to resist wear. After forging and rough machining, tools undergo controlled heat treatment. The main body of the tooling is hardened to appropriate hardness levels, while the working surfaces can be hardened further with high-intensity laser quenching where needed. This ensures the tooling resists abrasion, withstands high bending pressure, and retains shape after long cycles of use.

Standard and Special Tooling Types

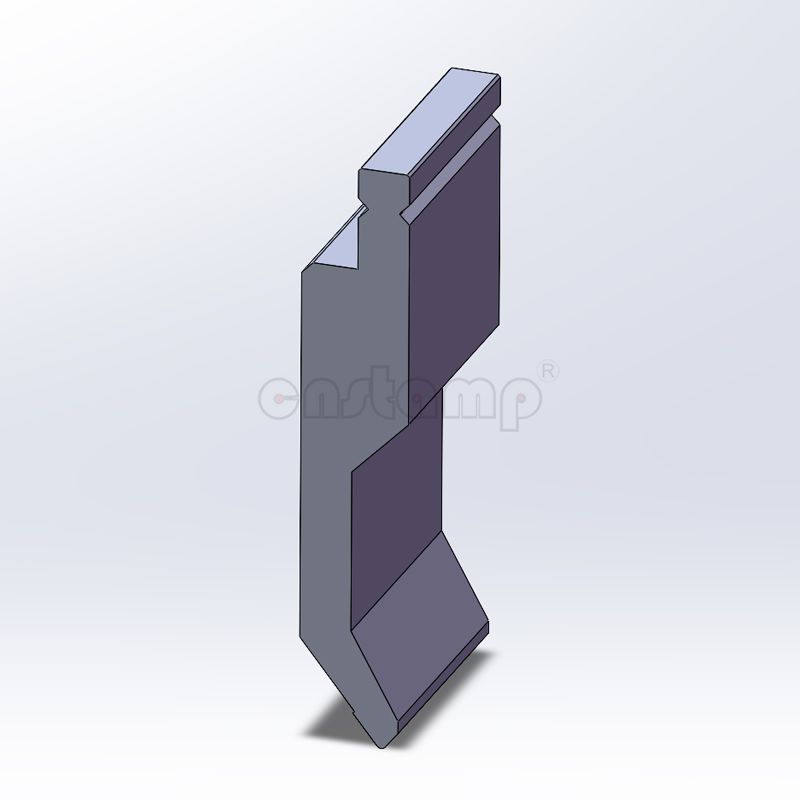

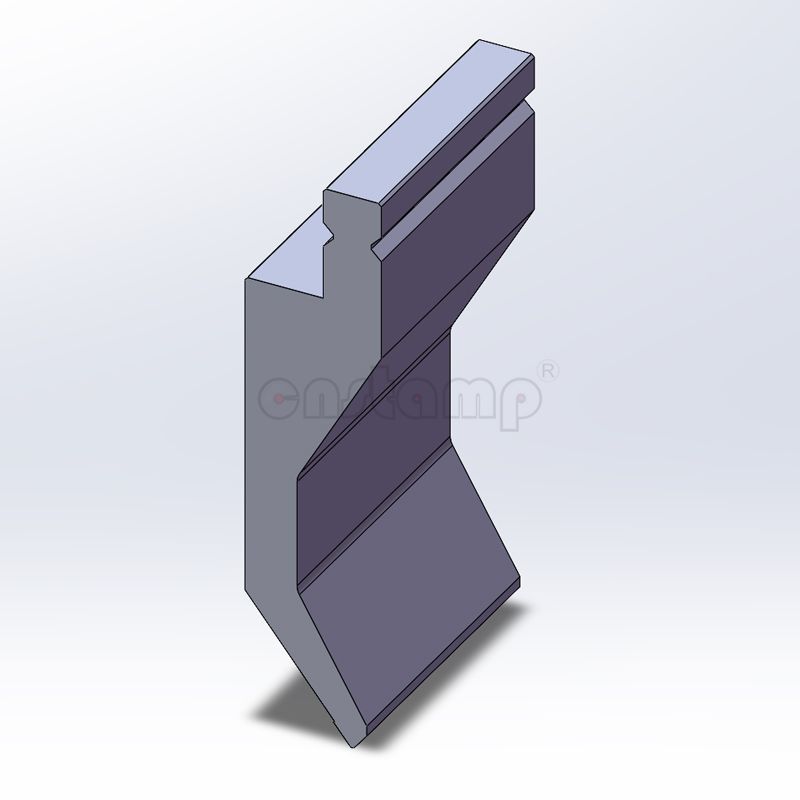

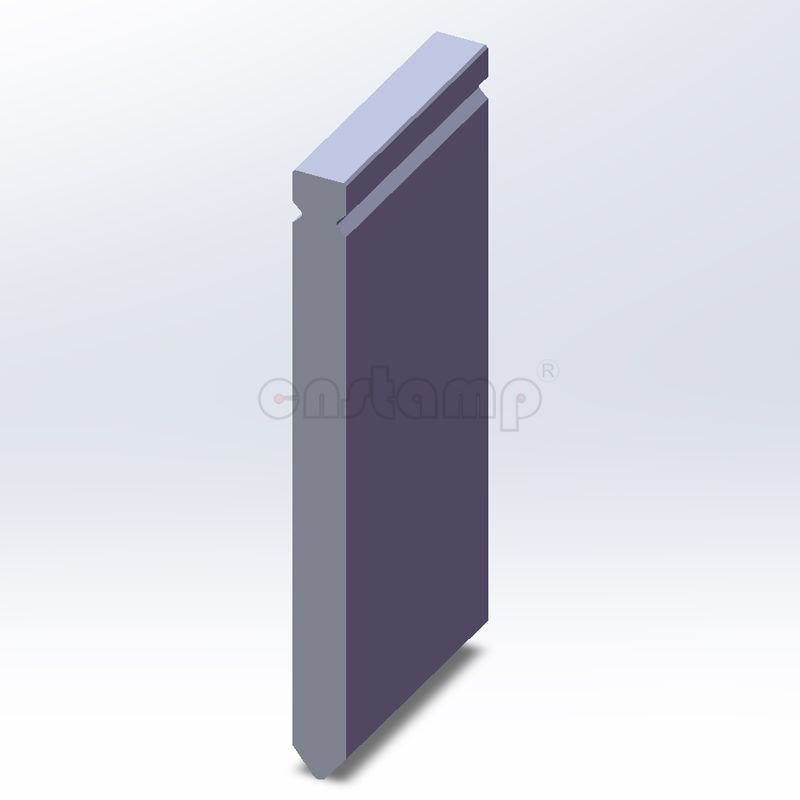

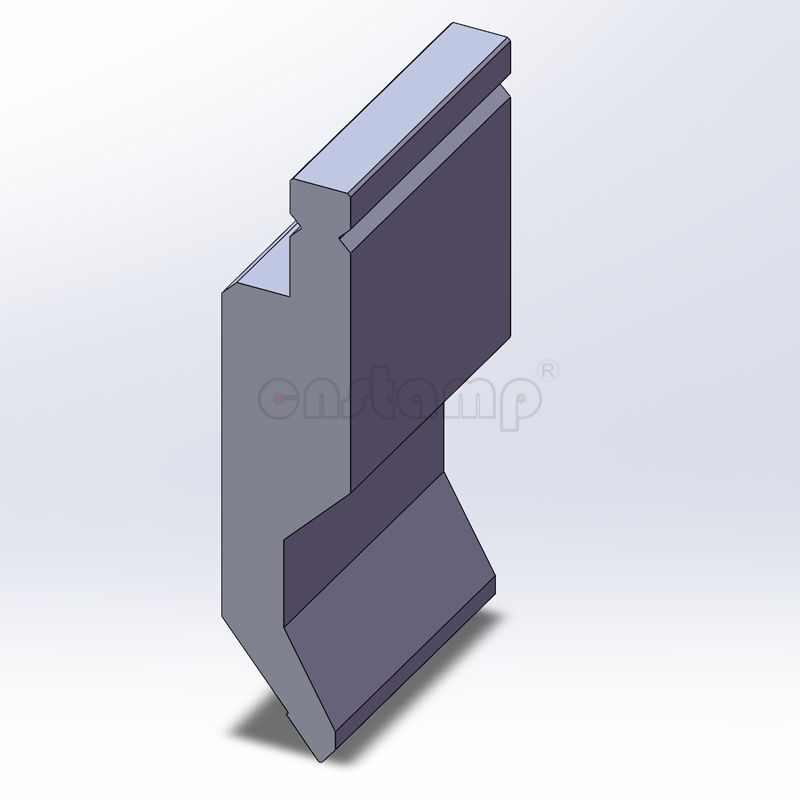

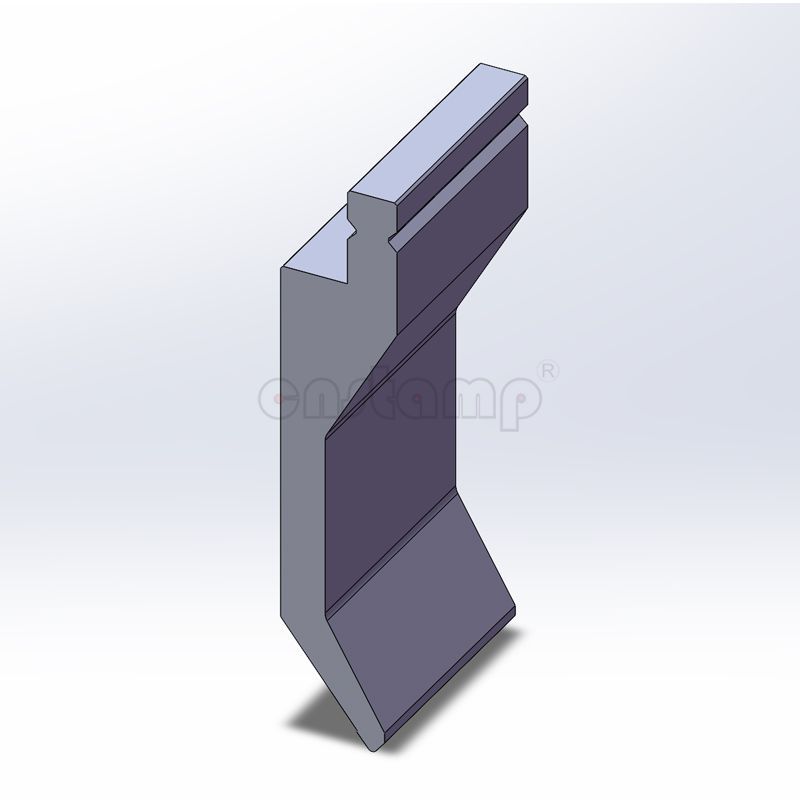

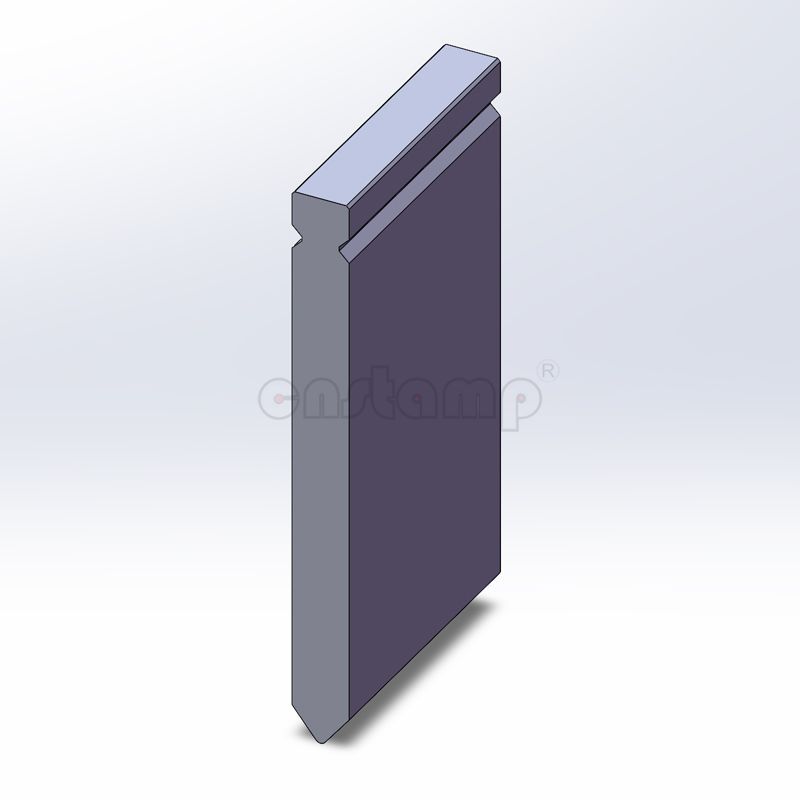

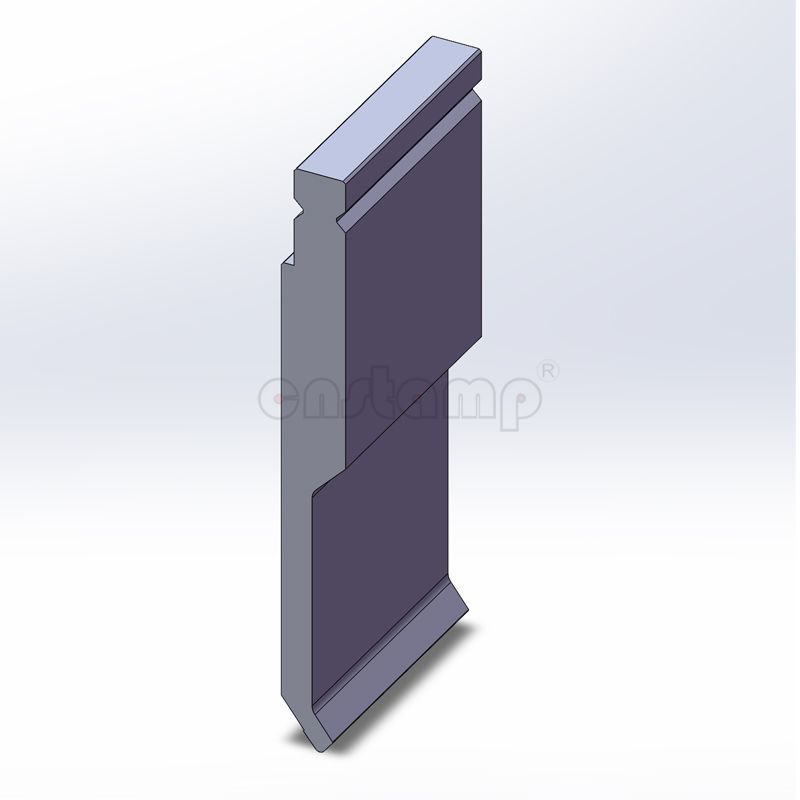

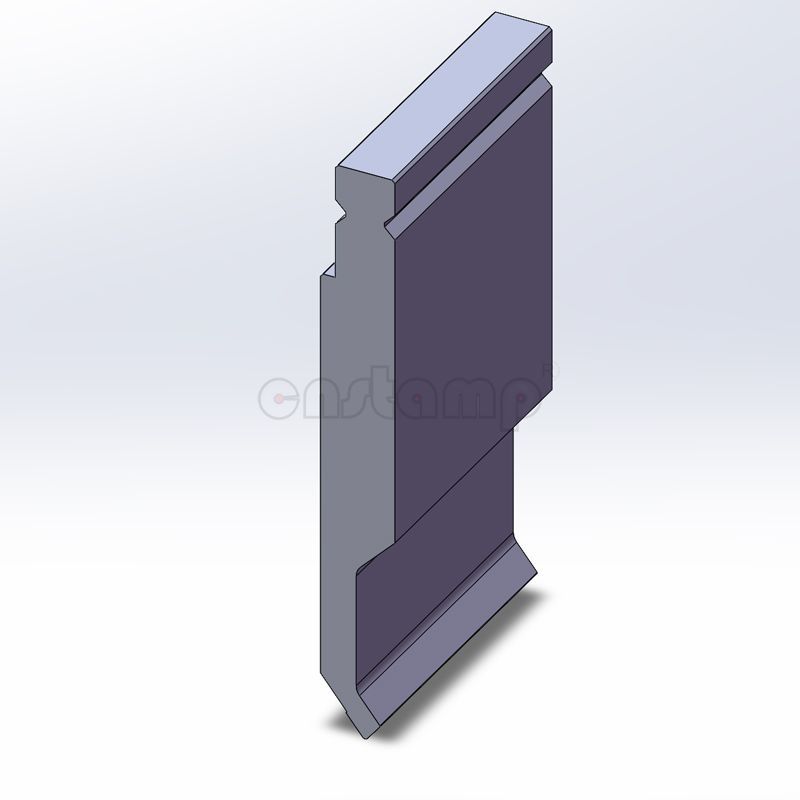

● Standard punches with different angles such as 15°, 30°, 45°, 88° and 90°, to support a wide range of bend requirements.

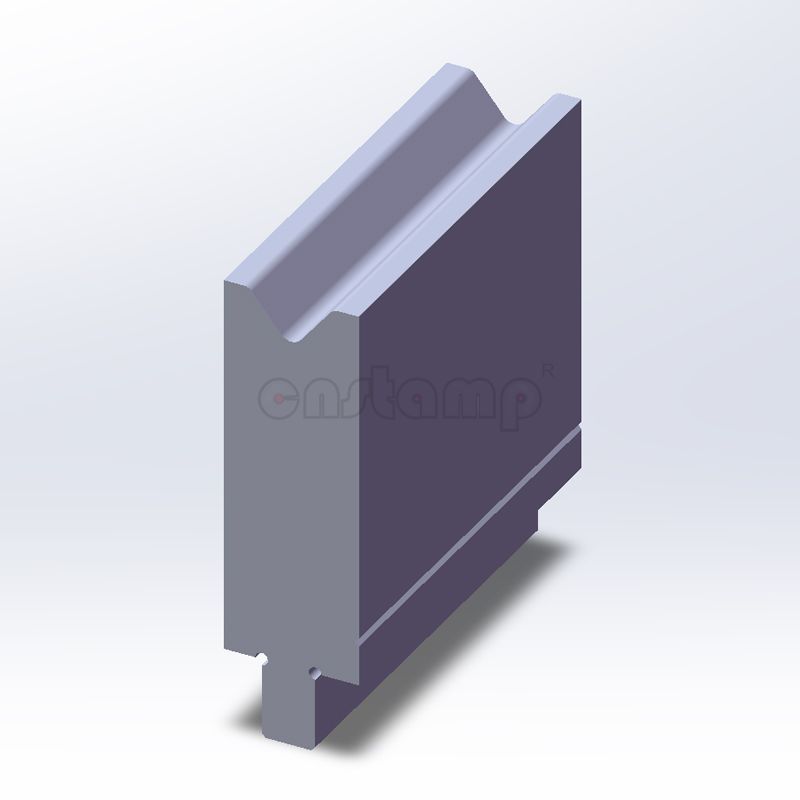

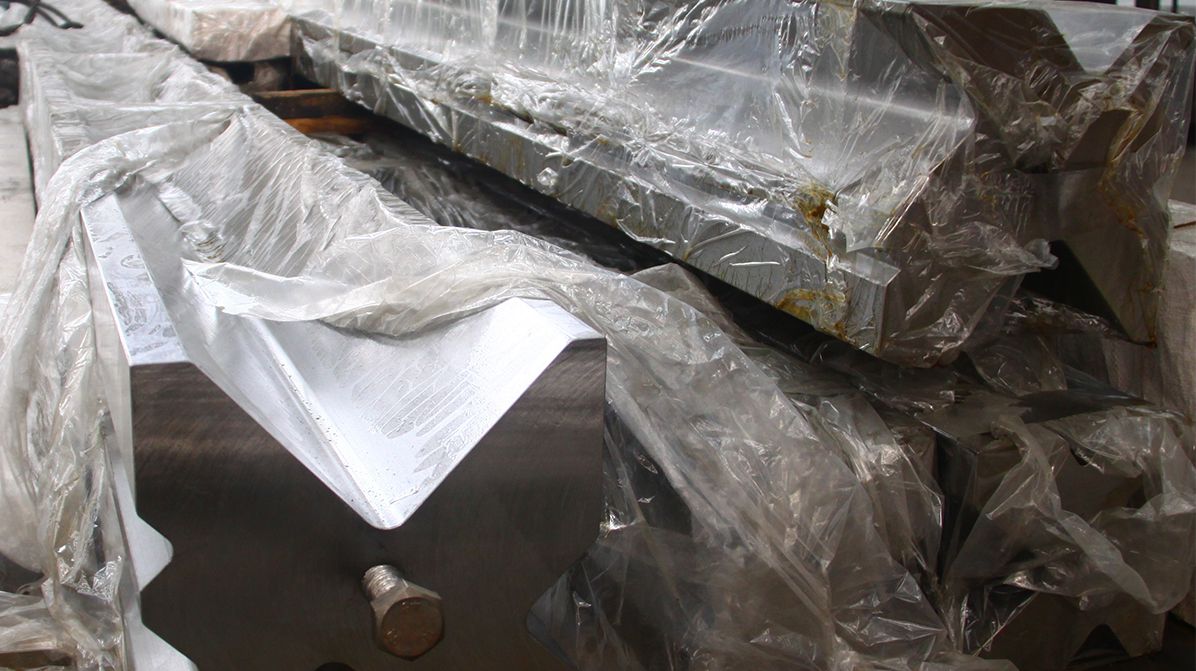

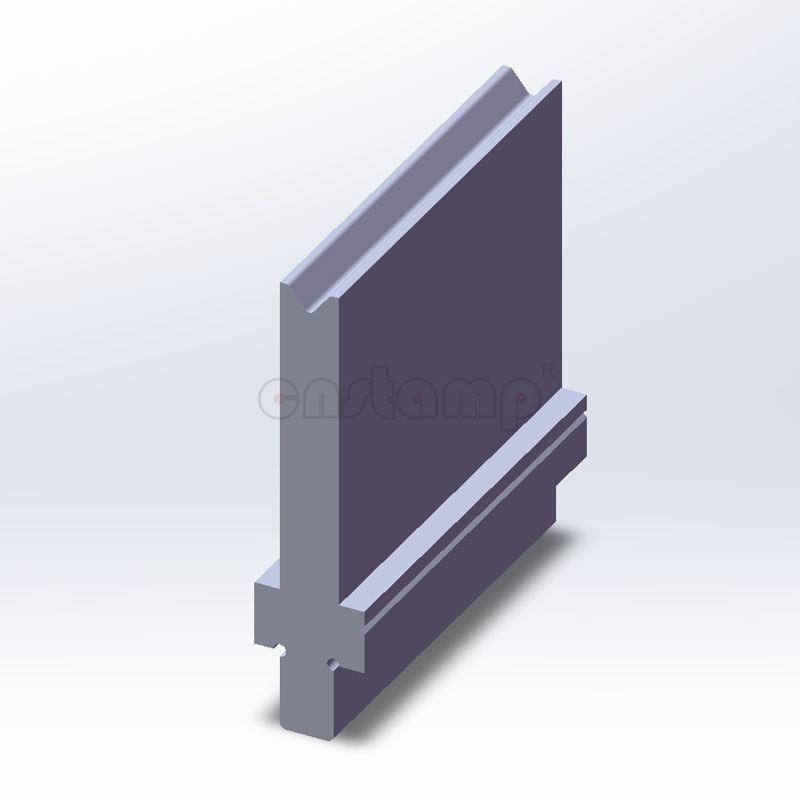

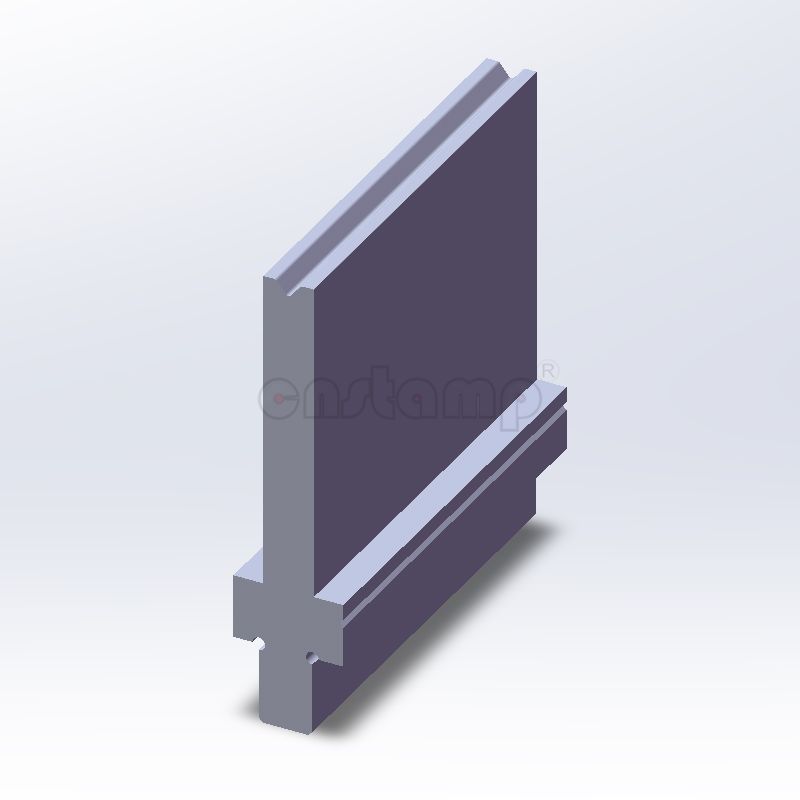

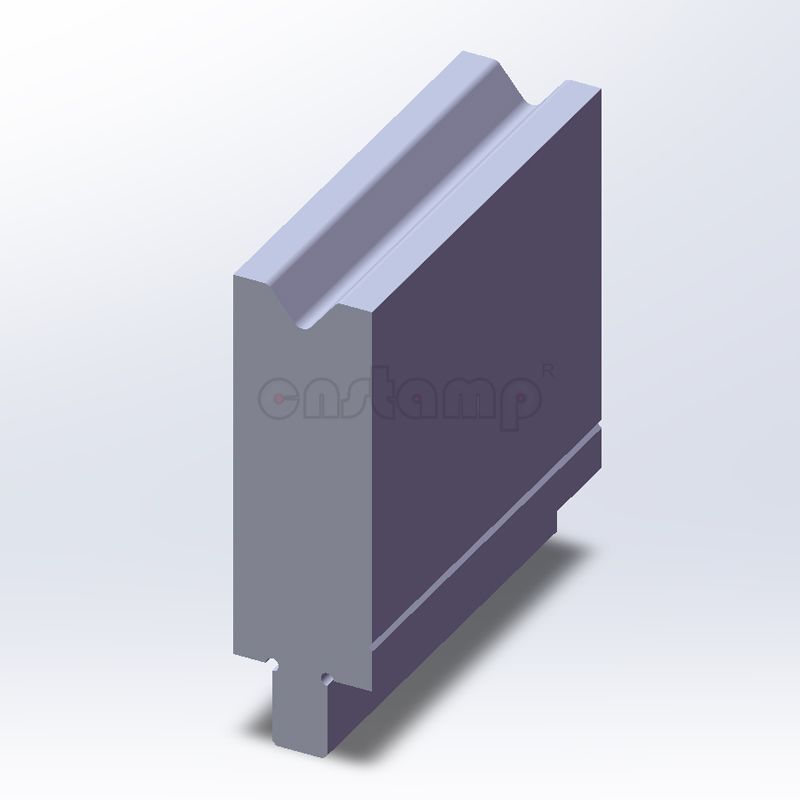

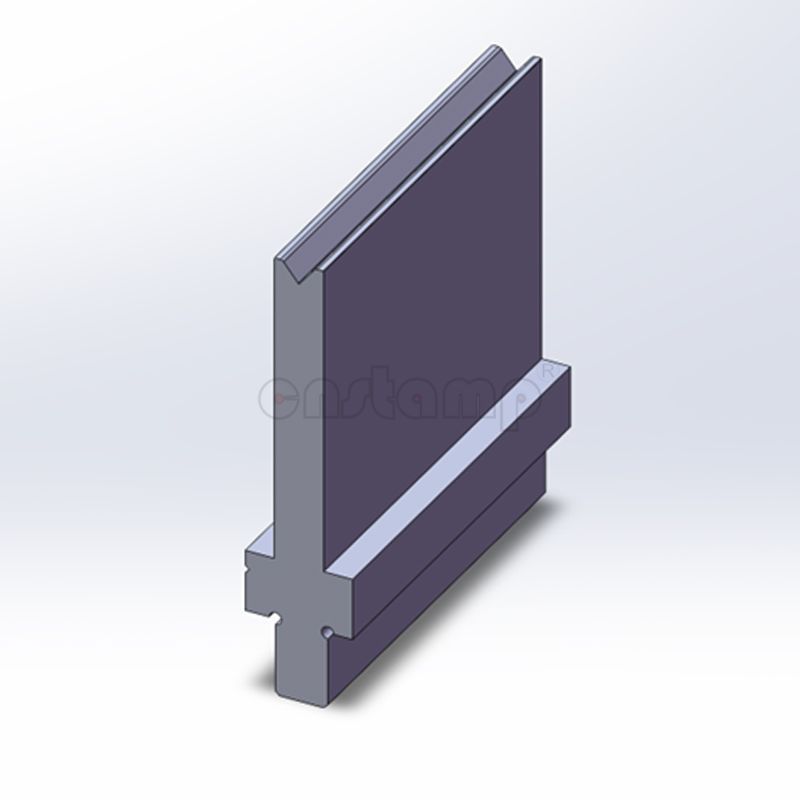

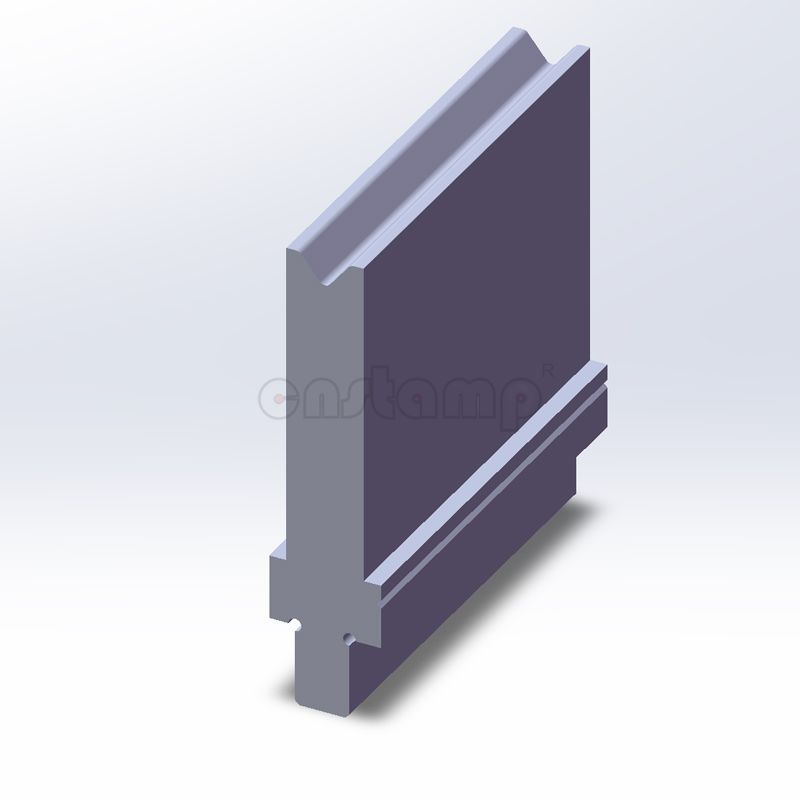

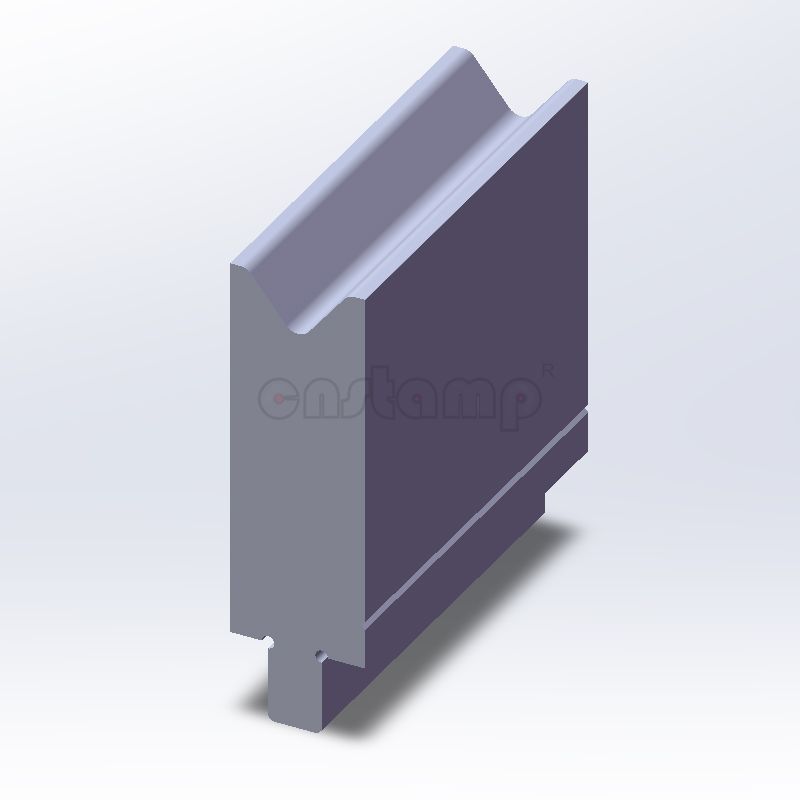

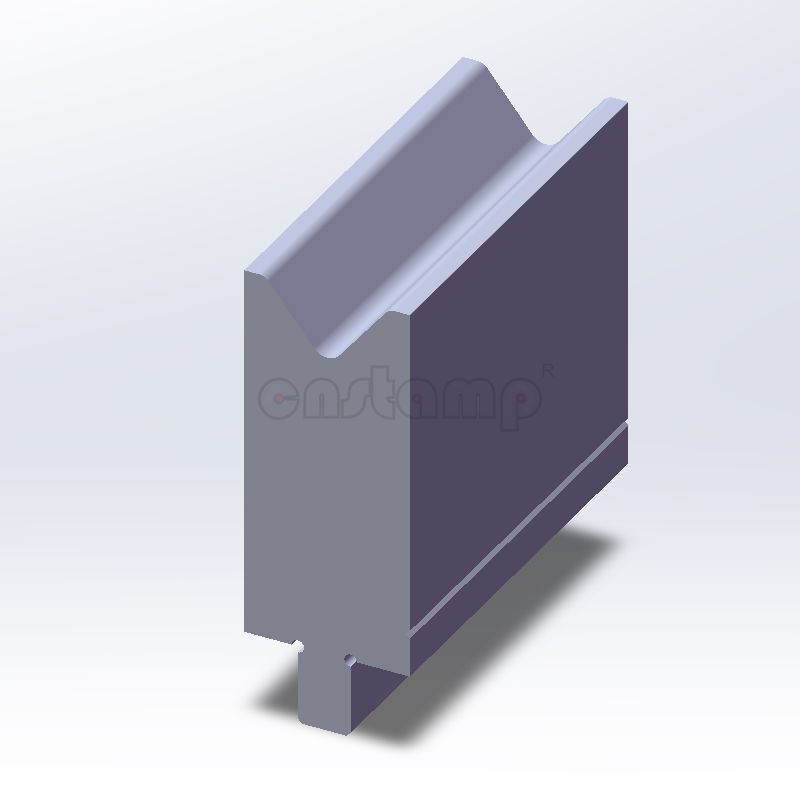

● Dies with single groove or double groove designs, with V-openings sized to match sheet thickness and bending force needs.

● R-groove and flattening dies for bends that require controlled radius or compression features.

● Special profiles such as U-type or custom shapes based on part drawings.

● Segmented tooling sets designed for multi-angle bending and flexible setups.

Standard tooling segments are offered in common lengths (for example 1000 mm and 550 mm with varied segment pieces) to allow combinations that match part width and press brake table length.

Segmentation and Combination for Flexible Use

LVD-type tooling from Cnstamp uses segmented design to handle different bending lengths and production layouts. Segments can be combined to match the workpiece width, making it easier for operators to install and handle tooling of various sizes. Segmentation also makes it possible to tailor tooling length and arrangement to specific jobs without relying on a single long tool, which simplifies handling and reduces the risk of misalignment during setup.

Guidance for Tooling Selection

Selecting the right LVD-type tooling involves clear information about the bending task. Provide the following details when choosing or requesting tooling:

● Part drawings showing final shapes and bend radius, with inner and outer tolerance ranges.

● Material type and plate thickness to determine appropriate V-opening sizes and punch profiles.

● Requirements regarding surface quality, especially where scratches or marks must be avoided.

● Press brake model, tonnage, and table length to ensure tooling is suitable for the machine.

● Any special requirements related to precision or complex bending operations.
