Thick Turret Tooling

Cnstamp provides high-performance thick turret tooling, specifically designed for heavy-duty applications and thicker sheet metals. Our tooling solutions are engineered for precision, durability, and efficiency in demanding environments. These tools are perfect for high-speed production and applications requiring robust tooling systems capable of handling thicker materials.

Types of Thick Turret Tooling

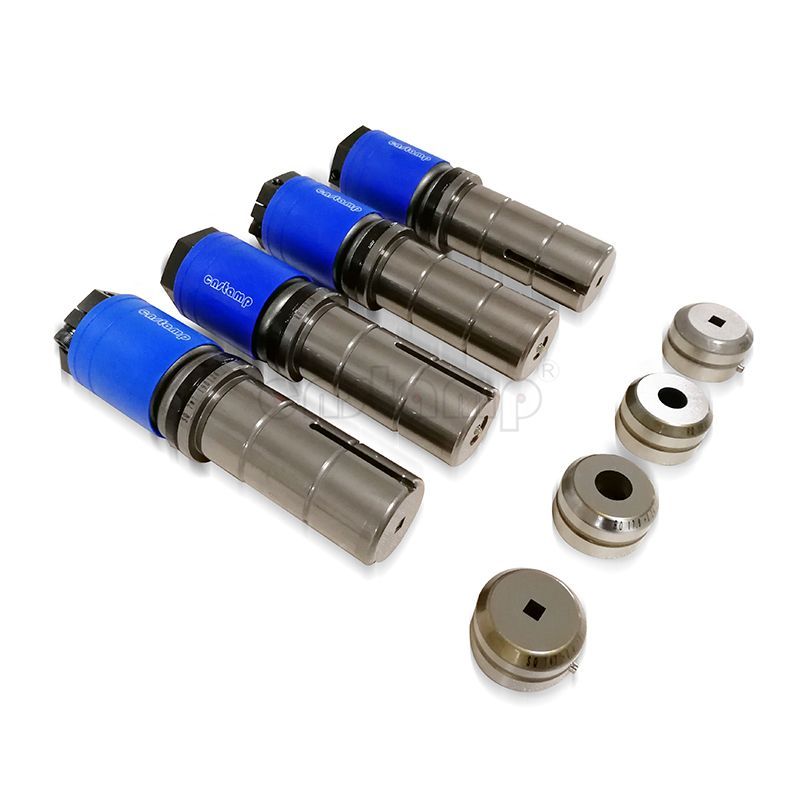

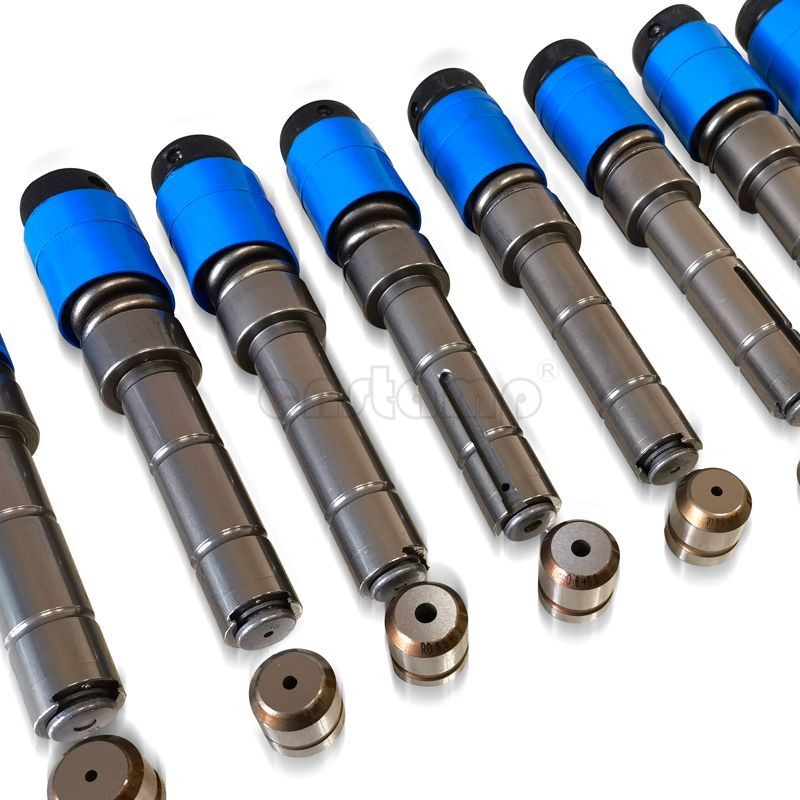

● Standard Punches: Available in Round, Square, Rectangle, Oblong, and other shapes for general-purpose punching.

● Forming Tools: Used to create complex shapes such as embossed features, raised edges, and other specialized forms.

● Custom Punches and Dies: Tools designed to meet specific requirements, including unique shapes and sizes for specialized production needs.

● Multi-Station Tooling: Capable of performing multiple punching operations in a single stroke, improving operational efficiency by reducing tool changes and cycle times.

Quality Control & Performance Testing

● Material Selection: We use premium tool steels with hardness levels up to HRC 58-62, ensuring optimal wear resistance and tool longevity.

● Precision Machining: Our tooling is machined to ±0.02 mm (0.0008 in) tolerances for consistent, reliable results in all punching operations.

● Heat Treatment: Tools are heat-treated to enhance hardness and durability, providing up to 30% longer tool life under high-speed conditions.

● Inspection: Every tool is inspected using CMM accuracy of ±0.01 mm (0.0004 in), ensuring dimensional consistency and performance.

Compatible with turret punch machines: Amada, LVD, Finn-power, JFY, Yawei
