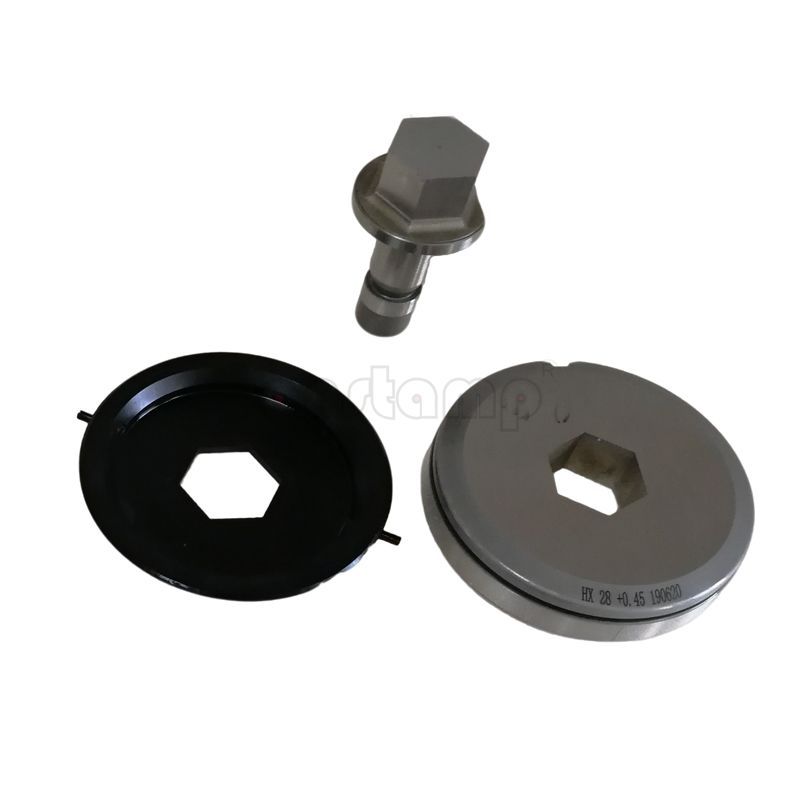

Trumpf Turret Punch Tooling

Trumpf Turret Punch Tooling is engineered for high-precision, high-volume sheet metal punching. Each tool undergoes strict quality control to ensure consistent performance and extended service life.

Key Features

High Precision: Hole diameter tolerance within ±0.02 mm, ensuring exact alignment across multiple punches.

Durable Tool Steel: Made from hardened alloy steel (HRC 58–62), providing wear resistance for over 500,000 punching cycles.

Wide Compatibility: Compatible with all standard Trumpf CNC turret punch machines; supports punches from 3 mm to 40 mm in diameter.

Variety of Punch Shapes: Includes round, square, rectangular, and custom geometries; corner radii tolerance ±0.05 mm.

Reduced Downtime: Tool life monitoring shows less than 5% replacement frequency per 100,000 cycles.

Applications

Automotive panels (tolerances critical for assembly lines)

Electrical enclosures (metal thickness 0.5–3 mm)

HVAC components (sheet thickness up to 6 mm)

Industrial machinery parts (hole positioning accuracy ±0.02 mm)

Metal furniture (high-volume repetitive punching)

Customization Options

Punch diameters from 3 mm to 40 mm

Special coatings to reduce wear by 30–50%

Custom geometries for unique production requirements

Compatible with turret punch machines: Trumpf
