Custom Turret Punch Tooling

For all types turret punch machines: Amada, Trumpf, Lvd, Finn-power, Weidmann

Cnstamp provides precision-engineered turret punch tooling for CNC turret punch presses. We specialize in delivering high-quality punches, dies, strippers, and guides, ensuring optimal performance in sheet metal applications.

CNC turret punch presses are equipped with a rotating turret that holds a variety of punching tools in A, B, C, D, and E stations (thick turret system). These tools can include:

● Standard Shapes: Round, Square, Rectangle, Oblong, and Custom-Shaped Tools.

● Forming Tools: Used to create more complex shapes in sheet metal.

The turret quickly indexes to select the appropriate tool for each punching operation, ensuring multi-hole punching in a wide range of diameters in a single stroke. Precision alignment of the punch and die is essential to maximize tool and machine life.

Types of Punch Tools

● Standard Punches: Round, Square, and Rectangle shapes.

● Forming Punches: For complex shapes such as embossed or raised features.

● Custom Punches: Tailored to meet specific project requirements.

Types of Dies

Cnstamp offers precision dies to complement our punch tools:

● Stamping Dies: For precise hole creation in various sheet metal thicknesses.

● Forming Dies: Used for creating shaped or formed features on the punched material.

● Multi-Station Dies: Accommodate multiple punching actions in a single operation.

Turret Punch Press Tooling Advantages

● Versatility: Suited for a wide range of applications, from simple hole punching to complex forming.

● Adjustable Settings: Height, speed, and stroke adjustments to optimize for different material types and thicknesses.

● Built-in Overload Protection: Protects your machine and tooling from damage, ensuring longer tool life.

● Simple Structure: Pneumatic innovations and a straightforward design minimize machine wear and reduce maintenance costs.

● Cost-Effective: Lower tool costs with our high-quality steel and durable design, providing you with both performance and value.

Tooling Systems

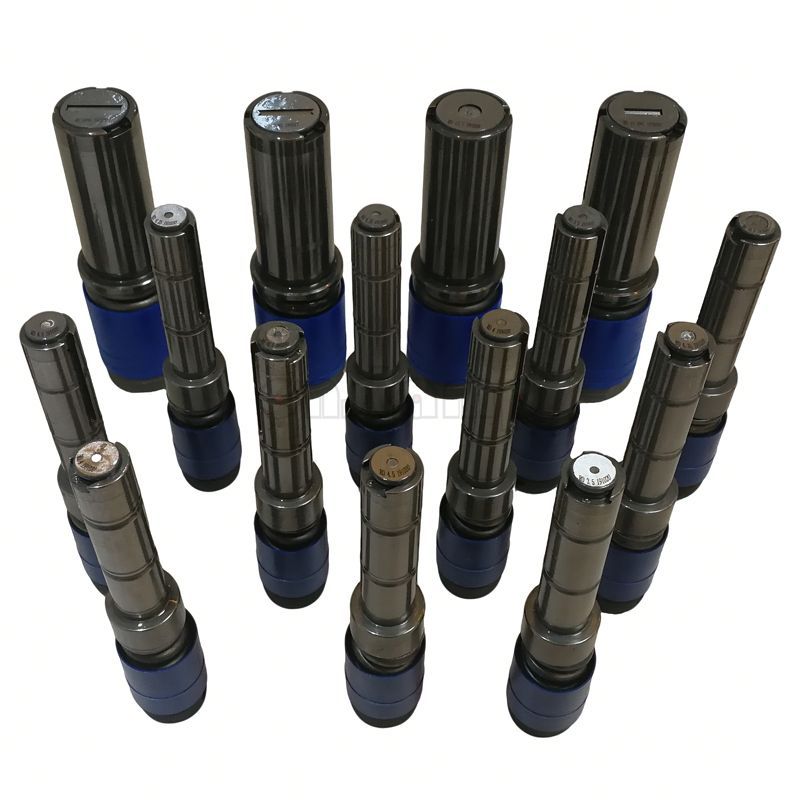

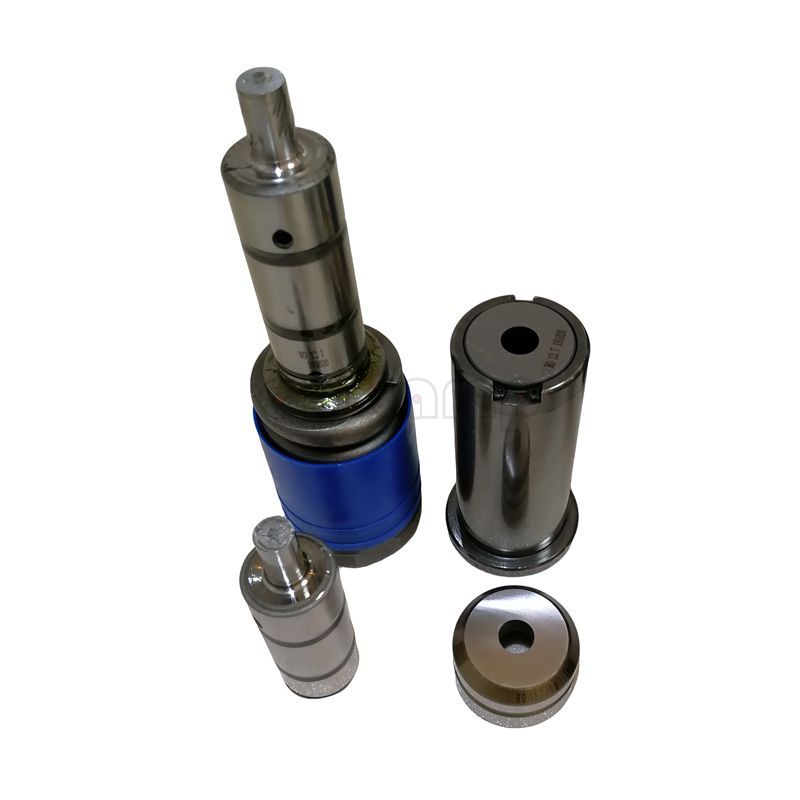

● Thick Turret Tooling: Designed for heavy-duty punching and high-speed applications.

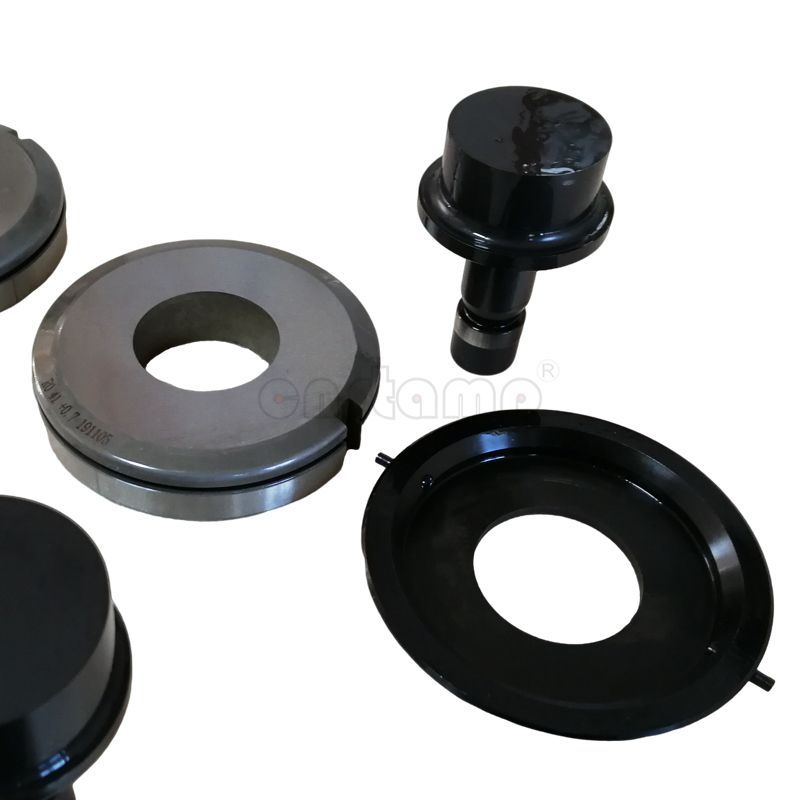

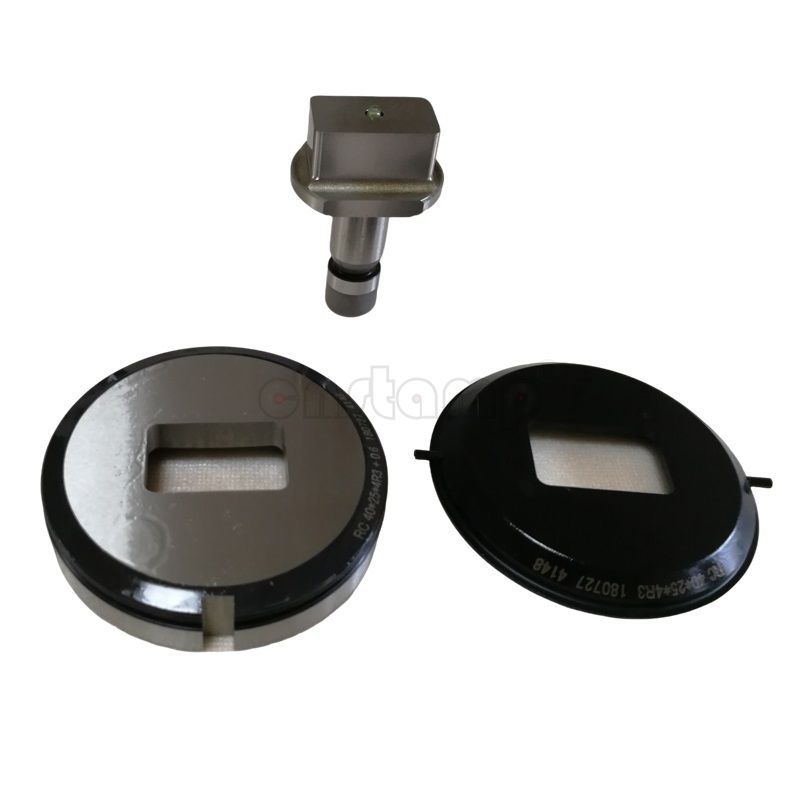

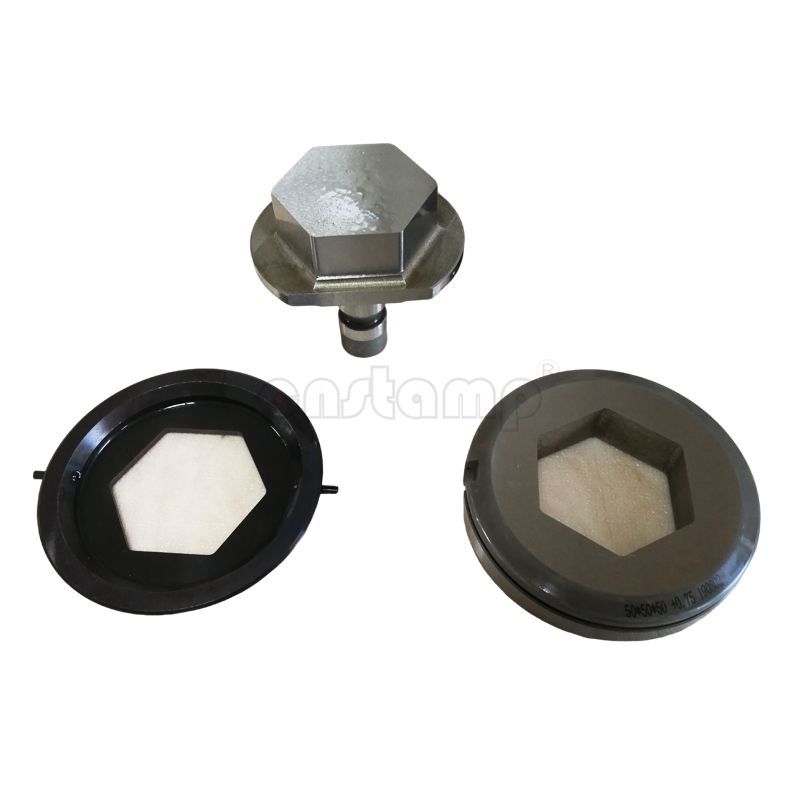

● Thin Turret Tooling (Trumpf Style): Compatible with thinner turret systems, offering a lightweight, yet highly effective solution.

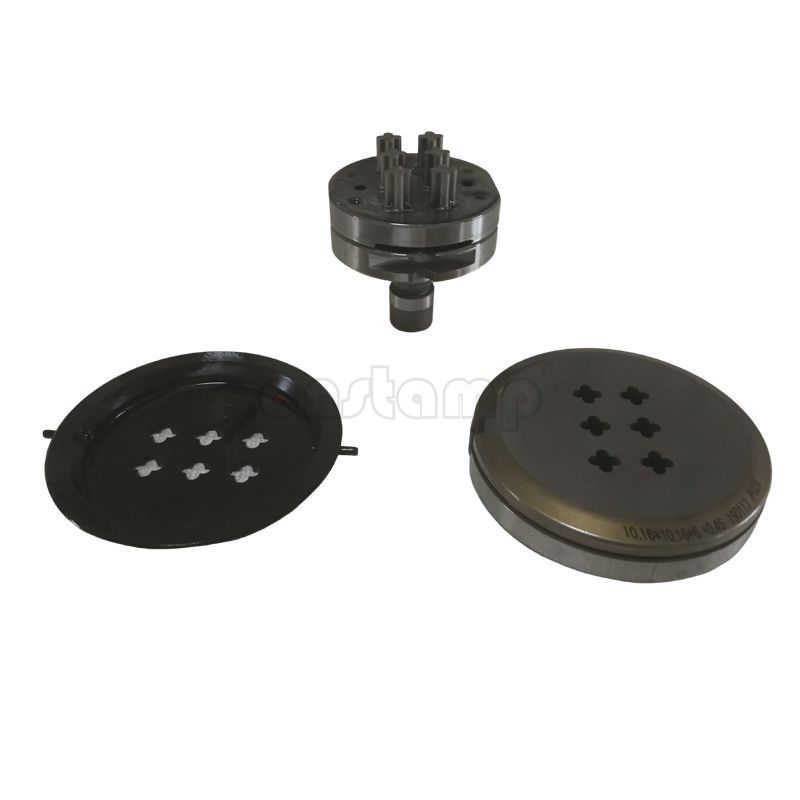

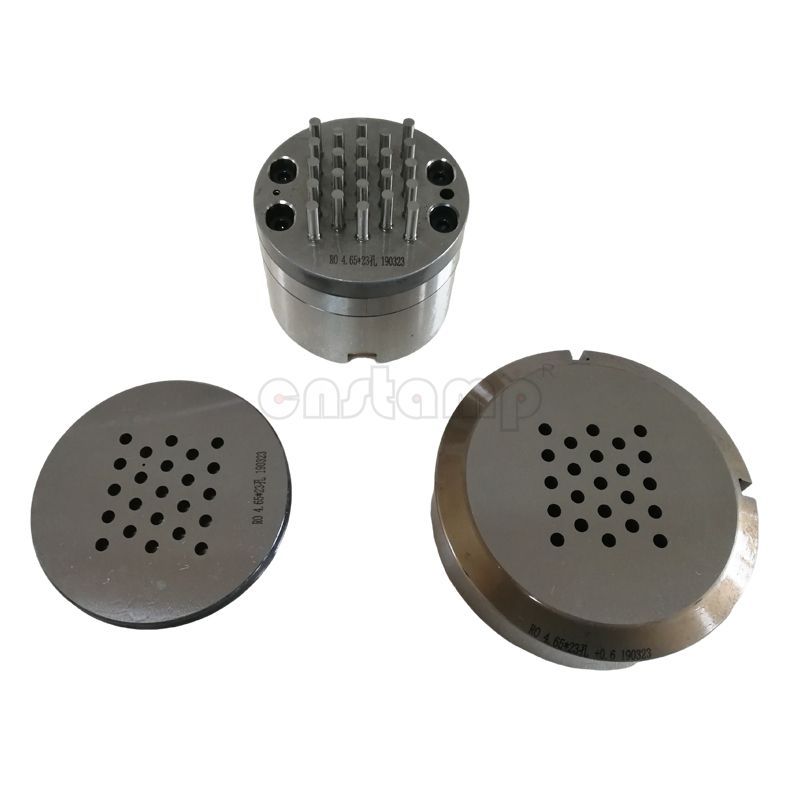

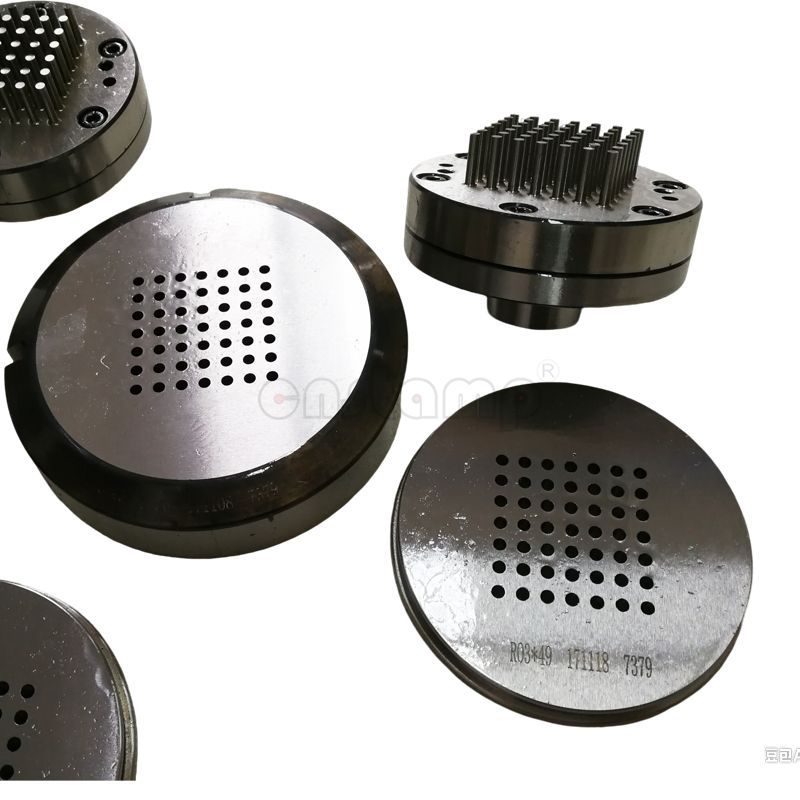

● Cluster Multi-Tools: For punching multiple holes or shapes at once, increasing productivity.

Quality Assurance & Manufacturing Expertise

● Tool Steel Selection: We use premium tool steels with hardness up to HRC 58-62, ensuring excellent wear resistance and durability.

● Precision Machining: Tools are machined to ±0.02 mm (0.0008 in) tolerances using advanced CNC processes for reliable and accurate results.

● Heat Treatment: Tools undergo a controlled heat treatment process at 800°C to 1050°C (1472°F to 1922°F) for enhanced strength and up to 30% longer tool life.

● Quality Control: Every tool is inspected with CMM accuracy of ±0.01 mm (0.0004 in) and tested for performance to meet industry standards for precision and reliability.
